NB! bildet viser LA-4 med link ut. Dette artikkelnummeret gjelder LA-3-JU uten link ut. NB! brokoblet versjon.
Like its big brother...
the 'small' SP-BOXX, too backs on proven components from HICON and NEUTRIK - teamed with SYSBOXX-inside and the same robust external design.

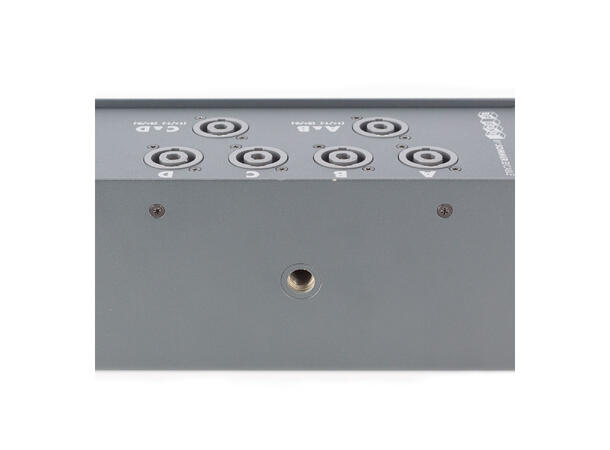

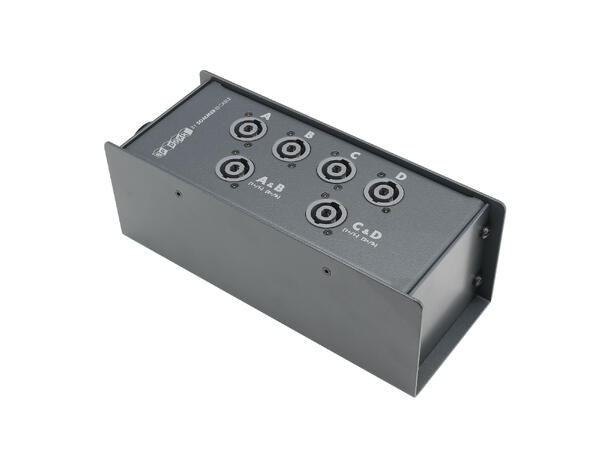

Here again we habe three NL4 sockets for each channel pair: one fully wired (1+/1-/2+/2-) and two partially wired (1+/1-).

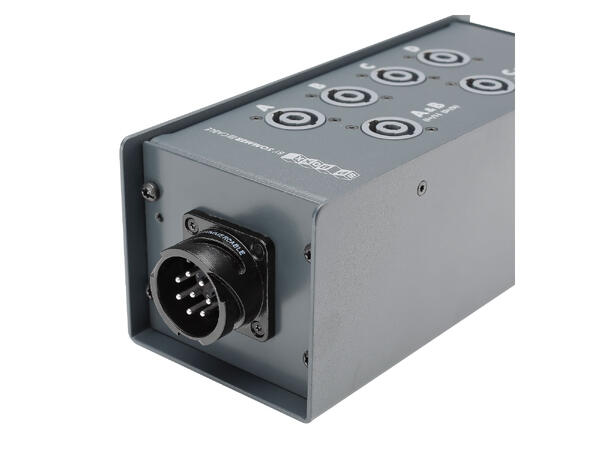

As multipins we took the 8-pole HICON PA-COM (compatible with the widespread CA-COM 8-pole) or the NEUTRIK NL8.
The SP-BOXX is available with multipin input pls input and link-through multipin.
This LA-3-JU-version contains internal jumpers on each speakON-connector in the top-row which connects 1+ with 2+ and 1- with 2-. Perfect for e.g. subwoofer cabling which are mostly connected on 2+/2-.
Specifications:
| EAN | 4049371314343 |
|---|
| Brand | Sommer cable |
|---|
| Application | Speaker System |
|---|
| Connector-Brand | HICON |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Type | NL4 |
|---|
| Type | LK8 |
|---|
| Type (detailed) | NL4/2 |
|---|
| Type (detailed) | LK8MP |
|---|
| Available since | V07.1 |
|---|
