Owing to the partner cooperation with NEUTRIK the NL4FX Speakon connector is offered exclusively for Sommer cable with a labelling option which may be changed anytime (6 mm high e.g. for P-Touch).
The new NL4FX-SOM connector with a transparent ring will therefore replace the HICON HI-SPC4 loudspeaker
connector.
The NL4FX-SOM-D is either available ready-made with our cable series Meridian and Elephant or as bulk material for our major customers in packing units of 100 pcs.

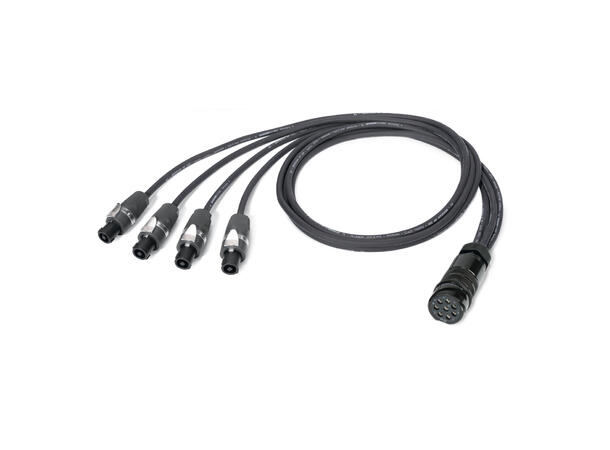

Configuration:
10,00 m Speaker Cable Meridian Mobile SP225; 2 x 2,50 mm²; PVC Ø 7,80 mm; black (425-0051)
1 x HICON CA-COM Rund-LK, arrangement 22-23, Contact Size 12, 8-pole , metal-, Cable socket, Bajonet, black (HI-LK008FVR)
4 x NEUTRIK SpeakON, 2-pole , plastic-, screw terminal w/o wire protection-female connector, silver plated contact(s), straight, max. 4 mm², silver-grey (NL2FX-SOM-D)
Specifications:
| Length ft | 8,2 |
|---|
| Article number | METW-04/00-0250 |
|---|
| EAN | 4049371116657 |
|---|
| In | 04 |
|---|
| Out | 00 |
|---|
| Length m | 2,5 |
|---|
| Brand | Sommer cable |
|---|
| Application | Speaker System |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Connector-Brand | HICON |
|---|
| Cable | 2 x 2,5 mm² |
|---|
| Cable | SC-MERIDIAN |
|---|
| Type | multipin |
|---|
| Type | Speakon |
|---|
| Type (detailed) | LK 8-pole female |
|---|
| Type (detailed) | Speakon 4-pole |
|---|
