Configuration:

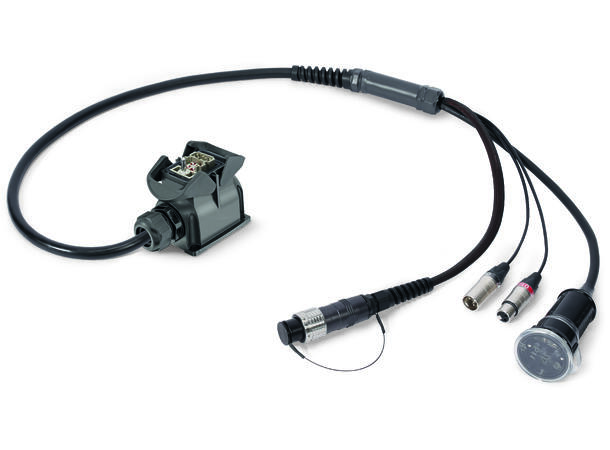

1,20 m SC-OCTOPUS-HYBRID 443 PUR; fiber: 4 x 50/125 µm; audio: 2 x 2 x 0,22 mm²; power: 3 x 2,50 mm²; PUR Ø 16,20 mm; black (591-4431)
1 x +HAN-LWL443MA
1 x HICON Push-Pull 4 x LC, metal-, Patch-male connector, straight, silver (HI-FIBER4-MC)
1 x Mennekes SCHUKO, 2-pole , plastic-, screw-type-female connector, nickel plated contact(s), straight, max. 2,5 mm², black (SCHU-FC230/16PSW)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), straight, nickel coloured (NC3FXX)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, nickel coloured (NC3MXX)
Specifications:
| Length ft | 3,94 |
|---|
| Article number | OH85-L01/01-0120 |
|---|
| EAN | 4049371271165 |
|---|
| In | 01 |
|---|
| Out | 01 |
|---|
| Length m | 1,2 |
|---|
| Article number | OH85-L |
|---|
| Brand | Sommer cable |
|---|
| Application | Digital Fiber Distribution System |
|---|
| Connector-Brand | HARTING |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Connector-Brand | HICON |
|---|
| Cable | Octopus Hybrid 443 |
|---|
| Type | XLR |
|---|
| Type | fibre |
|---|
| Type | multipin |
|---|
| Type | Schuko |
|---|
| Type (detailed) | HI-FIBER4-MC |
|---|
| Type (detailed) | Schuko female |
|---|
| Type (detailed) | HAN-ECO male, assembly housing w. 2 clamps |
|---|
| Type (detailed) | XLR 3-pole female |
|---|
| Type (detailed) | XLR 3-pole male |
|---|
