For sophisticated live sound technology we top off...
our systems with TOURLOCK round connectors which, besides their robust and compact design, feature high mating cycles and a superb water tightness (IP67). These are compatible with all commonly available military grade CIR-LK connectors. The pins are gold-plated throughout and the bayonet catch ensures a sealed
connection with a hight fit.
The 19“ housing is 94 mm deep. For the XLR equipping we use locking metal panel-mount connectors from HICON or NEUTRIK. As a standard, the 19“ systems are fitted with a Tourlock, but can optionally be ordered with a second multipin connector as well.
Here TOURLOCK1 (FOH) is wired in parallel with TOURLOCK2 (monitor). The returns are only connected to the FOH output. All systems have a separate grounding. Our standard wiring schemes comply with the customary norm. These can be found under www.sommercable.com/support.
For our 19“ systems with transformer technology we normally use 1:1 transformers with MU metal shielding for optimum interference protection and a max. input of +12 dBu.
Here multipin 1 (FOH) receives the signals directly from the in-/outputs, which allows 48 V phantom power supply from the FOH console, whereas multipin 2 (monitor) receives the transformerless signals. For an advanced signal distribution, e.g. to OB vans, we can also offer a third multipin connector with 1:1+1 transformers as a chargeable custom version.
Advantages:
- 19“ rack, floor or wall mount
- Seperate Grounding
- TOURLOCK connectors with high water resistance (max. depth 10 m for 12 h)
- High rigidity and mating cycles (> 2000)
- Gold-plated contacts and bayonet catch without play
- Universal compatibility
Application:
- Professional event technology
- Indoor and Outdoor Installation
- Ambitious rack, floor or wall installations
Configuration:

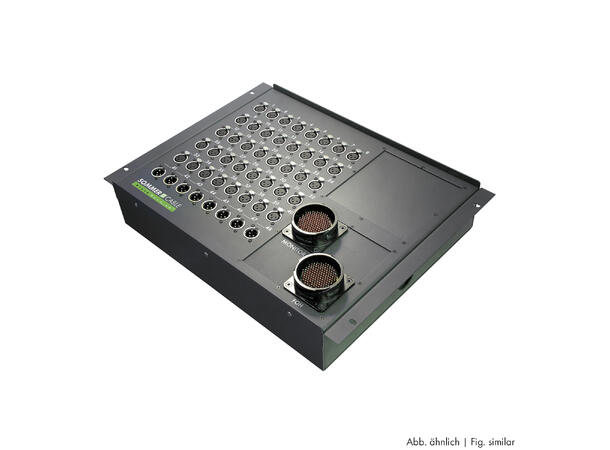

1 x Sommer cable Stagebox empty casing, 19“ BB-SERIES, 40 holes/1 x multipin panel hole, 6 HE, width: 483 mm, anthracite RAL7016 (BB1940N)
32 x HICON XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), Type D M3, black (HI-X3DF-M3)
8 x HICON XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), Type D M3, black (HI-X3DM-M3)
1 x HICON Round LK, arrangement 40A-150, size 18, 150-pol , metal-, Panel connector, Bajonet, black (HI-LK150MP)
1 x HICON Round-LK 85 / LK 150 male (CIR40), Cover cap, Bajonet, black (HI-LKCAP-M85)
Specifications:
| Article number | BXWN-M32/08 |
|---|
| EAN | 4049371113199 |
|---|
| In | 32 |
|---|
| Out | 08 |
|---|
| Article number | BLACKBOXX19-LK |
|---|
| Application | BLACKBOXX 19' -> Round LK-connector |
|---|
| Additional function | seperate grounding |
|---|
