Configuration:
50,00 m Transit MC 3231 HD-SDI; video: 3 x 1,20/5,00; audio: 2 x 2 x 0,15 mm²; power: 3 x 2,50 mm²; 1 x CAT.7; Soft-PVC Ø 24,00 mm; black (600-2791)

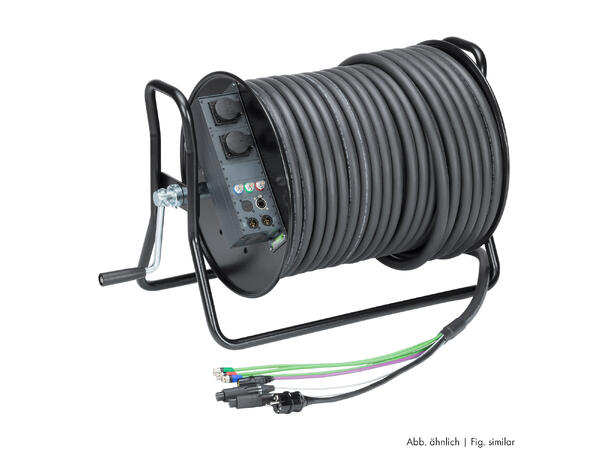

1 x SCHILL Kabeltrommel, HT582-SW, core: 320 mm, thread width: 170 mm, metal (HT582-SW)
2 x #SCHU-FP230/16DS
3 x HICON BNC 3G-SDI crimp-female connector 1.2/5.0, thread 1/2' (BNC1.2/5.0FEH)
2 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, gold plated contact(s), Type D, chrome-plated (NC3MDLX-B)
1 x NE8FDV-YK-D
1 x Mennekes SCHUKO, 2-pole , plastic-, screw-type-male connector, nickel plated contact(s), straight, max. 2,5 mm², black (SCHU-MC230/16PSW)
3 x NBNC75BWU13-D
1 x HIROSE RJ45 CAT.6a, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6A-SW)
1 x NEUTRIK Protective sleeve for RJ45 Connector (NE8MX1-B)
2 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, gold plated contact(s), straight, chrome-plated (NC3FM-C-B)
Specifications:
| Length ft | 164,04 |
|---|
| Article number | HDAQH3231-5000 |
|---|
| EAN | 4049371114653 |
|---|
| Length m | 50 |
|---|
| Article number | HDAQH3231 |
|---|
| Brand | Sommer cable |
|---|
| Application | MADI Connection systems |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Cable | TRANSIT MC 3231 HD-SDI |
|---|
| Additional function | on SCHILL HT series cable reel with chassis sockets in the core |
|---|
| Type | XLR |
|---|
| Type | BNC |
|---|
| Type | RJ45 |
|---|
| Type | Schuko |
|---|
| Type (detailed) | Ethercon male |
|---|
| Type (detailed) | XLR 3-pole male |
|---|
| Type (detailed) | Schuko socket |
|---|
| Type (detailed) | BNC connector |
|---|
| Type (detailed) | Schuko cable connector male |
|---|
| Type (detailed) | Ethercon female |
|---|
