Miscellaneous:
- Cross-section: 3 x 1,5mm²
Configuration:
70,00 m SC-Monolith 2; power: 3 x 1,50 mm²; DMX: 2 x 0,14 mm²; PVC Ø 12,30 mm; black (500-0051-2)

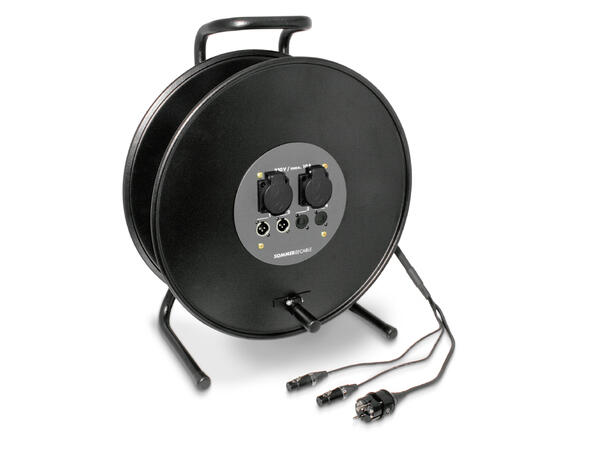

1 x SCHILL Kabeltrommel, HT480-SW, core: 178 mm, thread width: 142 mm, metal (HT480-SW)
2 x #SCHU-FP230/16DS
2 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), Type D M3, nickel coloured (NC3MDLX-M3)
1 x Sommer cable Front panel with 2 Schuko- or CEE3-blue holes + 4 D-holes (XLR, etc.) for GT310, HT and SK-Modelle, anthracite RAL7016 (RUND0204)
1 x Mennekes SCHUKO, 2-pole , plastic-, screw-type-male connector, nickel plated contact(s), straight, max. 2,5 mm², black (SCHU-MC230/16PSW)
2 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), straight, chrome-plated (NC3FXX-BAG)
Specifications:
| Length ft | 229,66 |
|---|
| Article number | MHFHHM00/02-7000 |
|---|
| EAN | 4049371117449 |
|---|
| In | 00 |
|---|
| Out | 02 |
|---|
| Length m | 70 |
|---|
| Old article number | CDXM01/02-70DMX3 |
|---|
| Article number | MHFHHM |
|---|
| Brand | Sommer cable |
|---|
| Application | AES / EBU, DMX & power system |
|---|
| Connector-Brand | MENNEKES |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Cable | SC-Monolith |
|---|
| Type | XLR |
|---|
| Type | Schuko |
|---|
| Type (detailed) | XLR 3-pole male |
|---|
| Type (detailed) | Schuko mountingsocket (IP54) |
|---|
| Type (detailed) | Schuko connector male |
|---|
| Type (detailed) | XLR 3-pole female |
|---|
