The HI-FIBER4 SYSTEM...
combines two LC-Duplex connections on the surface area of an XLR connector. It locks reliably by push-pull technology, sheltering the delicate interior with a spring-loaded protecting tube and two prongs which also double as a slide-in aid.
The properly functioning strain relief with sleeve support and the massive aluminium protective cover guarantee a trouble-free operation under tough conditions on the road.

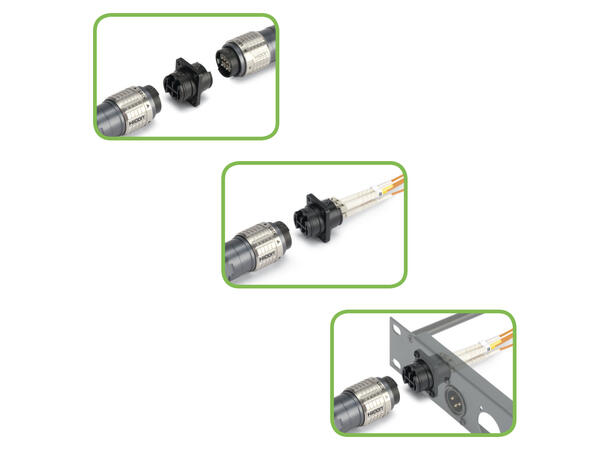

The matching HI-FIBER4-FD socket can either be front or rear mounted in panels with 4 mm max. thickness. It has the same mating pattern on both sides, so alternatively it can be loaded directly with standard LC connectors as well. On the other hand it will also double as a direct extension adapter. The main advantage of the HICON HI-FIBER4-system is its field assembling suitability. SOMMER CABLE offers special tuitions for this purpose. The LC connectors we use are “made in Germany”, assembled by hand, machine-polished and then tagged with a test protocol.
We supply 3 different versions:
1.) as plain cable
2.) as reel version with 2 m end piece on auxiliary coil

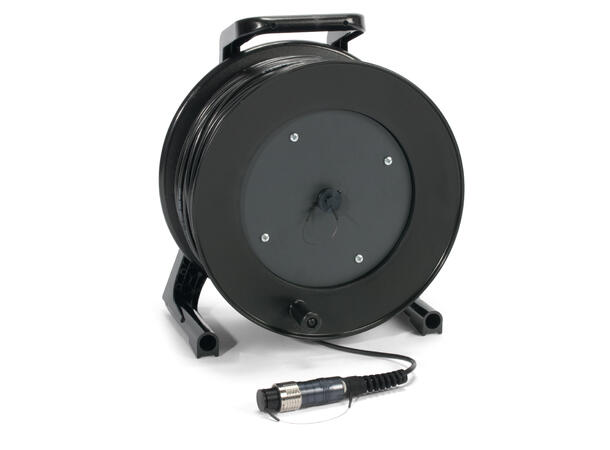

3.) as reel version with built-in socket
Miscellaneous:
Configuration:
50,00 m Optical fiber SC-Octopus-G; 4 x 9/125 µm OS2; PUR-FRNC Ø 5,50 mm; black (590-0321-04)
1 x SCHILL Kabeltrommel, GT310, core: 170 mm, thread width: 132 mm, Solid rubber (GT310)
1 x HICON 4 x LC, metal-, Patch-female connector, Type D M3, black (HI-FIBER4-FD)
1 x HICON Protective cap with fastening cord for HI-FIBER4-FD (HI-FIBER4-FCAP)
1 x Sommer cable Front panel with 1 D-hole (XLR, etc.) for GT310, HT and SK-Modelle, anthracite RAL7016 (RUND01)
1 x HICON Push-Pull 4 x LC, metal-, Patch-male connector, straight, silver (HI-FIBER4-MC)
1 x Sommer cable Protective Bag for Round plug HI-FIBER4, EP5, Triax connectors 8–11, subsequent assembly possible, grey (BAG-MINI-O)
Specifications:
| Length ft | 164,04 |
|---|
| Article number | OZFEGL04/00-5000 |
|---|
| EAN | 4049371120814 |
|---|
| In | 04 |
|---|
| Out | 00 |
|---|
| Length m | 50 |
|---|
| Article number | OZFEGL |
|---|
| Name | OZFEGLXX/XX |
|---|
| Brand | Sommer cable |
|---|
| Application | Digital Fiber Distribution System |
|---|
| Connector-Brand | HICON |
|---|
| Cable | SC-Octopus-G |
|---|
| Additional function | on SCHILL GT series cable reel with chassis sockets in the core |
|---|
| Type | LC |
|---|
| Type (detailed) | 4x LC |
|---|
| Old article number | OZFEGLXX/XX |
|---|
