SOMMER SYSFLOOR-03 Gulvbrønn 3WU. Passer alle SYSBOXX Front paneler SOMMER SYSFLOOR-03 Gulvbrønn 3WU. Passer alle SYSBOXX Front paneler

SOMMER SYSFLOOR-03 Gulvbrønn

3WU. Passer alle SYSBOXX Front paneler

Varenr: 152163
Alt. varenr: SYSFLOOR-03
1 507,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

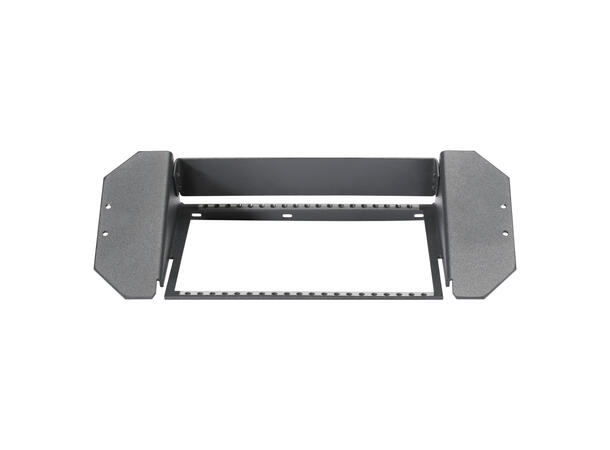

FLOOR TANK INSERT WITH SYSTEM (modular equipping)

The ideal, extremely stable mounting frame for integrating audio/video/media and domestic installation connections in floor tank connection units. SYSFLOOR is available in three different versions:

1. The SYSFLOOR-06 can be fitted on 9.5”, 6+2+2 WU with up to 16 x D-flange plus, for example, 2 additional Schuko positions as required and provides optimum installation options due to the stable strain relief ring with 19 cable fixing positions.
2. The SYSFLOOR-04 can accommodate up to 10 x D-flange or appropriate media interfaces on 4 WU.
3. The SYSFLOOR-03 can accommodate up to 8 x D-flange or appropriate media interfaces on 3 WU.

The insert size of the SYSFLOOR-03 is equal to a GB2 mounting box (or a GB3 mounting box with the SYSFLOOR-04 resp.). This makes it possible to install SYSBOXX together with domestic installation components in one box. The insert size of the SYSFLOOR-06 is equal to 3 GB3 mounting boxes. Due to the slanted connection plane the cover of the floor tank can be closed even with plugged-in multipin connectors*. Owing to the generous space conditions power supplies and active converters (or the like) can be neatly tucked away in the floor box.

The mounting frames are compatible with round and square OBO BETTERMANN/ACKERMANN equipment inserts (e.g. GESR9) and fitted with fixing holes in the 5.08 mm / 0.2' spacing (for self-tapping M2.5 screws) and installation accessories. The PE connection requires an earth bolt and naked, conductive locating surfaces for the front panels. SYSFLOOR-03/-04 are supplied with 25 front panel screws, the SYSFLOOR-06 comes with 50 front panel screws. The matching front panels for individual loading are shown on the following pages.

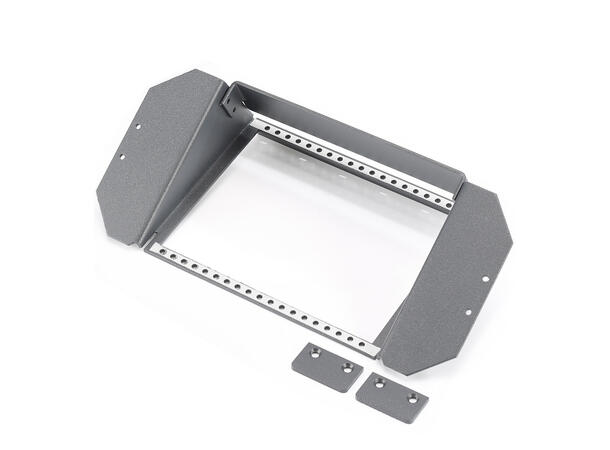

Supplied accessories:
SYSFLOOR-03 Frame
SYSFLOOR-03 Grip guard plate
2 x SYSFLOOR-MB Mounting clip für OBO-BETTERMANN Floortanksystems
15 x S-G2,5x08S-TS thread grooving screw for Frontplate & mounting parts



Specifications:

Article numberSYSFLOOR-03
EAN4049371099318
TypeMounting frame for floor tank
Colourgrey
Colour detailedanthrazith, RAL 7016
AffiliationSYSBOXX-Module
Additional functionwith 25 front panel screws
Width unit BE3
Height unit HE2
