Advantages:
LAN signal transmission incl. mains supply in one cable
LAN cable also usable as an additional control line
Application:
Mobile applications
Article number 502-0141-1

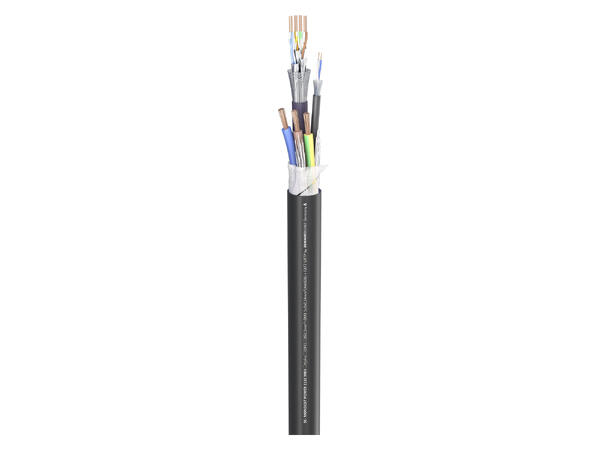

Name SC-Monocat 111C Ed.2
EAN 4049371448567
Properties Digital 110 O AES / EBU
Properties Analog
Properties OFC oxygen free copper
Application area Studio / Broadcast
Application area Installation
Application area Stage / live
Application area Mobile outdoor / indoor
Application hybrid cable
Colour black
Colour detailed black

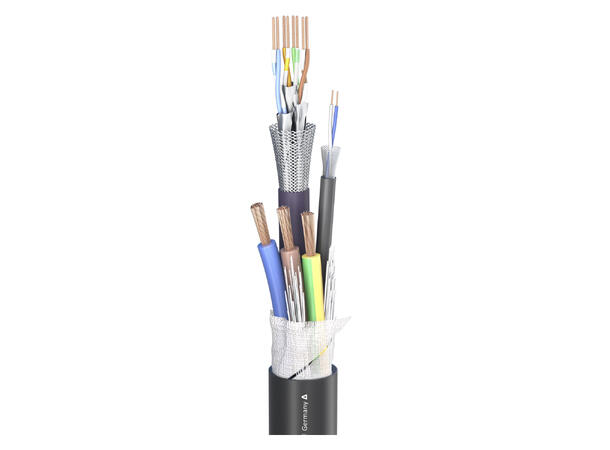

Construction [3LIY3x2,5mm²+1x(4x(2LI2Yx0,14mm²))(ST)CY+1x(2LI2Y0,14mm²)DY]Y
Construction (power) 3 x 2,50 mm²
Construction (AES/EBU, DMX) 01(2LI2Y0,14mm²)DY
Construction (network) 1x(4x(2LI2Yx0,14mm²))(ST)CY
Jacket material PVC
Jacket Ø [mm] 14.50
Jacket Ø (AES/EBU, DMX) [mm] 3,50
Jacket Ø (network) [mm] 6,40
Inner conductor (power) 3
Inner conductor (AES/EBU, DMX) 2
Inner conductor (network) 8
Inner conductor (power) [mm²] 2,50
Inner conductor (AES/EBU, DMX) [mm²] 0,14
Inner conductor (network) [mm²] 0,14
Shielding (AES/EBU, DMX) Copper spiral, tin-plated
Shielding (network) AL / PT-foil + Copper braiding tin-plated
Shielding factor [%] 100
Copper strands (network) 7
Copper strand Ø (network) [mm] 0,16
Conductor insulation material Foam / Skin-PE
Weight per 1 m [g] 260
UV-resistant yes
Style variant round
Packing bulk stock
CAT-Type CAT.7
Max. section length [m] 100
Temperature min. [°C] -20
Temperature max. [°C] 70
Width [mm] 14,5
Height [mm] 14,5
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 53
Capacity wire/wire at 1m (network) [pF] 44
Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 93
Surge impedance (AES/EBU, DMX) [O] 110
Impedance (network) [O] 100
Insulation resist. per 1km (power) [GO] 5
Test voltage [V] 2000
Nominal voltage (power) [V] 300
Operating voltage (power) [V] 300
Operating voltage (power) [V] 500
BPVo-Euroclass Fca
