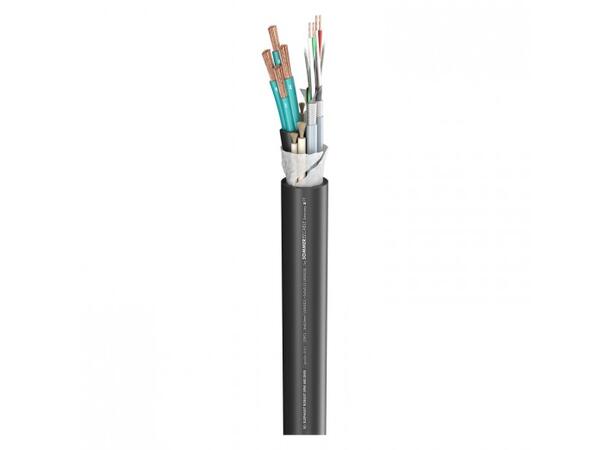

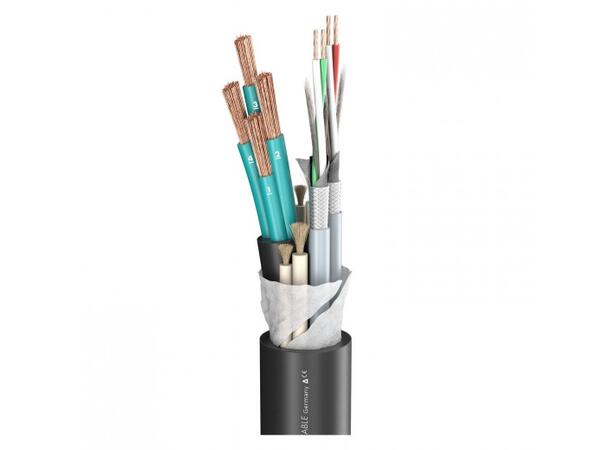

SOMMER Elephant robust hybrid kabel

SC-ELEPHANT ROBUST DMX Special cable for subwoofer systems

Technical Data:

• Article number: 490-0151-442
• Name: SC-ELEPHANT ROBUST DMX
• EAN: 4049371468695
• Brand: Sommer cable
• Properties: Digital 110 O
• Properties: Analog
• Properties: OFC oxygen free copper
• Application area: Stage / live
• Application area: Installation
• Application: Special cable for subwoofer systems
• Colour: black
• Jacket material: PVC
• Jacket material (audio): PVC
• Jacket material (AES/EBU, DMX): PVC, flame-retardant
• Jacket Ø: 19,50 mm
• Jacket Ø: 0.7677 "
• Jacket Ø (AES/EBU, DMX): 4,30 mm
• Jacket Ø (AES/EBU, DMX): 0.1693 "
• Number of Channels (audio): 1
• Number of Channels (AES/EBU, DMX): 2
• Inner conductor (audio): 4
• Inner conductor (AES/EBU, DMX): 2
• Inner conductor (audio): 4,00 mm²
• Inner conductor (audio): 0.0062 sqin
• Inner conductor (AES/EBU, DMX): 0,22 mm²
• Inner conductor (AES/EBU, DMX): 0.0003 sqin
• AWG (audio): 11
• AWG (AES/EBU, DMX): 24
• Shielding (AES/EBU, DMX): AL/PT foil + Cu braid, tinned
• Shielding factor: 100 %
• Copper strands (audio): 126
• Copper strands (AES/EBU, DMX): 7
• Copper strand Ø (audio): 0,20 mm
• Copper strand Ø (audio): 0.0079 "
• Copper strand Ø (AES/EBU, DMX): 0,20 mm
• Copper strand Ø (AES/EBU, DMX): 0.0079 "
• Wire insulation material (audio): PVC
• Conductor insulation material (AES/EBU, DMX): PE
• Conductor insulation Ø (audio): 4,00 mm
• Conductor insulation Ø (audio): 0.1575 "
• Conductor insulation Ø (AES/EBU, DMX): 1,50 mm
• Conductor insulation Ø (AES/EBU, DMX): 0.0591 "
• Weight per 1 m: 500 g
• UV-resistant: yes
• Style variant: round
• Packing: Bulk Cable
• Temperature min.: -25 °C
• Temperature max.: 70 °C
• Width: 19,5 mm
• Width: 0.7677 "
• Height: 19,5 mm
• Height: 0.7677 "
• Capac. cond./cond. per 1 m (AES/EBU, DMX): 45 pF
• Capacity wire/wire at 1 ft. (AES/EBU, DMX): 13.716 pF
• Surge impedance (AES/EBU, DMX): 110 O
• Insulation resist. per 1 km (audio): 0,15 GO
• Insulation resist. per 1000 feet (audio): 0.0457 GO
• Insulation resist. per 1 km (AES/EBU, DMX): 5 GO
• Insulation resist. per 1000 feet (AES/EBU, DMX): 1.524 GO
• Conductor resistance per 1 km (audio): 4,95 O
• Conductor resistance per 1000 ft. (audio): 1.5088 O
• Conductor resistance per 1 km (AES/EBU, DMX): 89 O
• Conductor resistance per 1000 ft. (AES/EBU, DMX): 27.1272 O
• Old article number: 999-0001-473
