The Transrapid among network cables

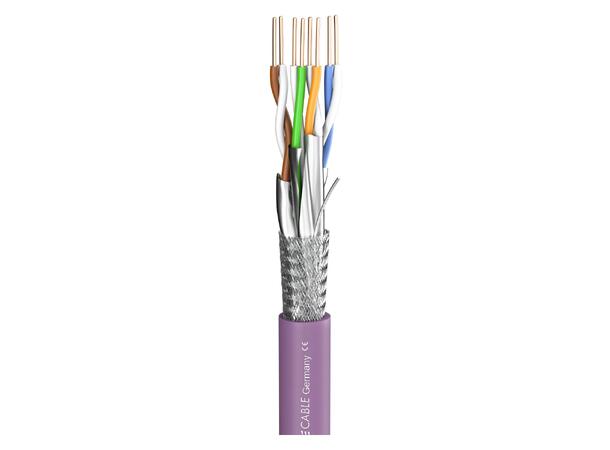

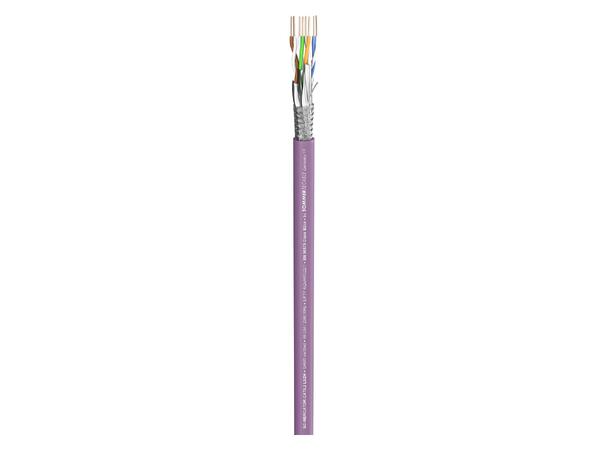

supports a bandwidth of up to 40 Gbit/s and is suitable for setting up high-speed Ethernet networks in building cabling. The CAT.8 network cable in the halogen-free LSZH jacket impresses with large performance reserves and excellent quality, among others to meet the standards IEC 60332-1-2, IEC 60754-1/2, IEC 61034-1/2 as well as the high fire protection class B2ca (flame retardant, low heat release). It has a high-quality 2-fold shielding of individually shielded wire pairs (PimF) plus overall braiding of tinned copper and is suitable for applications up to a transmission frequency of 2000MHz, as well as Power over Ethernet (PoE/PoE+/POE++), the transmission of digital and analog signals, video, data, voice and VoIP (Voice over IP). The cable meets all requirements of application classes 1 and 2 (CAT8.1 and CAT8.2), which provide for a link length of max. 30 m, and is also downward compatible with all lower network classes. Thus, the categories CAT.7a, CAT.7, CAT.6a, CAT.6, CAT5e and CAT.5 are also met.
Advantages:
- GHMT-certified
- Fast transfer rates of up to 40 Gb/s
- Transmission frequency up to 2000 MHz
- POE++
- High fire protection class B2ca
Miscellaneous:
- compatible with the GG45 and AR45 connector formats

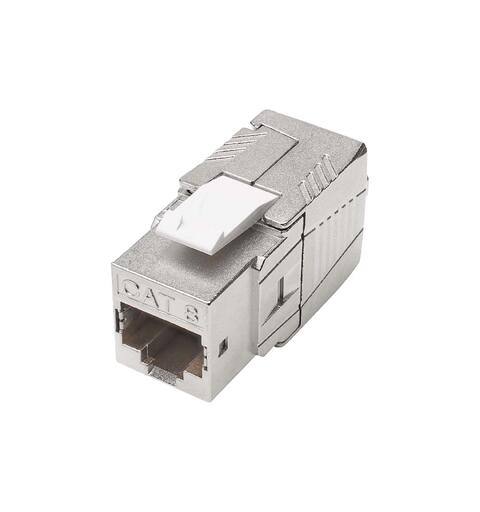

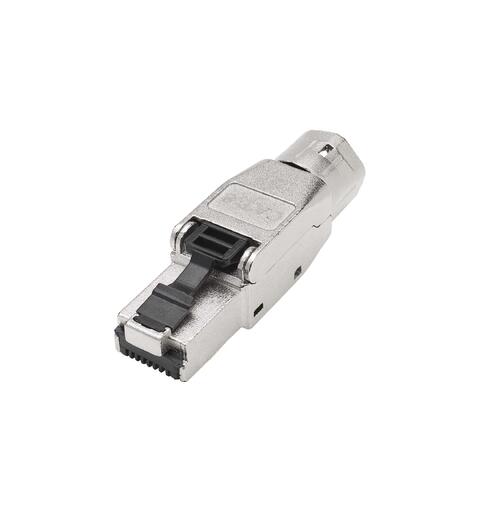

- Suitable connectors: RJ45C8XL and RJ45CF8XL
Application:
- medical technology
- military communication technology
- High-speed networks for data centers and demanding industrial applications
Article number: 580-0828FC
Name: SC-Mercator CAT.8.2 B2ca, GHMT
EAN: 4049371519489
Properties: Digital 110 O, Halogen-free / LSZH, OFC oxygen free copper
Application area: Installation
Application: CAT.8.2 40Gbit/s 2000 MHz
Colour: purple
Jacket material: LSZH
Jacket Ø [mm]: 8.20
Number of Channels (network): 1
Inner conductor (network): 8
Inner conductor Ø (network) [mm]: 0,62
Inner conductor Ø (network) ["]: 0.0244
AWG (network): 22
Shielding: PimF, Copper braiding tin-plated
Shielding (network): PiMF + tinned copper braid
Shielding factor [%]: 100
Copper strands (network): 1
Copper strand Ø (network) [mm]: 0,62
Copper strand Ø (network) ["]: 0.0244
Style variant: round
CAT-Type: CAT.8.1
Max. section length [m]: 30
Max. section length [ft]: 98.4252
Old article number: 580-0822FC
BPVo-Euroclass: B2ca
RAL color: 4001
