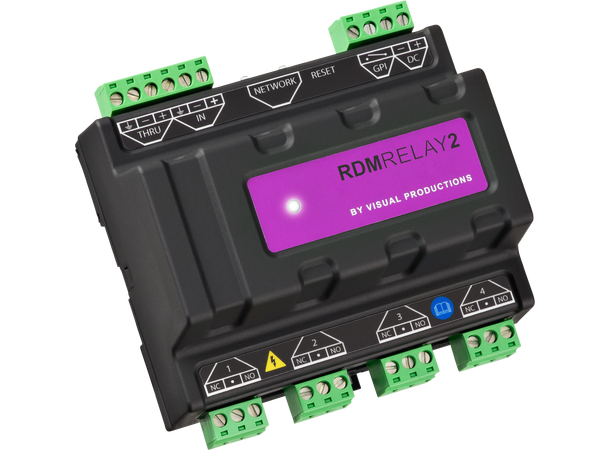

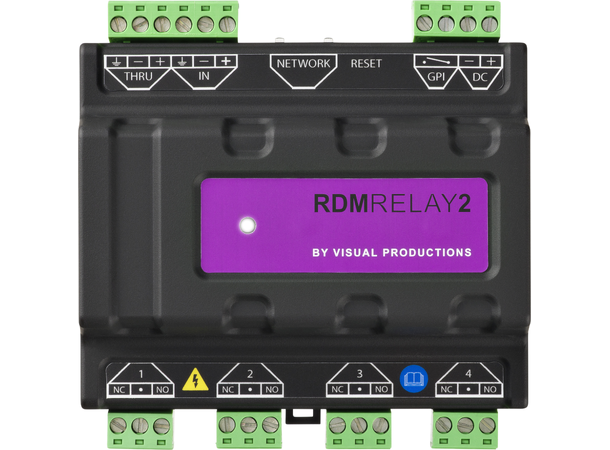

RdmRelay2 is a networked 4-channel relay controllable via DMX, RDM, and TCP/IP. It provides full network compatibility and API integration, enabling straightforward integration and remote control within modern installations.
Equipped with four mains-rated relays, RdmRelay2 can switch 110–230V loads up to 12A per channel. This makes it ideal for controlling non-DMX equipment or safely powering down lighting systems.
You can control RdmRelay2 in multiple ways using DMX, Art-Net, sACN, or other network-based protocols. Thanks to its own API, RdmRelay2 can also communicate with other network-based devices in your installation, making it highly versatile and easy to integrate into almost any setup.
Configuration is just as straightforward. Simply access the device's web interface and program it to suit the needs of your installation.
Current monitoring is one of the most important aspects of relay integration, and it should always be easy to read and understand. For this reason, RdmRelay2 features current sensors on its relays, enabling continuous monitoring of current type and load through the ports. This information can be easily accessed through the web interface and via RDM, ensuring seamless and safe monitoring.
- 4 Relays, each with max
- 12A 250V AC Resistive
- 12A 30V DC Resistive
- 6A 250V AC Inductive
- 6A 30V DC Inductive
- DIN Rail mounting
- DMX512-A (ANSI E1.11)
- RDM (ANSI E1.20)
- Art-Net & sACN
- OSC, UDP, TCP
- 9-24V DC 5W (PSU optional)
- Operating temperature -20°C to +50°C (-4°F to 122°F)
- Operating relative humidity 10% to 80% non-condensing
- Compliance: CE, ROHS, UKCA, UL/CSA pending
