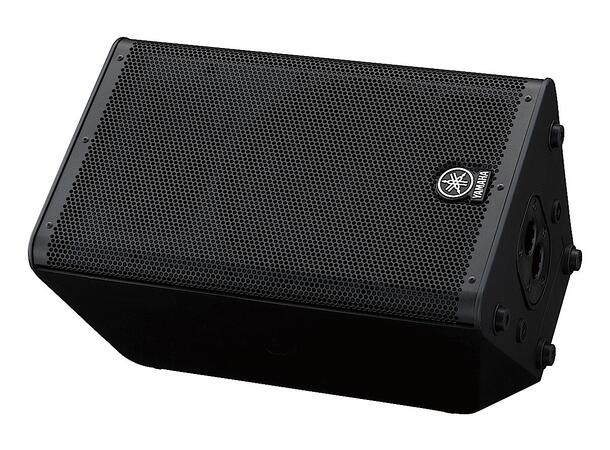

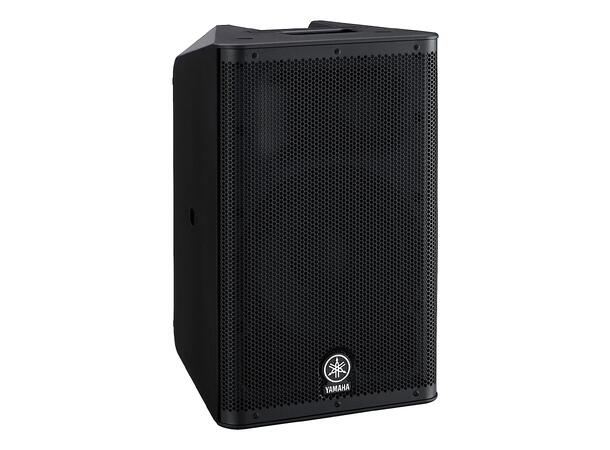

The most compact of the DXR Series speakers, the DXR8 makes the most of its 1100W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12 subwoofer gives you an ultra-compact high-power SR system.
Specifications
General specifications
Speaker type 8" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 57Hz - 20kHz
Nominal coverage H 90°V 60°
Components LF Diameter:8" cone, Voice Coil:2", Magnet:Ferrite
HF Diaphragm:1.4", Type: 1" throat compression driver,
Magnet:Ferrite
Output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W
(LF: 600W HF: 100W)
Maximum output level (1m; on axis) 129dB SPL
Processors D-CONTOUR :FOH / MAIN, MONITOR, OFF
I/O connectors INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA
PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK
OUT: XLR x 1
Power requirements 100V - 240V, 50Hz/60Hz
Dimensions W 280mm (11")
H 458mm (18")
D 280mm (11")
Net weight 13.5kg (29.8lbs)
Flying and mounting hardware Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Pole socket 35mm with 2-way features (0 or 7 degrees)

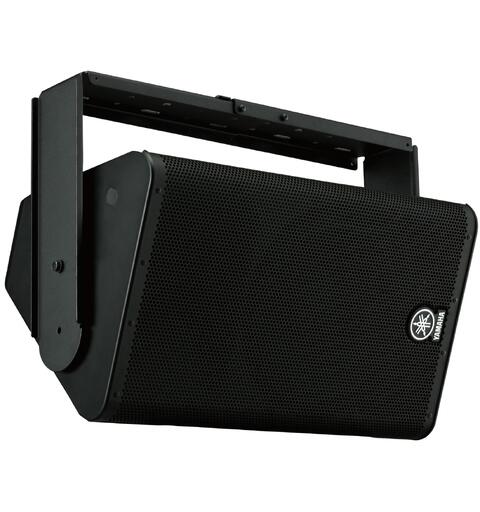

Accessories UB-DXR8 (U-bracket)
Power consumption 90W
Others Material: ABS (Matte Finish, Black)
Crossover FIR-X tuning™ (linear phase FIR filter)
