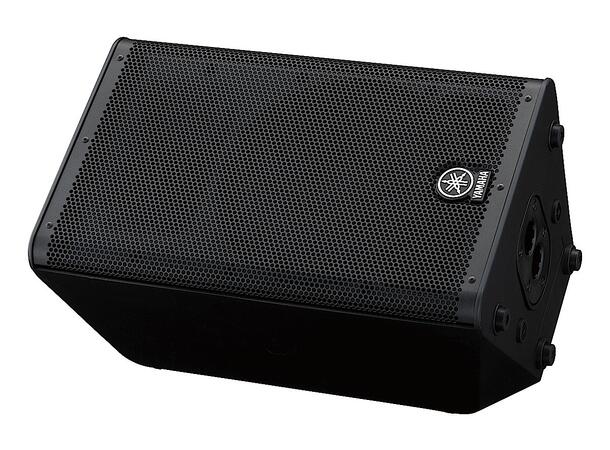

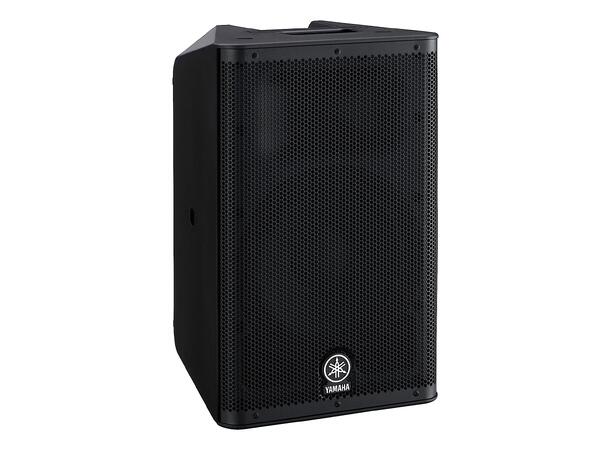

The DXR15 achieves class-leading SPLs and full bandwidth performance by combining a
powerful Class-D amplifier with a high-power woofer and Yamaha's cutting edge technologies.
Throw in some D-CONTOUR and you'll feel like you're using a subwoofer.
Specifications
General specifications
Speaker type 15" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 49Hz - 20kHz
Nominal coverage H 90° V 60°
Components LF Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
HF Diaphragm:1.4", Type: 1" throat compression driver,
Magnet:Ferrite
Output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W
(LF: 600W HF: 100W)
Maximum output level (1m; on axis) 133dB SPL
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
I/O connectors INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA
PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK
OUT: XLR x 1
Power requirements 100V - 240V, 50Hz/60Hz
Dimensions W 445mm (17 4/8")
H 700mm (27 4/8")
D 380mm (15")
Net weight 22.5kg (49.6lbs)
Flying and mounting hardware Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
Pole socket 35mm with 2-way features (0 or 7 degrees)
Accessories UB-DXR15 (U-bracket)
Power consumption 110W
Others Material: ABS (Matte Finish, Black)
Crossover FIR-X tuning™ (linear phase FIR filter)
