Specifications
General specifications
Speaker type 2-way, Acoustic suspension
Frequency range (-10dB) 55Hz - 20kHz (Half-space:2p)
Components LF 8" Cone
HF 1" Soft dome
Power rating NOISE 90W
PGM 180W
PEAK 380W
Nominal impedance 8O
SPL Sensitivity (1W; 1m on axis) 90dB SPL (Half-space:2p)
Peak (Calculated) 116dB SPL (1m, Calculated based on power rating and
sensitivity, exclusive of power compression)
I/O connectors 1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
Dimensions D 259mm (10.2")
Net weight 6.6kg (14.6lbs)
Finish VXC8: Black / VXC8W: White

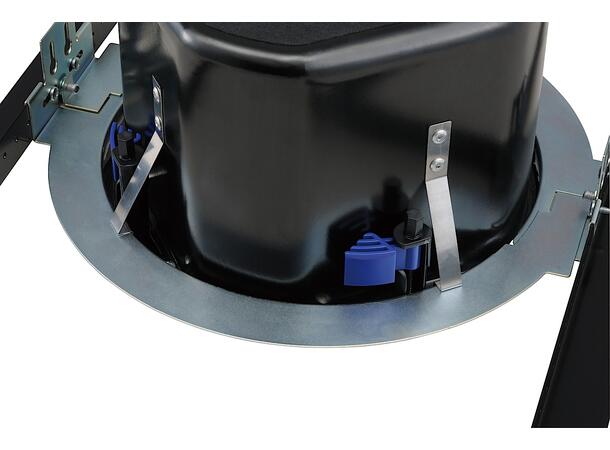

Accessories O-ring, Tile Rail, Cutout Template
Transformer taps 100V 60W (170O), 30W (330O), 15W (670O)
70V 60W (83O), 30W (170O), 15W (330O), 7.5W (670O)
Nominal coverage 100° conical (Half-space:2p)
Dimensions Diameter 325mm (12.8")
Cutout size Ø285 mm (Ø11-1/4")
Required ceiling board thickness 5 mm – 35 mm
Packaging Packaged in pairs
Certificate UL1480, UL2043, NFPA70, CE, EAC, RoHS
