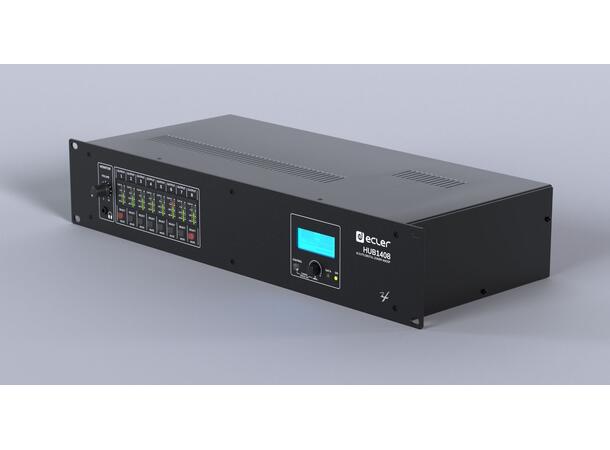

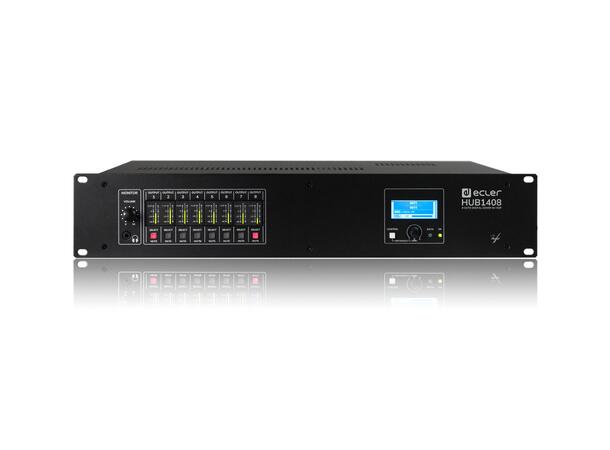

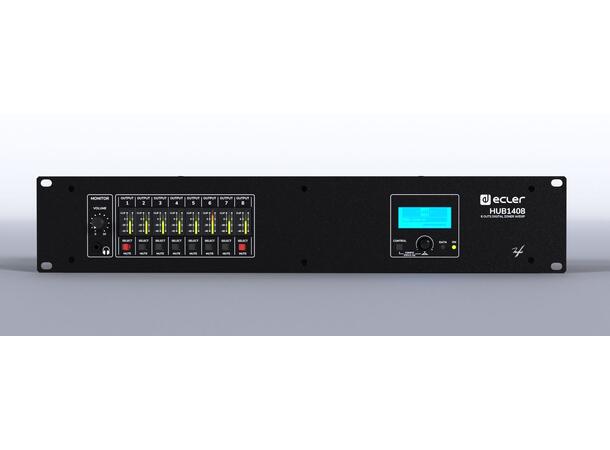

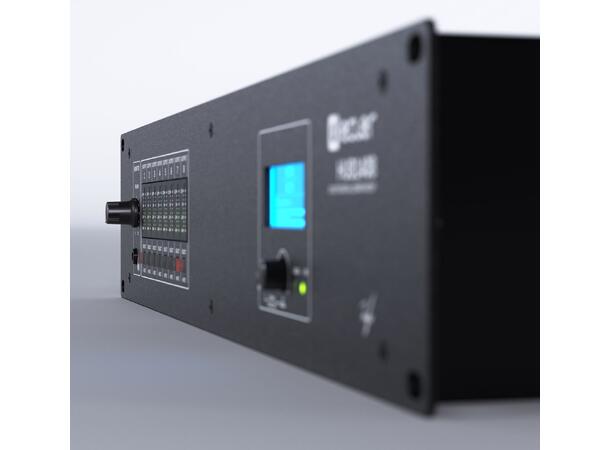

HUB1408
14x8 digital zone manager with integrated DSP, HANGAR embedded web-server app, and Plug & Play predefined setups.
Main features
- 14 inputs, 8 outputs digital zoner with DSP
- Programmed via embedded web app HANGAR

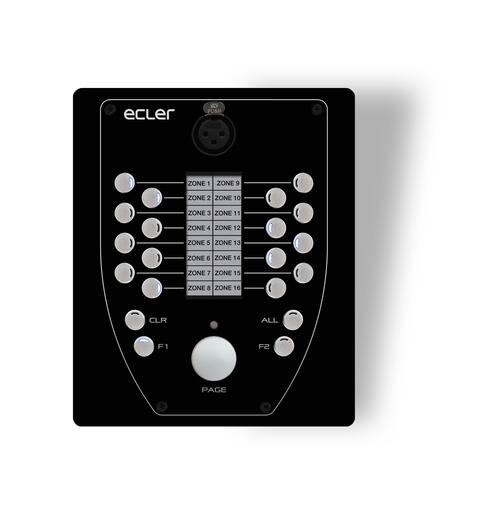

- Remote control via eMCONTROL1 wall panels (up to 8), eMPAGE paging consoles (up to 2), Ecler pilot app (Android/iOS), TP-NET (RS-232)
- Per-zone control: source select, volume/MUTE, 3-band tone, general volume
- 4 priority levels, ducker/pager
- DSP: frequency shifter, link stereo, delay, crossover, 8-band graphic EQ, compressor/limiter
- Plug and Play predefined setups
- MUTE via external dry contact
Technical specifications
- Processor: Floating point 32/64bit
- Sampling rate: 48kHz
- Resolution: 24bit AKM
- Latency: <1.5ms
- Frequency response: <10Hz-20kHz(+0/-0.5dB)
- Dynamic range: AD 111dB, DA 115dB

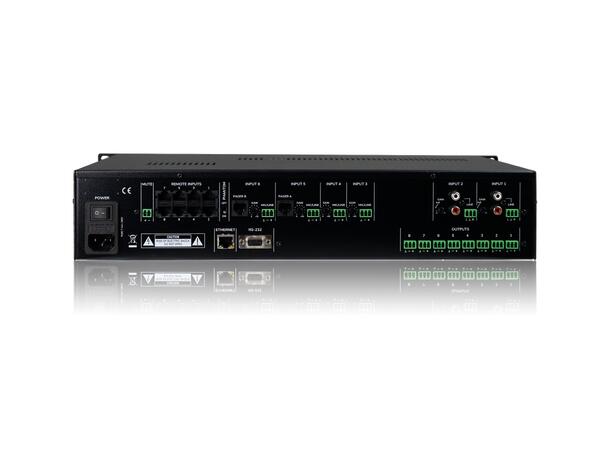

- Inputs: 2 Line (RCA), 4 Mic/Line (Euroblock), 8 Remote (RJ45)
- Phantom power: Mic/Line +48VDC
- Outputs: 8 Line, Euroblock 3-pin balanced
- Max output level: 12dBV
- Crosstalk: >90dB
- Ethernet: 1 RJ45 10/100Mb
- Serial: RS-232 DB9
- Control: Hangar web app, Ecler pilot app, TPNET
- Digital remote: RS485 bus
- GPIs: 1 MUTE port
- AC mains: 100-240VAC 50-60Hz
- Power consumption: 20W
- Installation: 19" rack 2RU
- Dimensions: 482.6x88x200mm
- Weight: 3.60kg
