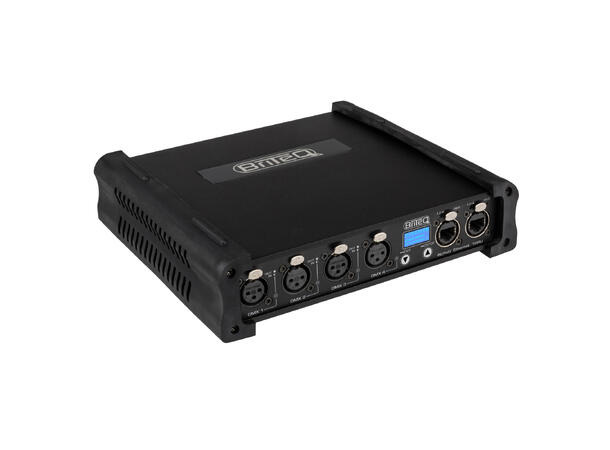

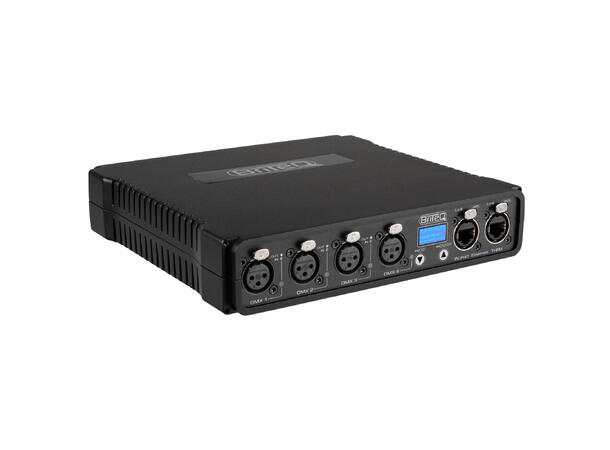

BRITEQ BT-NODE24 MK2 ArtNet/sACN Node

High-speed ArtNet & sACN Node with 4 configurable DMX ports (XLR 3-pin), web interface and OLED display. Compatible with DHCP, RDM and Gigabit Ethernet with PoE

• High speed Art-Net and sACN Node with 4 highly configurable DMX ports.
• Gigabit Ethernet I/O based on high speed Marvell switch, without linking delay.
• Automatic Ethernet bypass on power fails.
• Perfect for install market with configurations over Art-Net support and DHCP.
• Complies to IEEE 802.3-2005 standard for fully compliant hi-speed Gigabit Ethernet over long cable lengths.
• Integrated web interface with support for mobile devices.
• Graphic OLED display for easy monitoring and setup.

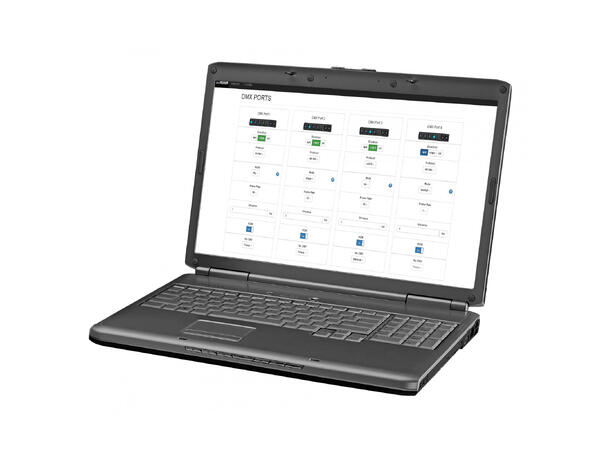

• The 4 DMX ports can all be configured as in or outputs:
• Configured as input: normal mode
• Configured as output: single, LTP, HTP or ZERO mode

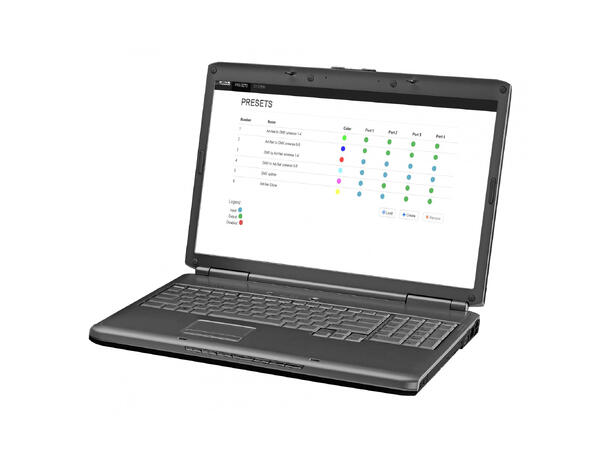

• Multiple pre-defined presets available and custom presets.
• RDM over Art-Net compatible.
• All DMX ports are equipped with 3pin or 5pin Neutrik® XLR-connectors (both versions available).100% electrical isolation between all in/outputs: problems on 1 port will not influence the other ports.
• Power options:

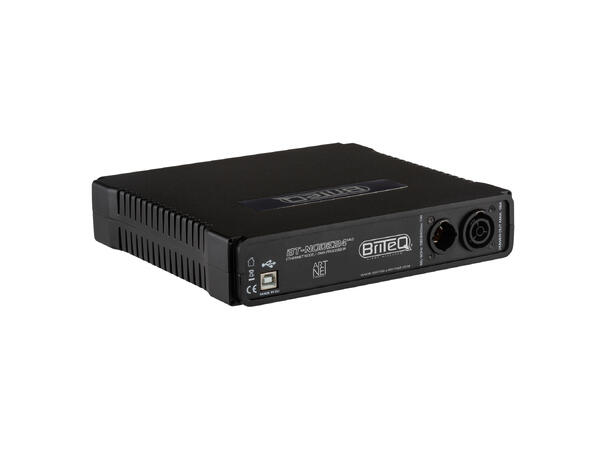

• 100-240VAC 50/60Hz Neutrik® TRUE-1 daisy chaining.
• PoE class 0 input. From 36V to 57V
• Housing ½ 19" diecast housing with different installation options:

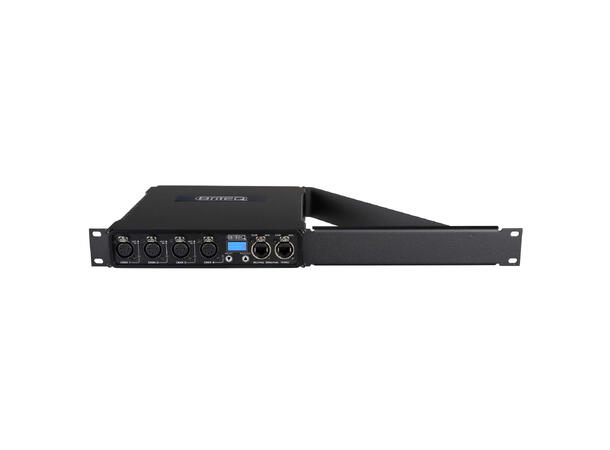

• 1-unit fits 1U 19” rack (19" adapter included)

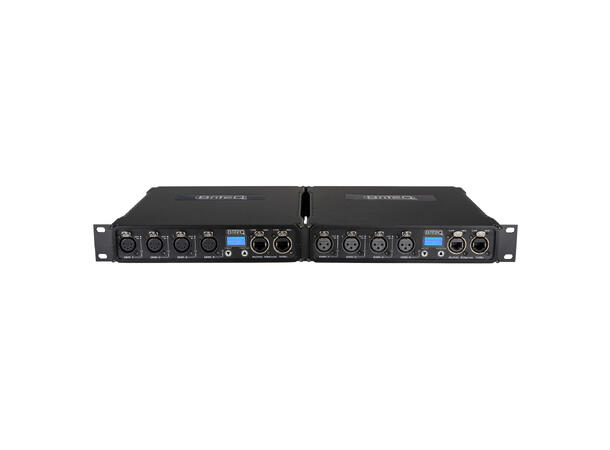

• 2-units fit together in a 1U 19" rack (adapters included)

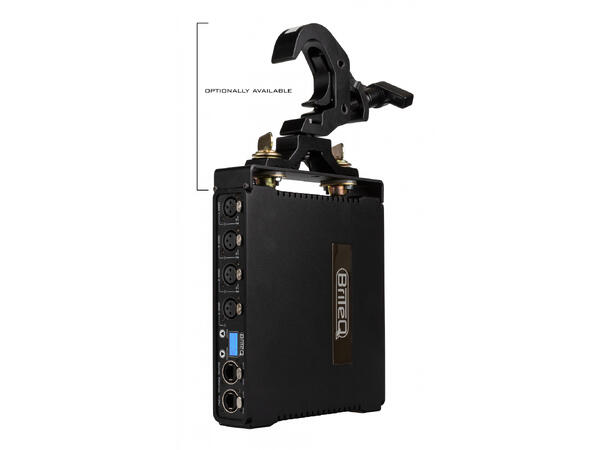

• Easy truss mounting with wall adapter (optional)
• Strong rubber protection adapters for stage use (optional)
• Developed by Briteq® in Belgium and made in Europe!
