LED Profile Spot based on a special 500W (2800K + 6000K) COB LED module and multiple options sold separately: different optics (ETC compatible), gobo holder, iris.
- This LED profile spot is based on high power LED technology
- It’s a perfect companion to our BT-THEATRE 400TW
- For your convenience the projector is sold as two separate parts:
- BT-PROFILE 500TW/LED ENGINE
- Equipped with a high power tunable white COB LED (2800K-6000K)
- Extremely silent cooling system using heat pipe technology
- Compatible with ETC® Source Four-optics

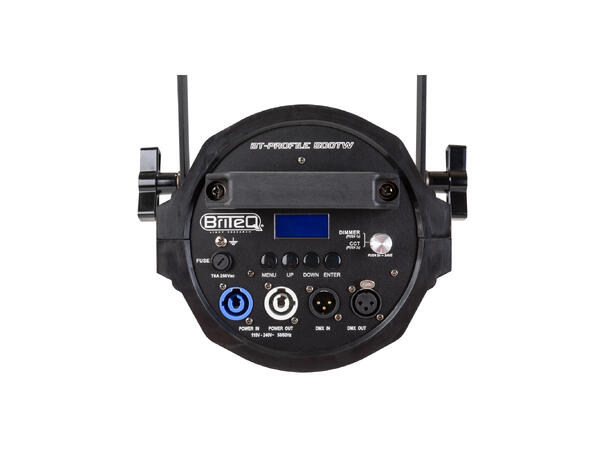

- LCD-screen for easy settings.
- 5 working modes:
- Manual control over intensity and different CCT-presets
- 4 different DMX modes with 8 or 16bit dimming and CCT control
- Different dimmer curves:
- Linear
- Square law
- Inverse square law
- S-curve
- DIFFERENT OPTICS:

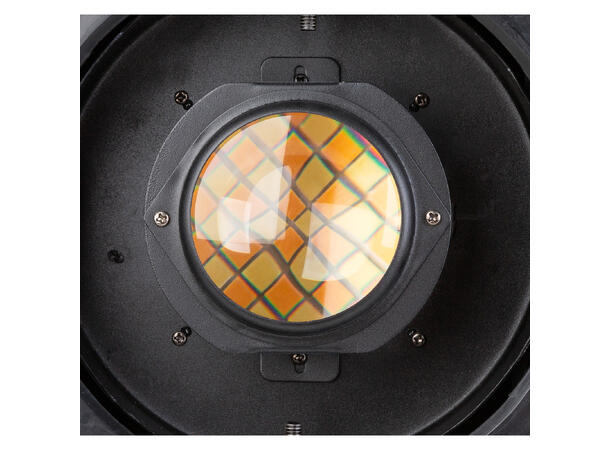

- Specially coated optics for sharply defined crisp projections
- Four profile blades, specially coated for minimum reflections
- Different optical units are available:
- BT-PROFILE250/OPTIC 19DEG - fixed 19° beam angle
- BT-PROFILE250/OPTIC 26DEG - fixed 26° beam angle
- BT-PROFILE250/OPTIC 36DEG - fixed 36° beam angle
- BT-PROFILE250/OPTIC 50DEG - fixed 50° beam angle
- BT-PROFILE160/OPTIC 15-30 - 15°-30° zoom range
- BT-PROFILE160/OPTIC 25-50 - 25°-50° zoom range
- Lockable compartment for use of the optionally available:
- GOBO Holder (“BT-PROFILE160/GOBO HOLDER”)
Outer diameter gobos: 86mm, optical diameter: 48m
- IRIS (“BT-PROFILE160/IRIS”)
Aperture diameter: adjustable from 5mm to 74mm
- Can replace ETC Source Four-optics
- Optical barrel can be rotated and locked I any position
