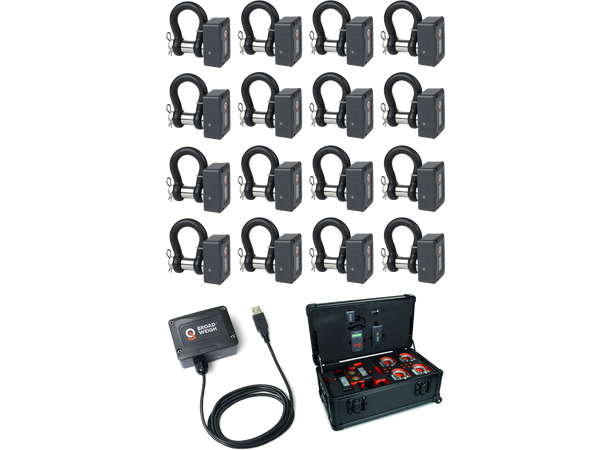

4.75t Loadcell shackle:
'New Generation 3 now released
- Smart Sleep protects battery life whilst monitoring
- Comfortable in the most challenging RF environments
- Easy power cycle with one swipe using new magnetic fob
- New bow brings superior tolerances, finish and durability
- Unit conversion for kg, lbs, tonnes, ton, ton (US), kN
- 3250 kg or 4750 kg weight range
- Accuracy typically ± 1% of current load or ±25 kg (whichever is the greater value)
- Fully weatherised (IP67)
- Machinery Directive 2006/42/EC compliant
- Zero Trim Shackle
- 5:1 safety factor
- Anti-rotational bracket
- Supplied pre-calibrated
Our latest Generation 3 shackle is built to withstand the demands of challenging environments and weather conditions and enables monitoring and logging of precise loads on any given rigging point. With the latest Generation 3 Features. Read full features list here. Delivering wireless data to a choice of receivers, the system provides the tools to safely distribute weight for indeterminate loads, roof structures, mother-grids as well as indicate alarms to avoid rigging component overload situations. Using our custom designed surface treated BS EN 13889 bow, the aerospace grade stainless steel load pin is supplied with a load centralising bobbin as standard. Accuracy typically ±1% of current load or ±25 kg.
USB Dongle base station:
- Collects wireless data from Broadweigh shackles
- Up to 500 m (1,600 ft) range
- Configures any Broadweigh device via USB connection
- Portable device which is designed for laptops and tablets
- Ideal for portable logging using LOG100 Software
- Powered from USB
- IP50 rated
The BW-BSd wireless USB dongle connects to Broadweigh sensors within 500m range. The dongle provides a portable solution with no wiring that makes it ideally suited for laptops and tablets that run a full version of Windows. It is offered as a portable alternative to the BW-BSue base station which provides up to 800 m range. All of our base stations can utilise our free LOG100 software.
Broadweigh software can be downloaded here:
https://www.broadweigh.com/product-category/2-4-ghz-wireless/software/
