CHROMA-Q Inspire RGBW, 5 pin. Hvit, 42°

5 pin DMX og powerCon inn

Varenr: 157083
15 883,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Hvit
Hvit
Sort
Sort
Bestillingsvare
BeskrivelseTilbehørLenker & dokumenter
Beskrivelse

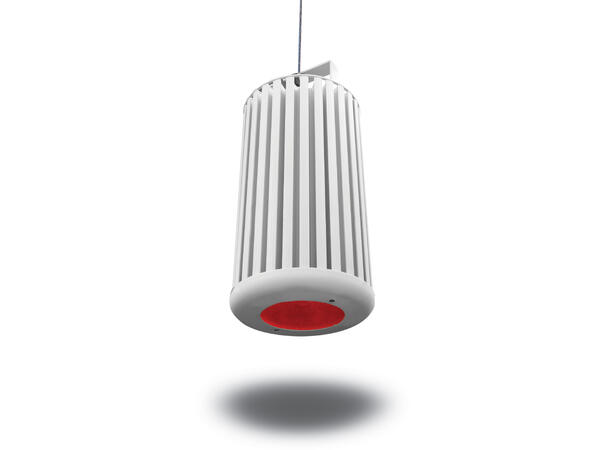

Inspire™ RGBW
Colour Changing & White LED House Lights

The new Chroma-Q® Inspire™ LED house light is a powerful multi-purpose creative lighting tool that utilises some of the innovative core technologies found in the incredibly popular Chroma-Q® Color Force™ range. The Inspire™ provides a choice of beautiful whites, soft pastels and bold saturates ---all from one fixture. By incorporating industry standard DMX-512 control, the Inspire™ is able to integrate seamlessly with an existing DMX infrastructure and can be controlled by any DMX supported lighting console. With fully homogenised colour mixing and a choice of three different lens options, the Inspire™ provides an excellent selection of stunning mixed colours and 'true' whites, with no unsightly colour separation shadows. It also features an energy-efficient compact LED design providing reduced maintenance and running costs.

Key Features

Fully homogenised beam
Choice of narrow, medium and wide beam angle models
Available in a black or white body
Beautiful whites, soft pastels and bold saturates - all from a single fixture
Adjustable 1,000K to 10,000K CCT
Compact yet powerful - 4,390 (narrow lens) / 4,120 (medium lens) / 4,390 (wide lens) lumens
Extremely smooth, uniform wash
Theatrical grade dimming
Ideal for house light replacements
Silent convection cooled - no fans
Multi-purpose - suitable for a wide range of applications
Built in power supply
Low energy consumption
Available in either terminal strip or plug-in configurations



Multi-Purpose
Fusing entertainment, theatrical and architectural lighting capabilities, the Inspire™ has the ability to seamlessly transform the look and feel of a performance venue, themed retail space or house of worship.

A Truly Creative Tool
Whether used in an entertainment, architectural or house of worship context, the Inspire™ provides designers with a tool to create environments that seamlessly transcend the physical barrier between the stage and audience through the creative use of light and colour. With Inspire™, effects can range from a subtle shift in colour temperature, to bold and dynamic colour changes.

Colour
The Inspire™ utilises Chroma-Q® ColorSure™ technology for enhanced consistency when using multiple fixtures. With RGBW colour mixing providing a high CRI of 90, the Inspire™ can achieve extremely accurate colour matching.

DMX-512 Control
Using the Inspire™ house light's DMX-512 input, it is now possible to seamlessly map ceiling lighting, introducing gorgeous soft colour effects and warm amber looks to engage and captivate the room.

Energy Efficiency
With an incredibly low power consumption of 120W the Inspire™ will show you a significant return on your investment with its high energy efficiency.

Camera Friendly
With an adjustable frequency from 600 – 4,800Hz, the Inspire™ house light is extremely camera friendly and can be adjusted to eliminate camera flicker and lens glare.

Optics & Dimming
The Inspire™'s custom optical design provides a smooth, uniform output, matched by theatrical grade dimming.

Technical specifications

Product Code: CHINHLRGBW... (followed by your lens and body colour option)
Net Dimensions: (WxHxD) 181mm x 404mm x 181mm / 7" x 16" x 7"
Net Weight: 6kgs / 13.5lbs
Shipping Dimensions: (WxHxD) 501mm x 380mm x 300mm / 20" x 15" x 12"
Shipping Weight: 8kgs / 18lbs
Power Supply: Built-in
Power Input Rating: 100-240V AC 50-60Hz 120VA
Power Factor: 0.9
Power Consumption: 100W @ 230V (Maximum Intensity); 7W @ 230V (Stand-by)
Power Connectors: In/Out Addressing versions uses PowerCon for input only, other versions use terminal strip
Data Connecto:  In/Out Addressing version uses  XLR 5-pin, other versions use terminal strips
Operating Temperature: 0°C to 40°C
Control Protocol: ANSI E1.11 USITT DMX-512A
Control Protoco:l Output to Fixture Chroma-Q proprietary communication
Cooling System: Convection
Construction: Anodised aluminium extrusion
Colour: Black / White
Built-In Hardware Mounting bracket: (12.7mm / 1/2" diameter hole)
IP Rating: IP20
Approvals: CISPR 22/EN55022 & CISPR 24/EN55024, ICES-003 Issue 4:2004 / FCC Part 15 Subpart B:2010, CSA C22.2 No. 166-M1983: R2008, UL 1573:2003 (R2010), UL SUBJECT 8750: 2009



Control & Photometric data

LED Engines: 1
LEDs: Per Engine Combination of Red, Green, Blue and White
Control Mode:
s 7 channels fxHSI,
5 channels sRGBW,
3 channels HSI,
4 channels RGBW,
1 channel Look sel,
Mastr StndAlon,
Slave StndAlon
Dimming Curve: Theatrical
Variable Effects Engine: Yes
Effects Parameters: Colour speed, range, step, intensity effects
Hot Lumen Output: 4,390 (narrow lens) / 4,120 (medium lens) / 4,390 (wide lens) hot lumens
Optics: Fully homogenised
Beam: Angle 32° (narrow lens), 42° (medium lens), 65° (wide lens) approx.
Beam Distribution: Symmetrical direct illumination
CCT: Adjustable 1,000 - 10,000K
Colour: Gamut Performance enhanced
CRI: 90
Lamp Life: L70 at 50,000 hours
