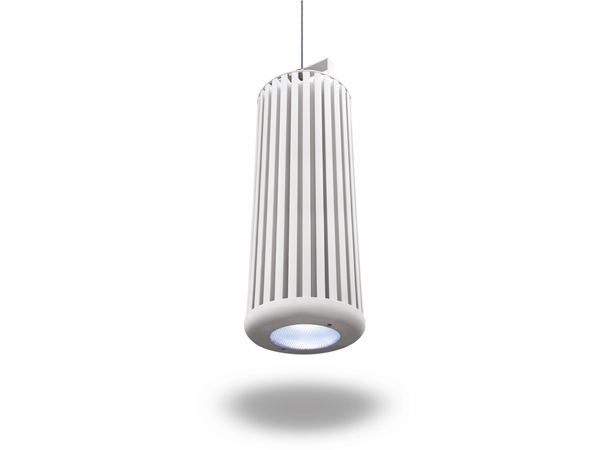

Inspire XT™
Colour Changing & White LED House Lights
The Chroma-Q® Inspire XT™ LED house light is the most powerful fixture in the range, delivering up to 9,500 lumens. Including all the features of the Inspire™ & Inspire Mini™ with twice the output, it is ideal for situations that require the same high quality white and coloured lighting with even more output. In addition, it uses some of the innovative core technologies found in other award winning Chroma-Q® products.
All Inspire models in the range provide a choice of beautiful whites, soft pastels and bold saturates ---all from one fixture. By incorporating industry standard DMX-512 control, the Inspire is able to integrate seamlessly with an existing DMX infrastructure and can be controlled by any DMX supported lighting console. With fully homogenised colour mixing and a choice of three different beam spreads, the Inspire XT™ provides an excellent selection of stunning mixed colours and 'true' whites, with no unsightly colour separation shadows. It also features an energy-efficient LED design providing reduced maintenance and running costs.
Key Features
Fully homogenised beam
High quality white lighting and RGBW colour-mixing
Beautiful whites, soft pastels and bold saturates - all from a single fixture
Ideal for house light replacements
Seamlessly integrate stage & house lighting
Convection cooled for quiet operation
Extremely smooth, uniform output
Theatrical grade dimming
Powerful – up to 9,500 lumens
Holographic spread lenses included to allow for three beam spreads
Adjustable 1,000K to 10,000K CCT
High CRI of 90
Exceptional fixture to fixture consistency
Made in North America
Built in power supply
Low energy consumption
Multi-Purpose
Fusing entertainment, theatrical and architectural lighting capabilities, the Inspire™ has the ability to seamlessly transform the look and feel of a performance venue, themed retail space or house of worship.
A Truly Creative Tool
Whether used in an entertainment, architectural or house of worship context, the Inspire™ provides designers with a tool to create environments that seamlessly transcend the physical barrier between the stage and audience through the creative use of light and colour. With Inspire, effects can range from a subtle shift in colour temperature, to bold and dynamic colour changes.
Colour
With RGBW colour mixing providing a high CRI of up to 90, the Inspire can achieve extremely accurate colour matching.
Convection Cooled
Inspire™ fixtures are passively cooled and have no fans or fan noise for quiet operation. Their low energy consumption means that they generate low amounts of heat.
DMX-512 Control
Using the Inspire™ house light's DMX-512 input, it is now possible to seamlessly map ceiling lighting, introducing gorgeous soft colour effects and warm amber looks to engage and captivate the room.
Camera Friendly
With an adjustable frequency from 1,200 - 9,600Hz, the Inspire™ house light is extremely camera friendly and can be adjusted to eliminate camera flicker and lens glare.
Optics & Dimming
The Inspire's custom optical design provides a smooth, uniform output, matched by theatrical grade dimming.
Technical specifications
Product Code: CHINHLRGBWXT / CHINHLRGBWXTW
Net Dimensions: (WxHxD) 181mm x 557mm x 181mm / 7" x 22" x 7"
Net Weight: 7.5 kg / 16.5 lbs
Shipping Dimensions: (WxHxD) 305mm x 661mm x 305mm / 12" x 26" x 12"
Shipping Weight: 9.5 kg / 21 lbs
Power & Connections
Power Supply: Built-in
Power Input Rating: 100-240V AC 50-60Hz 120VA
Power Factor: 0.9
Power Consumption: 135W @230W (Maximum Intensity) 7.5W @230W (Stand-By)
Residual current (max): 0.49mA
Idle Power Consumption: 6.2 W @110V, 7.5W @220V
Power Connectors: In/Out Terminal Block: plug-in screw connector (Input only)
Data Connector: In/Out Terminal Block: plug-in screw connector
Max cable run: N/A
Operating Temperature: 0°C to 40°C
Control Protocol: ANSI E1.11 USITT DMX 512-A
Cooling System: Convection
Construction: Anodised aluminium extrusion
Colour: Black / White
Built-In Hardware Mounting bracket (12.7mm / 1/2" diameter hole)
IP Rating: IP20
Approvals: CISPR 22/EN55022 & CISPR 24/EN55024, ICES-003 Issue 4:2004 / FCC Part 15 Subpart B:2010, CSA C22.2 No. 166-M1983: R2008, UL 1573:2003 (R2010), IEC 60598-2-17
Earth leakage 0.49mA
