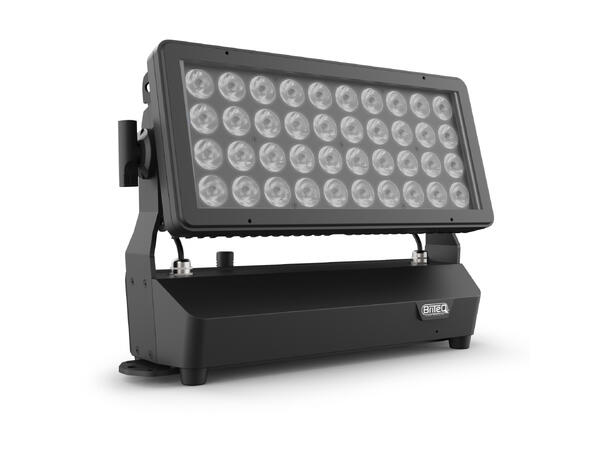

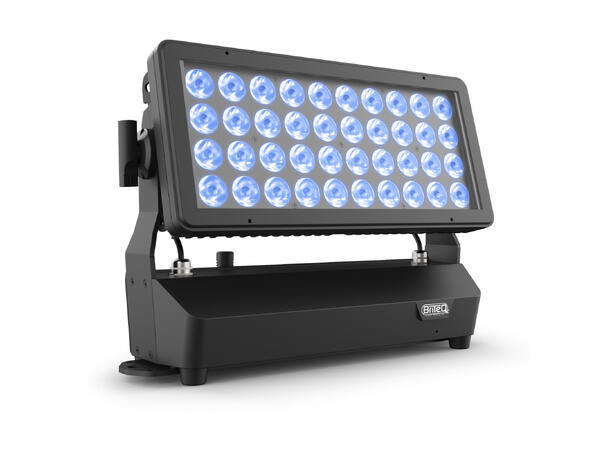

Powerful IP65 indoor and outdoor LED projector (40x 20W RGBL LEDs) for the entertainment and rental industry or fixed installations.
- Powerful indoor / outdoor IP65 LED projector engineered for maximum flexibility in different applications.
- Can be used for rental jobs, entertainment industry and fixed installations.
- 40pcs 20W RGBL-leds assure very high light output with perfect color mixing and excellent white light!
- RGB, RGBL and HSI-color control, both 8 & 16 bit resolution.
- Extremely multifunctional cabling options:
RENTAL / ENTERTAINMENT applications: standard equipped with 3pin XLR and lockable IP65-Power connector in/outputs for easy daisy chaining.

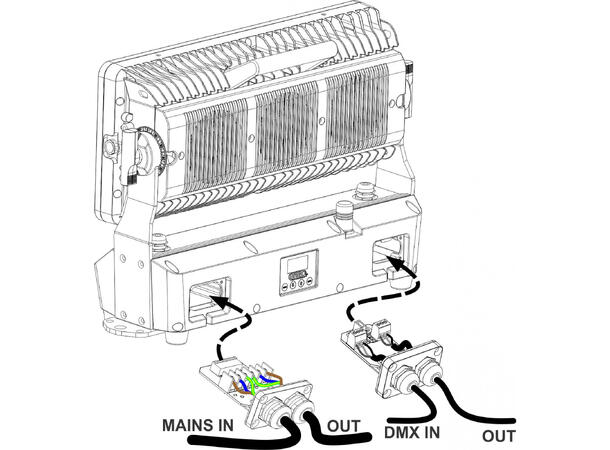

FIXED installations: with an optional set called “BT-CHROMA 800 - FIX install set” (POWER & DMX in/output modules with stainless- cableglands
+ 2 stainless-steel bolts for fixed TILT-positioning) the projector can very easily be transformed for permanent outdoor installation.
- Standard equipped with 15° optics and magnetic aluminum filter frame with frost filter.
- Different operation modes with 1, 2, 5 or 10 pixel combinations for nice special effects.
- Full DMX-control with RDM-support: from easy 3CH to sophisticated 81CH control
- Built-in antenna and Wireless Solution® G4 / G4S DMX-receiver (@ 2.4GHz) for easy setup and use.
- Standalone operation with static color & white presets, color fade and over 20 multi-pixel programs.
- Different accessories optionally available to obtain perfect results:

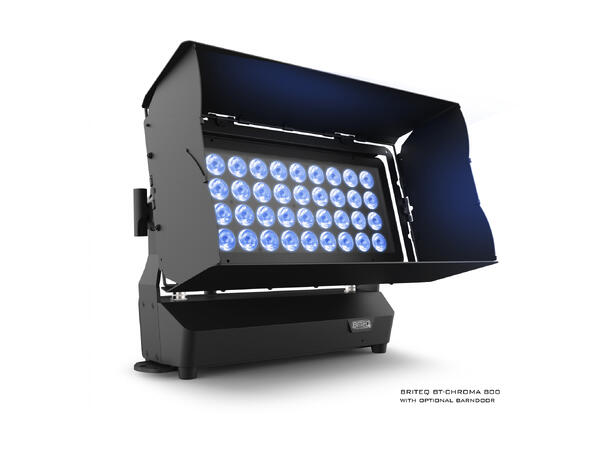

Barndoor: adjust the beam easily on stage

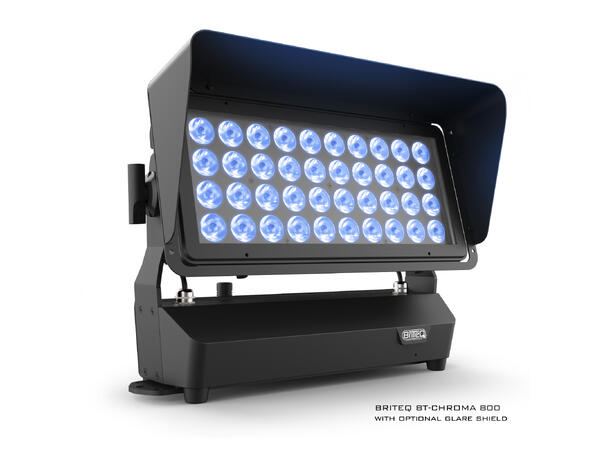

Glare shield: static beam limiter hides the LEDs and eliminates unwanted stray light

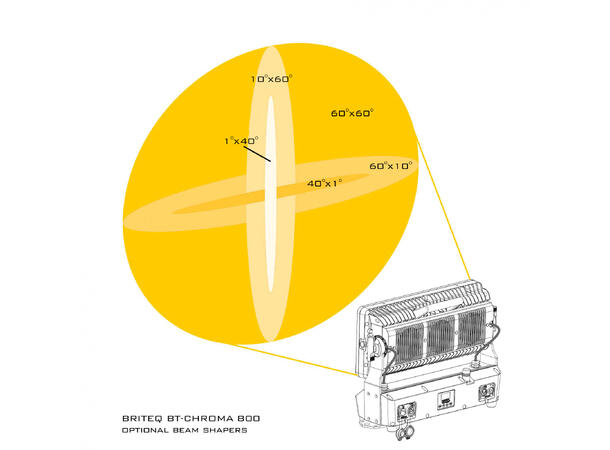

Different beam shapers: 60° - 60°x 10° - 10°x 60° - 40°x 1° - 1°x 40° to get the perfect beam!
Empty magnetic filter frame: to easily install the different beam shapers - Elegant, extruded aluminum housing finished with tempered glass cover.
- Solid and multifunctional base:
Truss installation: easy truss mounting, thanks to the included standard OMEGA brackets
Fixed installation: easy and secure mounting on any surface, using standard anchor bolts. - Optimal thermal management for long lifespan and easy maintenance
- Very silent operation, thanks to temperature controlled waterproof cooling fans.
- Alphanumeric OLED-display and waterproof touch keys to select different options of the setup menu.
- Adaptable lamp behavior thanks to seamless dimmer speed control.
- Four dimmer curves: linear, square, inverse square, S-curve
- In case of DMX failure, you can choose between blackout, freeze mode and automatic stand-alone mode.
- Lock function to avoid unwanted altering of the settings.
- Equipped with a special GORE® vent to prevent moisture and condensation inside the projector
Spesifications
- General : Application Architectural, DJ & Club, Stage & Rental, Theatre
- General : Series No
- General : Dimensions (cm) 45 x 15 x 31
- General : Weight (kg) 12.3
- General : Powerinput AC 100 - 240V, 50/60Hz
- General : Energy Label No
- General : Power consumption W 750
- General : Color black
- General : Display OLED
- General : Fixation included omega bracket
- General : IP rating outdoor
- Control : Modes standalone, manual, DMX Master/Slave
- Control : manual Yes
- Control : Master/Slave Yes
- Control : SMART-DMX No
- Control : Standalone automatic, fixed
- Control : programmable No
- Control : upgradable software Yes
- Control : maximum DMX channels 81
- Light : lamp socket none

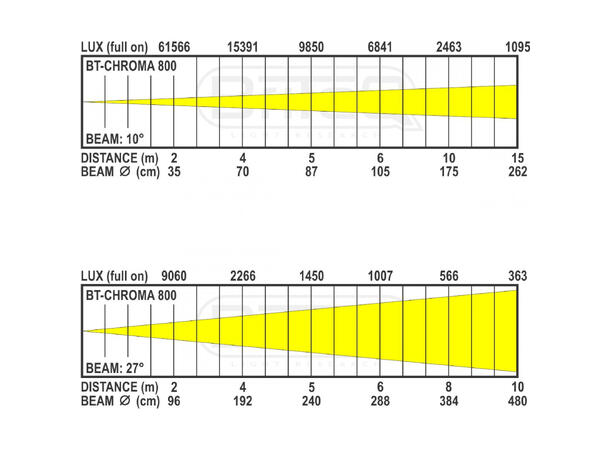

- Light : Lux 9850 @5m (beam 10°)
- Light : lamp LED
- Light : colors RGBL
- Light : mix colors Yes
- Light : functions manual frost
- Light : min. beam angle (°) 10
- Light : max. beam angle (°) 60
- Light : min. refresh rate (kHz) 3.6
- Light : max. refresh rate (kHz) 3.6
- Connections : input 3 pin XLR, Lockable IP65 Power Connector (Neutrik PowerCon® TRUE1 compatible), rdm, wireless DMX
- Connections : output 3 pin XLR, Lockable IP65 Power Connector (Neutrik PowerCon® TRUE1 compatible), rdm, wireless DMX
