NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

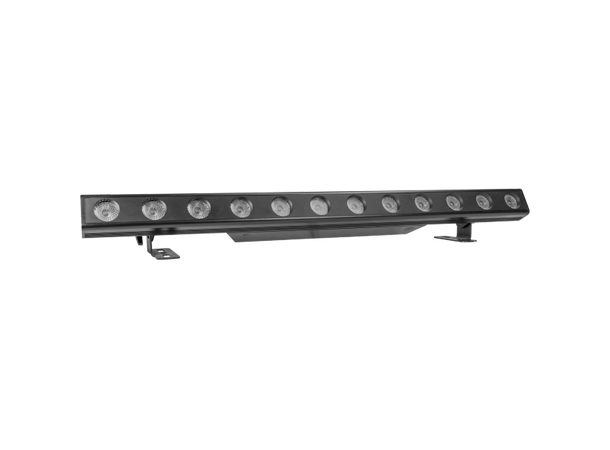

LUMIPIX12QTOUR is a 100 cm linear LED batten designed for professional use granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output make LUMIPIX12QTOUR a highly flexible and versatile solution for any kind of application or venue such as architectural, cyclorama, wall-washer, pixel effect or blinder.
Features:
12x10 W RGBW / FC high-power LED
Pixel control of every individual LED
PowerCON IN/OUT and XLR 5p IN/OUT
LIGHT SOURCE
Source: 12x10W RGBW LEDs
Luminous flux: without filter: 3'587 lm - with filter: 3'201lm
Lux: without filter: 2'358 lx - with filter: 2'070lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 25°
Field angle: 40°
Lens diameter: 45mm
Additional optics: 15° (opt) - 45° (opt)
Other: on board magnetic frost holder
COLOUR SYSTEM
Colour mixing: RGBW / FC
CTC: CTC control through dedicated DMX channel
White presets: 2.800 K - 10.000K
Colour wheel: virtual colour wheel with presets
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
Pixel patterns: pre-programmed dynamic and static patterns
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Hardware on-board: OMEGA sockets for quick rigging (clamp not included)
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512
DMX channels: 5 / 7 / 9 / 49channel
Pixel control: pixel2pixel control
Display: black OLED high resolution display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 7 different dimming curves available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 94,8W
Power consumption (at 120 V): 95,2W
Output (at 230 V): 27 units on a single power line
Output (at 120 V): 14 units on a single power line
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON IN/OUT connectors
IP rating: 30

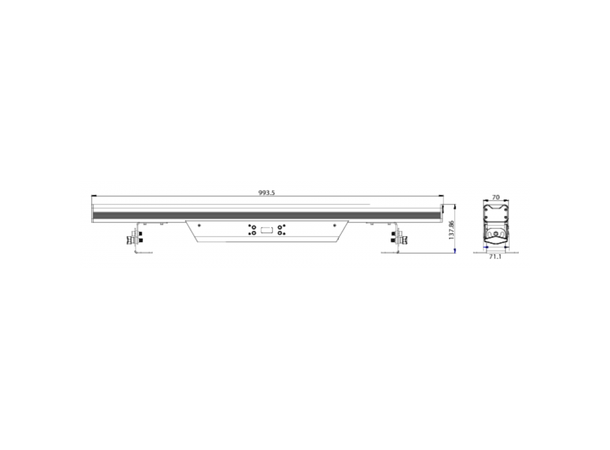

Dimensions (WxHxD): 994x138x70mm
Weight: 5,4kg
