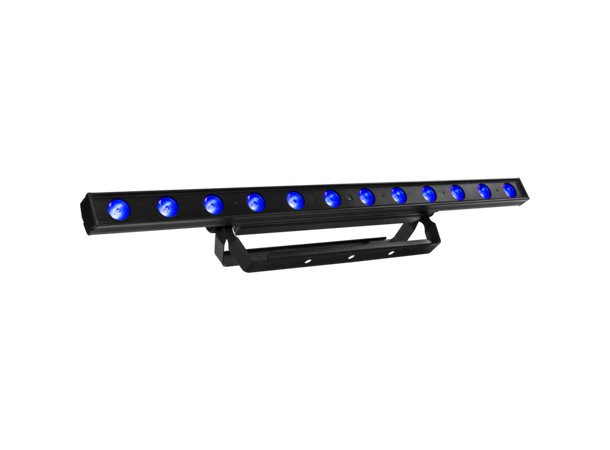

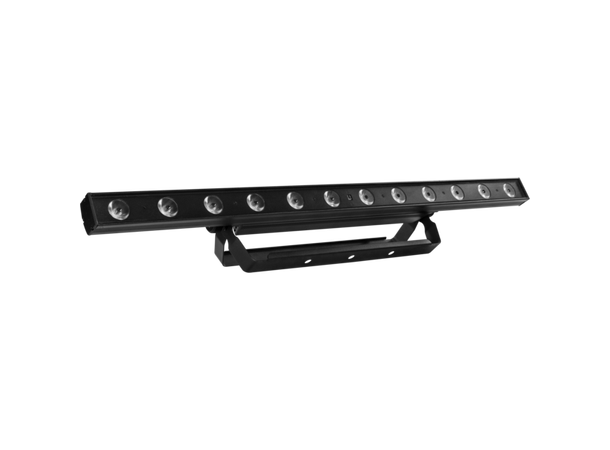

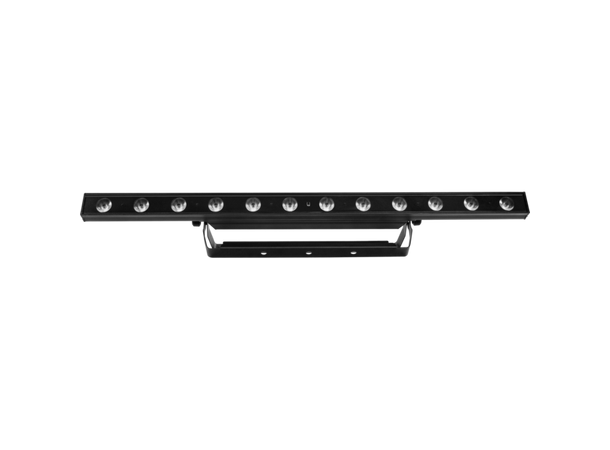

LUMIPIX12UQPRO is a 1 m long linear colour changer equipped with 12 high-efficiency RGBW / FC LED (8 W each). The control system is customisable allowing section control and advanced possibilities in effect generation such as LED video or sound activated arrays.
Features:
12x8 W RGBW / FC high-efficiency LED
Pixel control: section control
Advanced on-board effects generation
USB port for USB WIFI transceiver (optional)
Flicker-free operations
LIGHT SOURCE
Source: 12x8W RGBW LEDs
Luminous flux: 2'241lm
Lux: 1'813lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 19°
Field angle: 36°
Lens diameter: 38mm
Additional optics: 45° (optional)
COLOUR SYSTEM
Colour mixing: RGBW / FC
CTC: CTC control through dedicated DMX channel
Colour wheel: virtual colour wheel with presets
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Sound mode: music activation through internal microphone and sensitivity control
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512
DMX channels: 4 / 7 / 9 / 12 / 17channel
Pixel control: 1 / 3 section control
W-DMX: optional, proprietary protocol compatible with WIFIBOX, WDBOX
Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: 0° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 73,6W
Power consumption (at 120 V): 71W
Output (at 230 V): 18 units on a single power line
Output (at 120 V): 7
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Data: USB port for USB WIFI transmitter (optional)
Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Seetronic powerCON IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 1.000x56x168mm
Weight: 3,3kg
