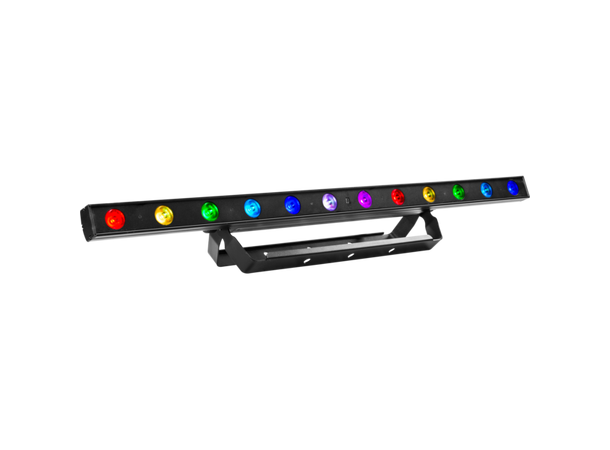

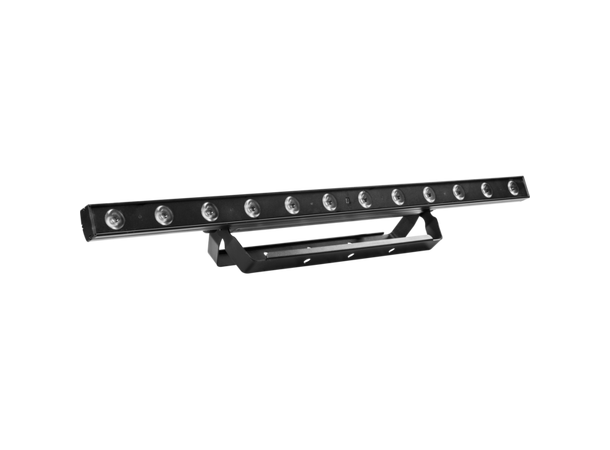

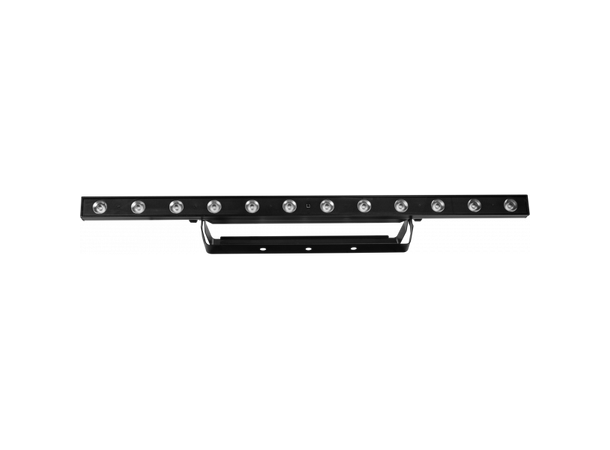

LUMIPIX12UT is a linear colour changer fitted with luminous high-efficiency 12x3 W RGB LED. The management system is fully customisable in line with the user requirements, from 3 to 41 channels management mode pixel control and for the independent control of each individual LED. LUMIPIX12UT offers advanced capabilities for effects generation such as video or LED arrays-activated music.

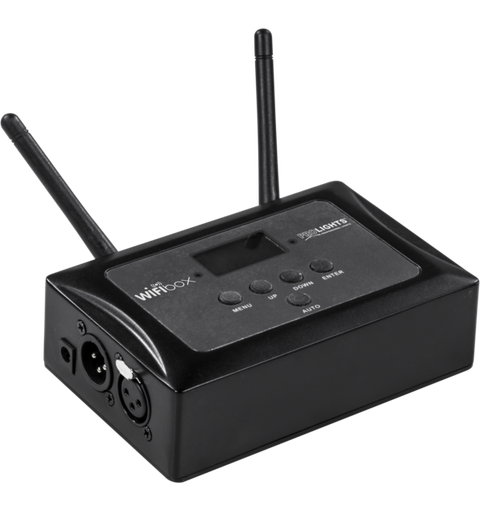

LUMIPIX12UT can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and SmartColor app.
Features:
12x3 W RGB LED
From 3 to 41 channels for easy or complex use
Pixel2pixel control

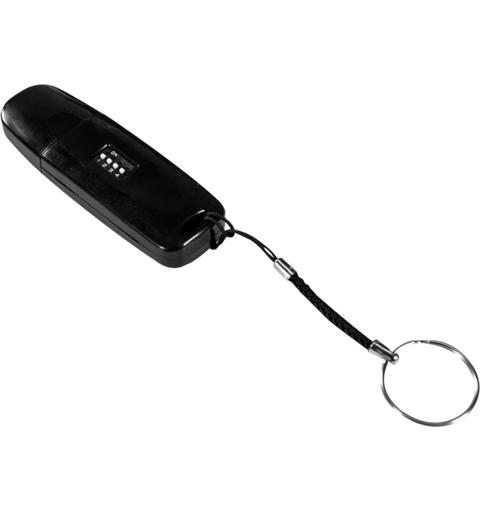

USB port for USB WI-FI transceiver (optional)
Flicker-free operations
LIGHT SOURCE
Source: 12x3W RGB LEDs
Luminous flux: 1'247lm
Lux: 1'172lx @3 m
Source life expectancy: > 50.000 h
OPTICS

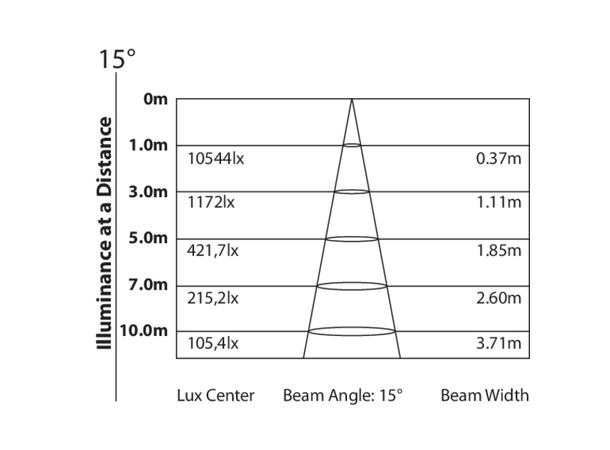

Beam angle: 15°
Field angle: 34°
Lens diameter: 42mm
COLOUR SYSTEM
Colour mixing: RGB / FC
Colour wheel: virtual colour wheel with presets
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Sound mode: music activation through internal microphone and sensitivity control
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
CONTROL
Protocols: DMX512
DMX channels: 3 / 4 / 6 / 7 / 8 / 9 / 12 / 18 / 36 / 41channel
Pixel control: pixel2pixel control
Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

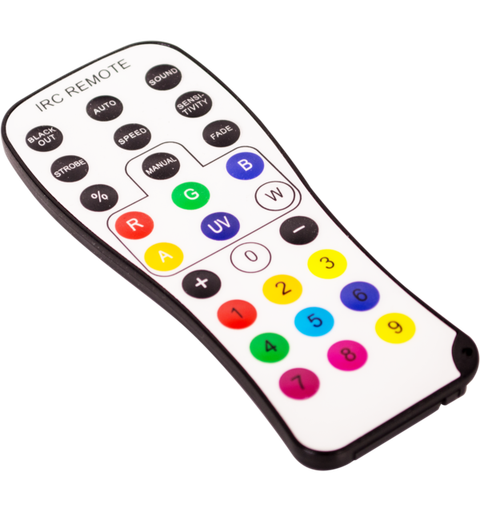

IR: infrared sensor controlled by remote
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 / 28
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 50,5W
Power consumption (at 120 V): 52,1W
Output (at 230 V): 47 units on a single power line
Output (at 120 V): 24
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Data: USB port for USB WIFI transmitter (optional)

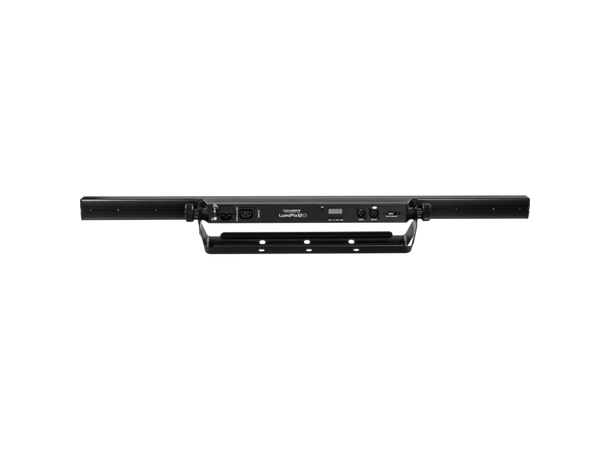

Signal connection: XLR 3p IN/OUT connectors
Power connection: IEC IN/OUT connectors
IP rating: 33
Dimensions (WxHxD): 987x49x157mm
Weight: 2,8kg
