NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

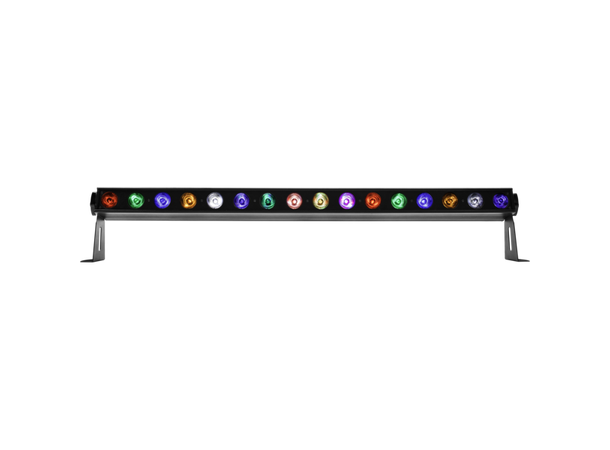

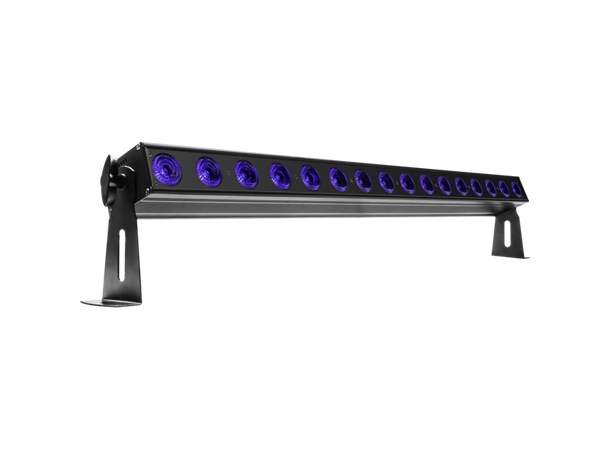

LumiPix 16H is a 100 cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LumiPix 16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.

Features:
LED batten with 16 individually controllable RGBAW + UV LEDs
Extensive colour palette and powerful output
Flicker-free operation for IMAG and broadcast

LIGHT SOURCE
Source: 16x12W RGBWAP LEDs
Luminous flux: 3'408lm
Lux: (15°) 1'986lx @3 m full
Source life expectancy: > 50.000 h

OPTICS
Beam angle: 22°
Field angle: 36°
Lens diameter: 42mm
Additional optics: 25° and 45° (optional)

COLOUR SYSTEM
Colour mixing: RGBWAP / FC
White presets: 3.200 K -10.000K
Colour wheel: virtual colour wheel with presets
Macros: several pre-build pixel macros with adjustable speed

DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY
Body: sturdy aluminum profile
Body colour: black

CONTROL
Protocols: DMX512
DMX channels: 3 / 6 / 8 / 12 / 96 / 101channel
Pixel control: pixel2pixel control
Display: LCD display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1-25 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation

ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 164W
Power consumption (at 120 V): 166W
Output (at 230 V): 12 units on a single power line
Power factor: pF 0,99 @120 V - pF 0,94 @230 V

PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: hanging bracket suitable for safe hanging and positioning

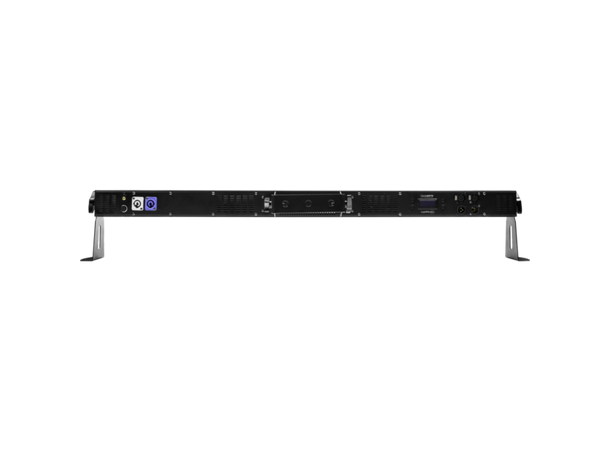

Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
IP rating: 33
Dimensions (WxHxD): 1.000x180x63mm
Weight: 5,1kg
