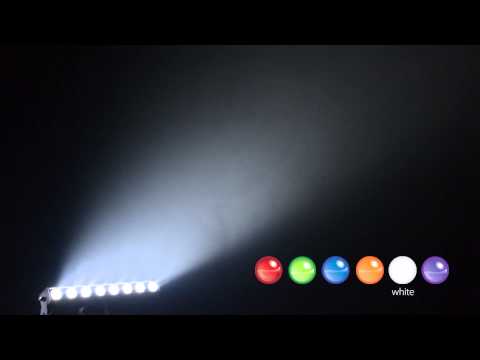

Lumipix 8H is a linear 50 cm LED batten designed for professional use, employing an innovative optical system combined with a new light source performing 6 primary colour mixing, RGBWAP full colour, granting unprecedented chromatic performance. The super-slim design combined with the extreme colour precision and light output make Lumipix 8H a flexible and versatile solution for every kind of application or within venues as their architectural, cyclorama, wall-washer, pixel effect or blinder.
Features:
LED batten with 8 individually controllable 12W RGBWA + UV LEDs
Extensive colour palette and powerful output
Flicker-free operation for IMAG and broadcast
LIGHT SOURCE
Source: 8x12W RGBWAP LEDs
Luminous flux: 2'065lm
Lux: (15°) 1'214lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 22°
Field angle: 36°
Lens diameter: 42mm
Additional optics: 25° and 45° (optional)
COLOUR SYSTEM
Colour mixing: RGBWAP / FC
White presets: 3.200 K -10.000K
Colour wheel: virtual colour wheel with presets
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512
DMX channels: 3 / 6 / 8 / 12 / 48 / 53channel
Pixel control: pixel2pixel control
Display: LCD display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 85W
Power consumption (at 120 V): 87W
Output (at 230 V): 16 units on a single power line
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: hanging bracket suitable for safe hanging and positioning
Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
IP rating: 33
Dimensions (WxHxD): 582x80x183mm
Weight: 3,3kg
