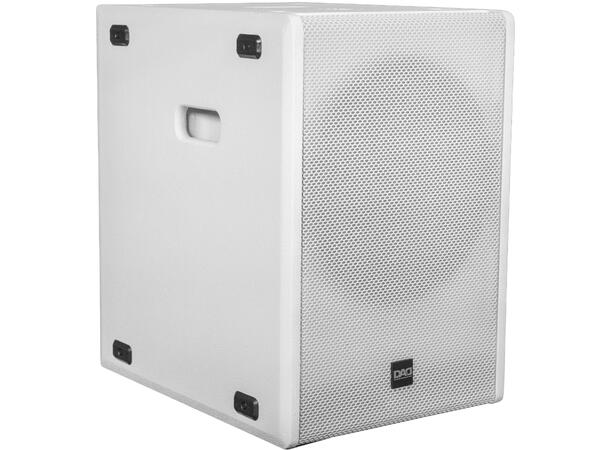

Bass reflex passive subwoofer, 400 W AES,125dB SPL
Features:
Low frequency: 12'' woofer/3'' v.c
Frequency response: 40-200 Hz (±3dB)
ARK112SP subwoofer speaker is the ideal complement to column loudspeakers for reinforcing low notes.
Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
LOUDSPEAKER
System type: passive subwoofer
COMPONENTS
Low frequency: 12'' woofer/3''v.c.
FEATURES
AES/program power: 400/800W
SPL max: 125dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
Sensitivity: 96dB
Impedance: 8
SPL cont/peak: 119/125dB @1m (free field)
Frequency response: 40-200Hz (±3dB)
Coverage angle HxV: ° omnidirectional
Suggest LPF range: 100/160Hz
Recommended amplifier up to: 800W

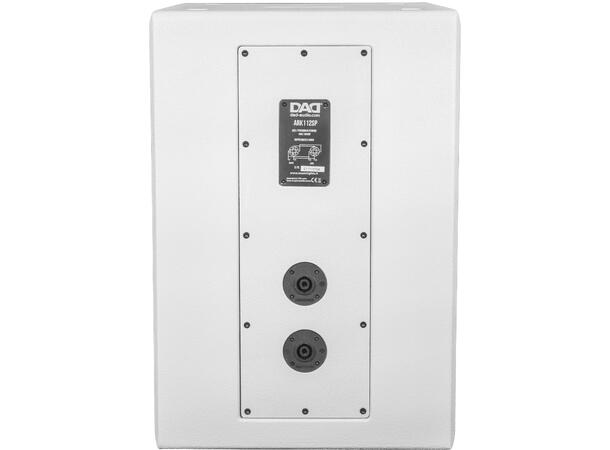

INPUT/OUTPUT CONNECTORS
Input signal: jack 6.35 mm, NL4 IN/OUT
CABINET CONSTRUCTION
Cabinet material: 15mm plywood
Sospension system: support with signal connection
Handles: 2 on side, 1 top
PHYSICAL
Dimensions (WxHxD): 362x520x470mm
Weight: 21.9kg
