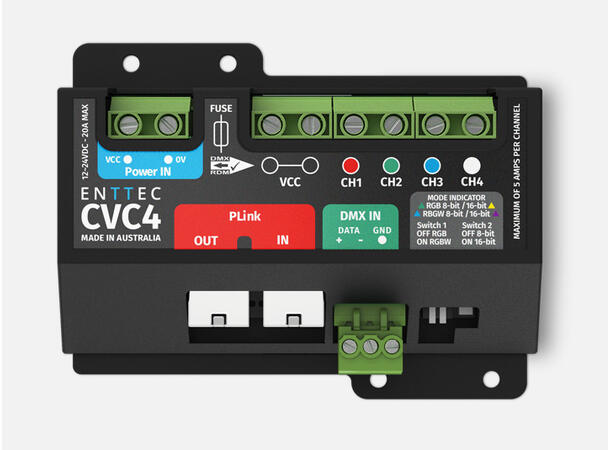

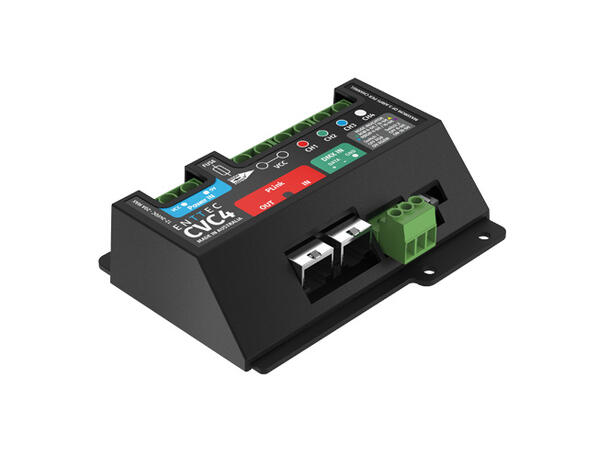

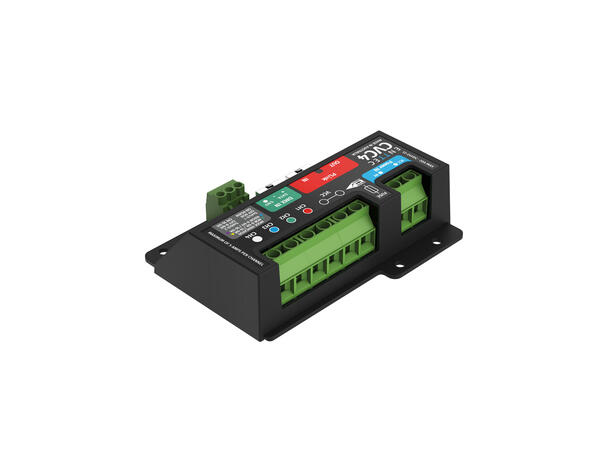

Designed and made in Australia, the CVC4 is the next evolution of the ENTTEC constant voltage LED dimmer, building upon the CVC3 and DIN-LED4PX.
Capable of controlling up to 20A across its four 5A channels at either a 16- or 8-bit resolution, the CVC4’s ultra-smooth dimming, auto-addressing functionality and simple mode selection make it one of the most comprehensive yet versatile LED dimmers imaginable. With its rugged, black ABS body featuring in-built surface-mount tabs, or an attachable TS35 DIN rail adaptor, it’s fast, easy and versatile to install. The CVC4’s solid-state, fanless design also means it’s virtually silent when in operation. A user-serviceable blade fuse to protects against short circuits., whilst it also has the ability to detect temperature and limit the LED output to reduce overheating.
The CVC4 has been engineered to bring the ultimate in installer-friendly flexibility and fast deployment when constructing a constant voltage LED strip project.
Features
- 12-24V input (20A maximum).
- Dim constant voltage (CV) LED strip (4 x 5A per channel maximum).
- Huge 1KHz PWM signal refresh rate.

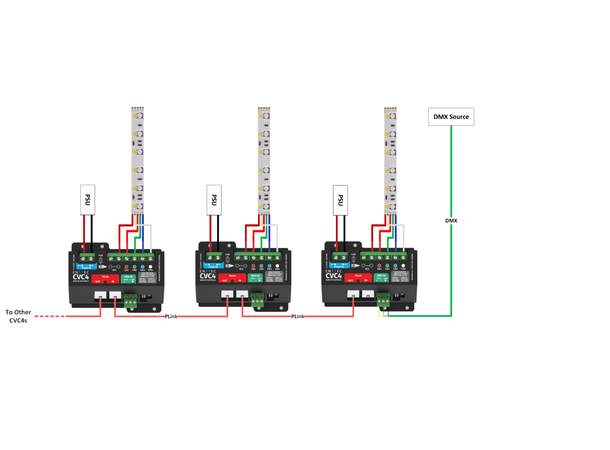

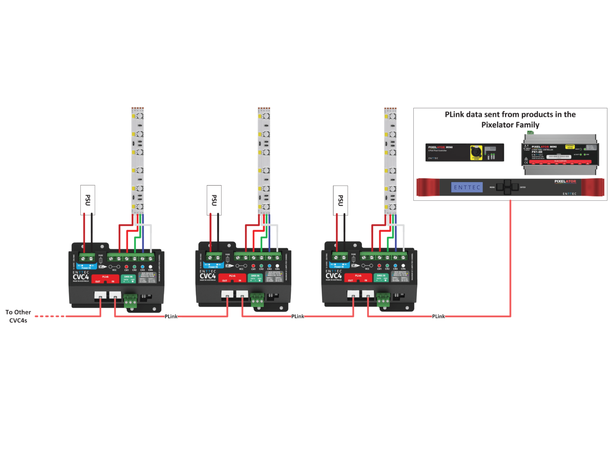

- PLink in and out connector for auto-addressing (each unit can be spaced up to 300m away from the next when using PLink over Cat6 cable).

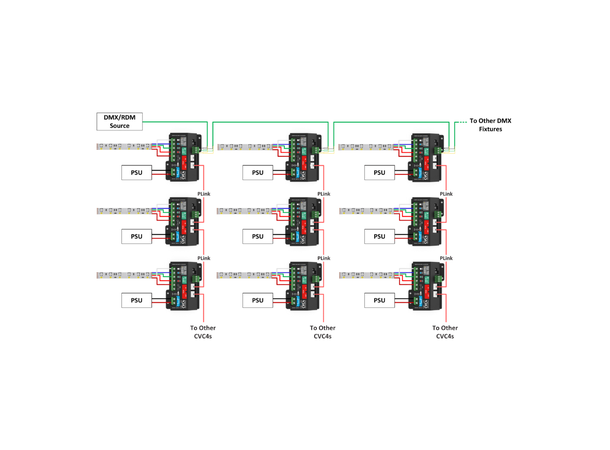

- Single DMX connector for DMX/RDM input, or chaining between devices.
- Convert DMX to PLink on each device – changing the address of the first CVC4 in the chain will update the rest of them.
- Status LED and mode selection DIP switch to toggle between bitrate and RGB/RGBW operating modes.
- User-serviceable fuse to protect against short circuits.
- Passive cooling with internal overheating protection.

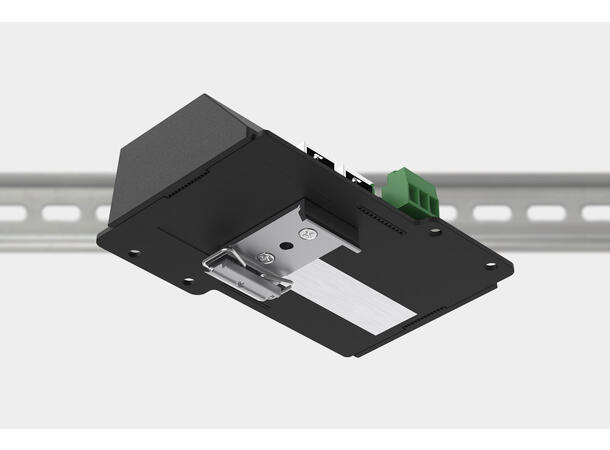

- Compact design with integrated M4 surface mounting holes or TS-35 DIN rail mount.
