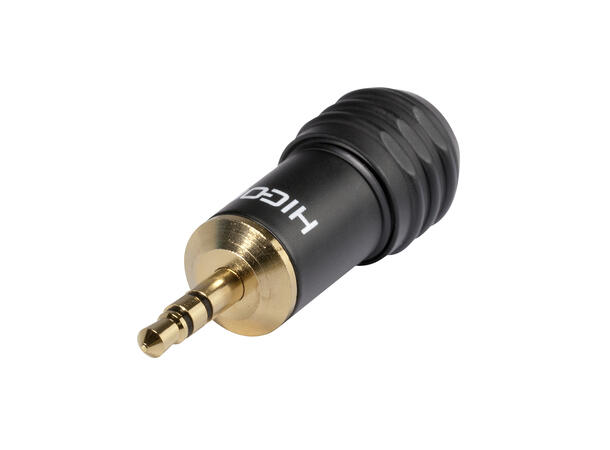

HICON HI-J35S04 3.5mm MiniJack han Stereo. For kabel Ø4-6.8mm

HICON HI-J35S04 3.5mm MiniJack han

Stereo. For kabel Ø4-6.8mm

Varenr: 147531
Alt. varenr: HI-J35S04
186,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Little big man

The 3.5 mm (1/8“) mini jack connectors can be used on countless compact devices like MP3 players, sound cards, bodypacks etc. Here the HICON range offers a wide array of special features such as those versions• with screw lock for mobile applications (e.g. bodypacks)• with big cable holder (for twin cables, thick cables)• with chuck strain relief (for high tensile forces)• with 6.3 mm (1/4“) screw adapter (for headphones etc.)• 90° angled All variants have genuine gold-plated solid pins and come with a 5-year warranty.


Advantages:

  • With soldering lug and chuck strain relief.


Specifications:

Article numberHI-J35S04
EAN4049371812290
BrandHICON
Applicationaudio
Colourblack
Colour detailedblack
ModelMini-jack (3,5mm)
Style variantstraight
Gendermale
Materialmetal
Codingnone
Codableyes
Pole number3-pole
Connector / Socketmale connector
Type of contactSoldering
Contact coatinggold plated
MountingCable
Cable diameter min. mm4
Max. cable diameter mm6,8
Available sinceV07.0
