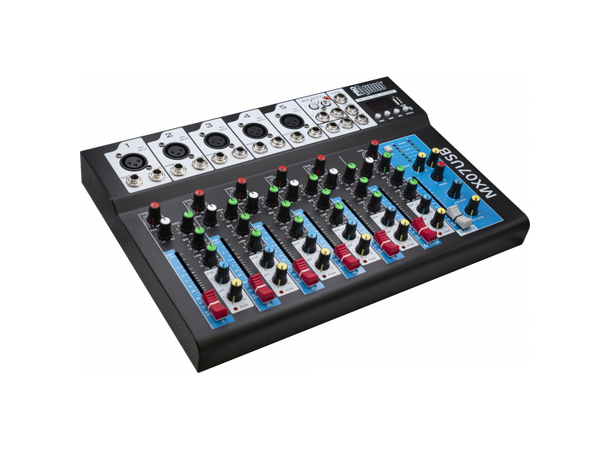

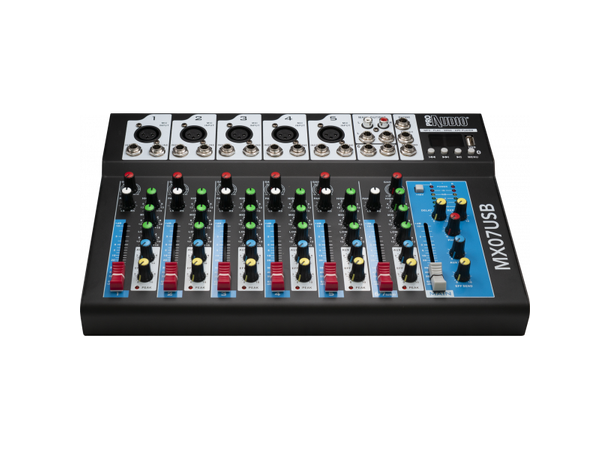

MX07USB is a versatile mixer with 7 inputs and 2 outputs. It's equipped with player that accepts FLAC WMA APE MP3 formats - with display and Bluetooth connection. It's provided with low-noise quality preamps, an effective 3-band equalizer and phantom power.
Two channels can be adjusted independently and another 2 can be used as stereo channels.
The master section of the mixer has 1 effect loop, balanced 6.35 mm jack outputs, monitor outputs, as well as a headphone connection. MX07USB is also equipped with RCA connectors for recording devices.
Features:
Channels: 7 input - 2 output
Media player: MP3 FLAC WMA APE player - Bluetooth
Effects: Reverber
Phantom power: 48 V
Phone output: 350 mW
60 mm fader
MIXER
Channels: 7 input - 2 output
Mic input: Balanced
Gain range: +6 dB /+ 60dBdB
SN/R: 120dB
Line input: Balanced
Gain range: -14 /+ 40dB
SN/R: 95dB
Stereo Channels: Balanced, Ch 6-7
Gain range: -20 /+10dB
AUDIO SOURCE
Type: MP3 FLAC WMA APE player - Bluetooth
AUDIO SPECIFICATIONS
Frequency responce: 20 to 25.000 Hz +-1dBHz
Output level/impedance: +26 dBu bal./+22 dBu unbal./600 Ohm
Tape out: +22 dBu unbalanced
Phones output: 350 mW/(150 - 600)Ohm
POWER SUPPLY STAGE
Type: External power supply
Operating voltage/frequency: 100/240V, 50/60Hz
FUNCTIONS
Reverberation: Yes
Tone controls input: 80 Hz, 2.5kHz, 12kHz (±15dB)
Phantom power: Ch1-2-3-4-5/48V
INDICATORS
Indicators: peak in, output -10dB, -6dB, -2dB, 0dB, +6dB
INPUT/OUTPUT CONNECTORS
Input signal: XLR/Jack bal. pin RCA unbal
Output signal: jack 6.35 mm
Power connection: VDE
PHYSICAL
Dimensions (WxHxD): 331x45x240mm
Weight: 2.6kg
