Ceiling speaker for recessed mounting, ideal for vocal announcements and reproduction of background music.
Features:

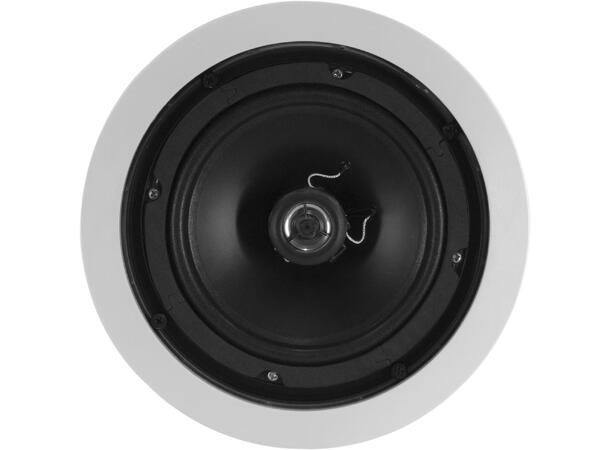

High-efficiency speaker (diameter 165 mm / 6.5”) with 1” tweeter.

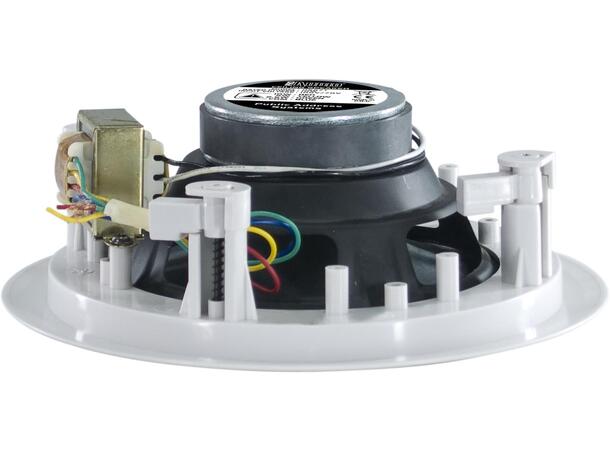

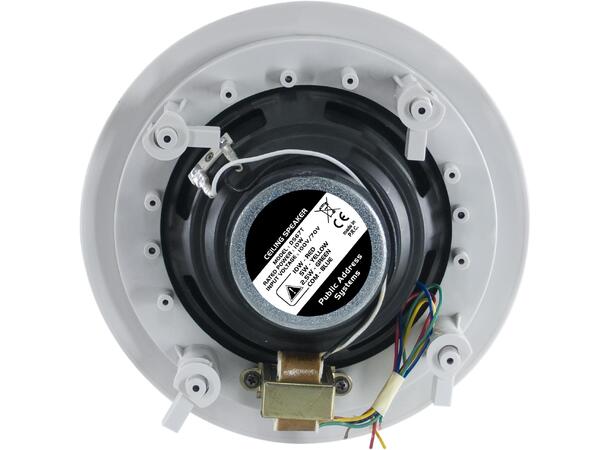

Built-in line transformer with multiple output connections for 70/100 V constant voltage lines.

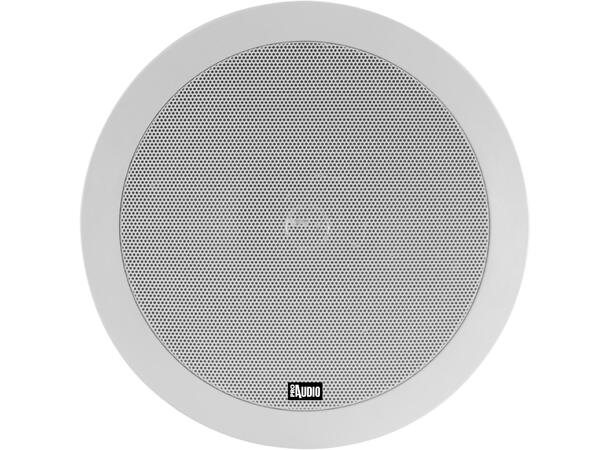

White ABS body and metal protection grid.
Quick and easy installation by a special holding system, with no need of screws or other attachment elements.
LOUDSPEAKER
System type: ceiling speaker
COMPONENTS
Low frequency: 6.5''
High frequency: 1''
FEATURES
AES/program power: 10/20W
Input 100 V: 2.5/5/10W
ACOUSTICAL SPECIFICATIONS
Sensitivity: 93dB @1W/1m (free field)
Constant voltage: 70/100 V
Frequency response: 60÷20.000Hz (±3dB)
INPUT/OUTPUT CONNECTORS
Input signal: terminal with wire
PHYSICAL
Weight: 1.42kg
Diameter Ø: 230x60mm
Flush-mounting hole Ø: 200mm
