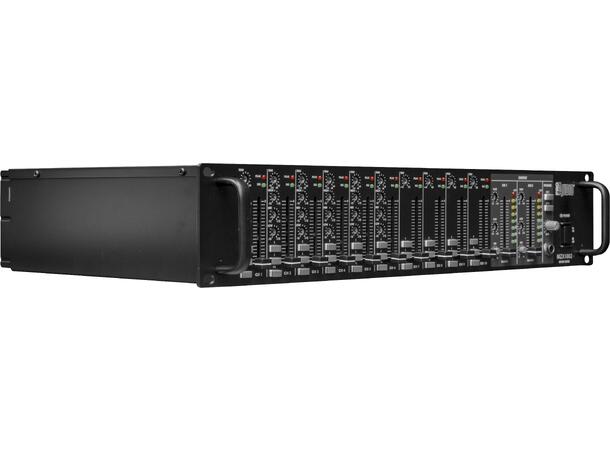

MZX1002 is a 2-Zone, 2U rack, equipped with 10 inputs and 2 assignable outputs.

Features:
It is suitable for installation where specific sound is required in different areas.
Mic 1 and 2 inputs have phantom power and priority function.
Gain adjustment trimmer on each channel and 3-band tones control for 1-6 channels.
Output with LED indicators and 2-band tones control.
Zone audio monitoring through headphone output.

MATRIX MIXER
Channels: 10 input - 2 output

AUDIO SPECIFICATIONS
Output level/impedance: 0dB/600Ohm balanced
Frequency responce: 20- 20000Hz @ 8 Ohm (±0.5 dB)
THD+N: <0.1%
Input impedance: 20kO
Signal/Noise rate: >90dB

POWER SUPPLY STAGE
Type: Switching
Operating voltage/frequency: 230 V AC (+/- 5%) / 24 V DC

FUNCTIONS
Input sensitivity: mic. (-60dB ~ -6dB), line (-30dB ~ +14dB)
Tone controls input: 80 Hz, 2.5kHz, 12kHz (±15dB)
Tone controls output: 100 Hz, 10kHz (±15dB)
Phantom power: Mic1, Mic.2, +18

INDICATORS
Indicators: sig, peak for each in and sig, -20dB, -10dB,0dB - clip for each out

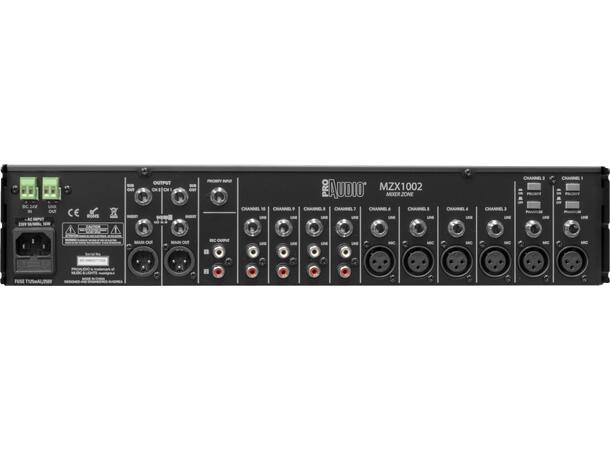

INPUT/OUTPUT CONNECTORS
Input signal: XLR/Jack bal. pin RCA unbal
Output signal: XLR/Jack bal. pin RCA unbal.
Power connection: VDE

PHYSICAL
Dimensions (WxHxD): 482x88x325mm
Rack unit: 2
Weight: 5.3kg
