NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

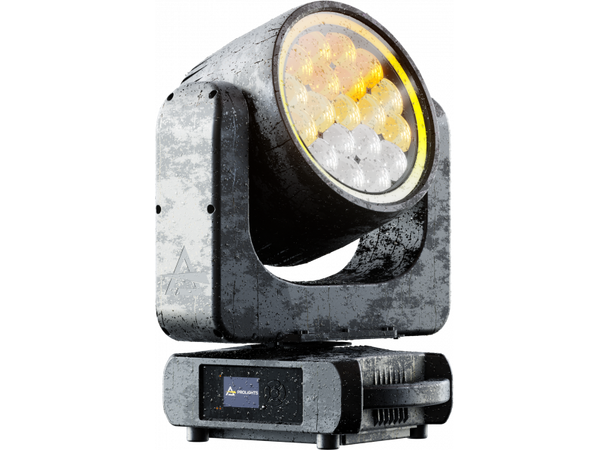

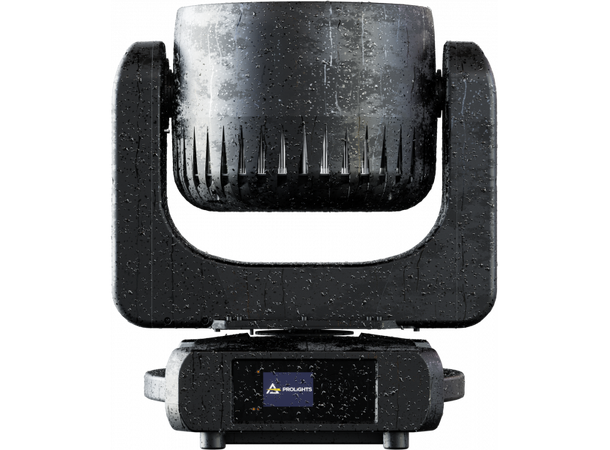

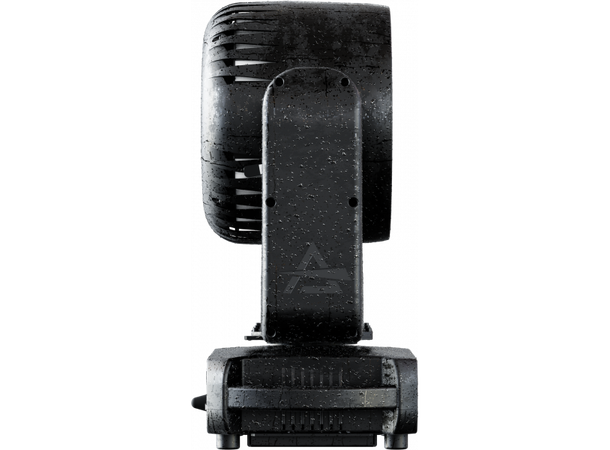

The Astra Wash19PixIP is an IP65 LED moving wash light, designed to be a workhorse for any large outdoor stage or installation, offering a robust and sealed mechanical assembly but keeping the same features and performance than its indoor version.
This moving washlight is equipped with 19x40W Osram RGBW LED light source, and an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application as aerial FX or wash light.
The Astra Wash19PixIP is single pixel controllable, with multiple on-board FX, along with precise and advanced white and colour control, all through DMX/RDM, CRMX+W-DMX, Art-Net and sACN.
Features:
IP65 with a compact form factor and fast movements
Zoom from 4° to 54° with a high-optical efficiency
Pixel control, precise white CCT, multiple FXs and colour features
LIGHT SOURCE
- Source: 19x40W RGBW Osram Ostar LEDs
- Luminous flux: (4°) 5'505 lm - (54°) 10'143lm @full
- Lux: (4°) 45'146 lx - (54°) 1174lx @5 m full
- Other: outer RGB pixel ring with frost film
- Source life expectancy: > 50.000 h
OPTICS
- Zoom: 4° - 54° motorised linear zoom
- Lens type: honeycomb gapless plano-convex optics
- Additional optics: optics: diffuser on outer pixel ring
COLOUR SYSTEM
- Colour mixing: RGBW / FC
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.800 K ~ 10.000K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer, colours
- Pixel patterns: pre-programmed dynamic and static patterns
- FX generator: adjustable foreground/background colour, index, speed, direction
- Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
- Pan angle: 540°
- Tilt angle: 233°
- Feedback: automatic repositioning after accidental movement
- Body: weatherproof IP65 construction
- Body colour: RAL 9004
CONTROL
- Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
- DMX channels: main personality 29 / 32 / 53channel
- Pixel control: OFF, ring and pixel2pixel
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: LCD high resolution colour display with autoflip
- Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -20° ~ +45°
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 750W
- Output (at 230V): 3 units on a single power line
- Power factor: > 0,95
PHYSICAL
- IP rating: 65 for temporary outdoor use (*)
- Cooling: forced air with fan
- Suspension and fixing: any position with quick-lock omega brackets
- Pan / tilt lock: for transportation and maintenance

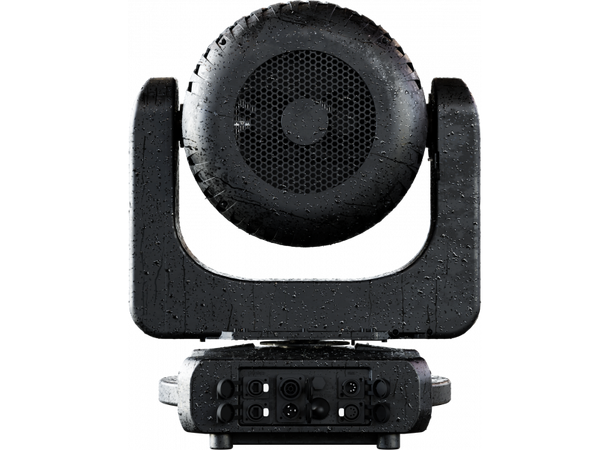

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Data connection: Neutrik Art-Net RJ45 IN/OUT
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 457x578x266mm
- Weight: 25kg
- (*)NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
- 1 x ASTRAWASH19PIXIP
- 1 x Antenna
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- 2 x OSIP
- User Manual
