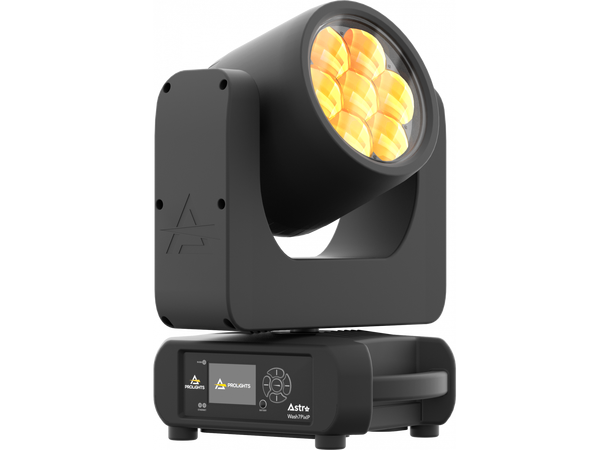

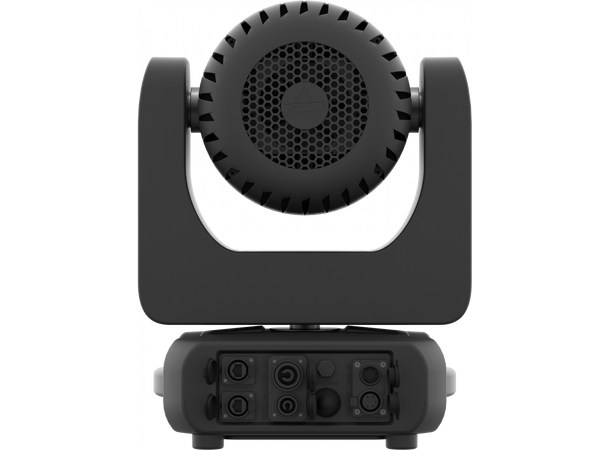

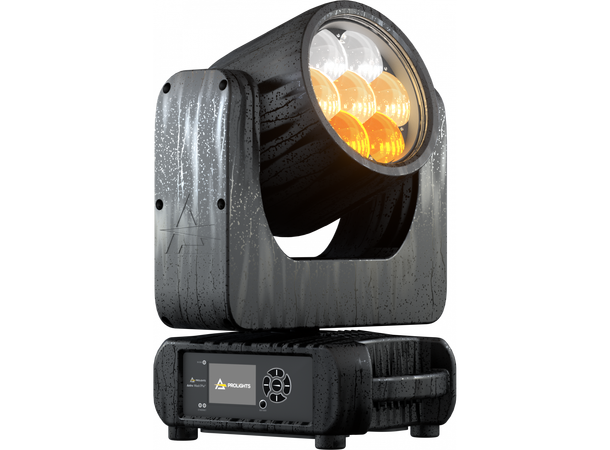

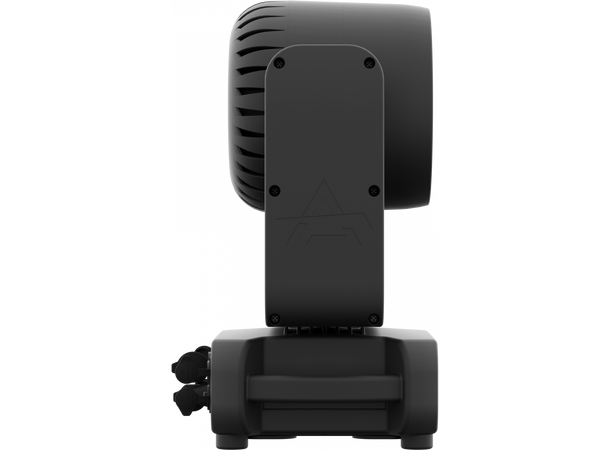

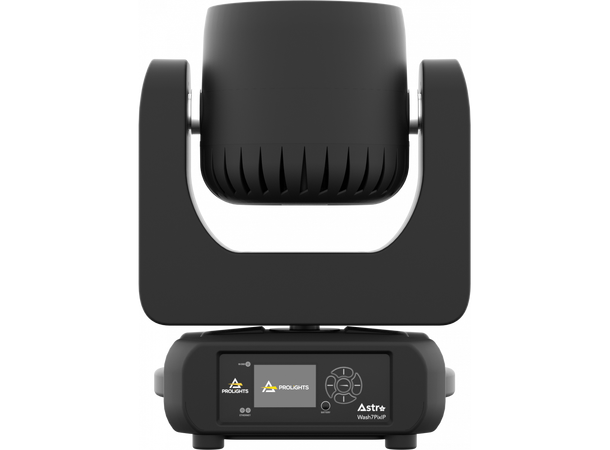

The Astra Wash7PIXIP is an IP65 LED moving wash light, designed in a small and lightweight body, with the same features and performances than its indoor version.
This fixture has a 7x40W Osram RGBW LED light source, and an extremely high-efficiency optical system capable of zooming from 4° to 56°, making this luminaire extremely versatile for any application as a beam or wash light. The Astra Wash7PIXIP is single pixel controllable, with multiple on-board FX, along with precise and advanced white and colour control, all through DMX/RDM, W-DMX, Art-Net, sACN and Kling-Net.
LIGHT SOURCE
- Source: 7x40W RGBW Osram Ostar LEDs
- Luminous flux: (4°) 2'013 lm - (56°) 3'543lm @full
- Lux: (4°) 18'360 lx - (56°) 364lx @5 m full
- Source life expectancy: > 50.000 h
OPTICS
- Zoom: 4° - 56° motorised linear zoom
- Lens type: honeycomb gapless plano-convex optics
- COLOUR SYSTEM
- Colour mixing: RGBW / FC
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.800 K ~ 10.000K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Pixel patterns: pre-programmed dynamic and static patterns
- FX generator: adjustable foreground/background colour, index, speed, direction
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
- Pan angle: 540°
- Tilt angle: 233°
- Pan/Tilt resolution: 16bit
- Feedback: automatic repositioning after accidental movement
- Body: weatherproof IP65 construction
- Body colour: RAL 9004
CONTROL
- Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
- DMX channels: main personality 24 / 27 / 39channel
- Pixel control: OFF, ring and pixel2pixel selectable options
- Wireless Control: included, Wireless Solution transceiver
- RDM: RDM for remote monitoring and settings
- Display: LCD high resolution colour display with autoflip
- Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -20° ~ +45°
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 220W
- Output (at 230V): 13 units on a single power line
- Power factor: > 0,93
PHYSICAL
- IP rating: 65 for temporary outdoor application, not for fixed installation
- Cooling: forced air with fan
- Suspension and fixing: any position with quick-lock omega brackets
- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Data connection: Seetronic Art-Net RJ45 IN/OUT
- Power connection: Seetronic powerCON TRUE IP65 IN
- Dimensions (WxHxD): 300x424x213mm / 11.81''x16.69''x8.39''
- Weight: 13,2kg / 29.1lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
- 1 x ASTRAWASH7PIXIP
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- 2 x OSIP
- 1 x Antenna
- User Manual
