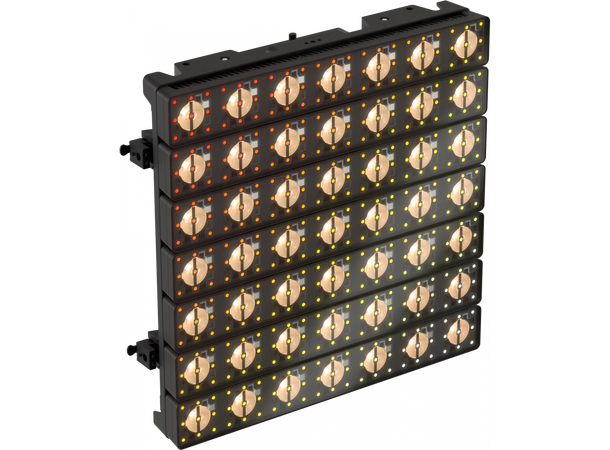

500W IP65 dual layer LED matrix panel with 7x7 2700K 4° Beams + 21x21 RGBWW pixels
The HaluPix DUO is a dual layer LED matrix that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside high-brightness video and strobe features, with full pixel-level control. This integration facilitates diverse and dynamic lighting setups, suitable for a variety of professional stages and TV applications.

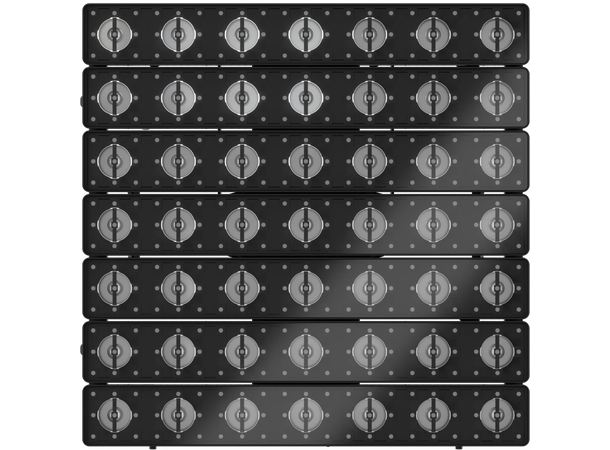

Each unit of HaluPix DUO is a 50x50cm (20x20 inches) building block. It comprises two distinct layers of light sources: 441 (21x21) RGB+WW pixels with a 120° beam spread, and 49 (7x7) WarmWhite 4° beam sources. The total power draw is 500W, which can be distributed between either or both groups of light sources according to user preference. Additionally, each emitter is individually pixel controllable, enabling the display of video content on either one or both sources. This offers exceptional brightness and unmatched colors.

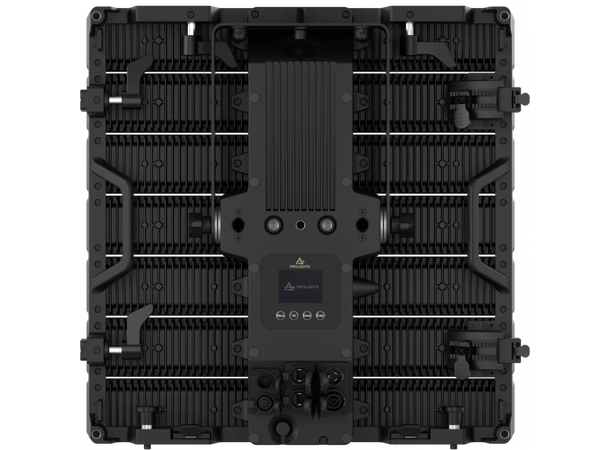

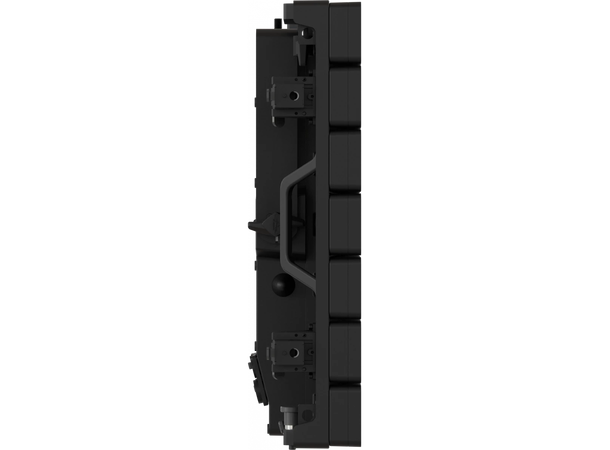

The modular frame of HaluPix DUO, akin to LED tile structures, allows seamless interlocking of multiple units. This maintains a consistent pixel pitch across both source groups when using several devices. The frame is designed for versatility, supporting various configurations such as flat or curved, hanging or ground stacking.
HaluPix DUO also excels as an all-weather lighting solution. Its IP65-rated design ensures reliability and durability in both indoor and outdoor applications, protecting against water and dust.
In terms of connectivity, HaluPix DUO comes with an integrated power supply and user interface. It supports a variety of lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering unparalleled flexibility for any setup.
500W IP65 dual layer LED matrix panel, 441x RGBWW pixels and 49x 2700K beams
Seamless modular frame for flat, curve, hanging / ground, on yoke configurations
DMX, RDM, sACN, Art-net and RDMnet protocols supported
Technical specifications
LIGHT SOURCE
Light source: 7 x 7 4° 2700K LEDs + 21 x 21 120° RGB+WW LEDs
Luminous flux: 11'388 lm (total) @Full
Luminous flux: 7'391 lm (beam layer) | 12'555 lm (pixel layer) @Full
Lux: (total) 23'686 lxlx @5 m full
Lux: (beam layer) 51'268 lx | (pixel layer) 173lx @5 m full
CRI: (beam layer) > 80 @2700K; (pixel layer) 94 @3200K; 91,5 @5600K
R9: (pixel layer) 94,8 @3200K; 95,8 @5600K
Source life expectancy: > 30.000 h
OPTICS
Beam angle: (beam layer) 3,6°; (pixel layer) 116°
Field angle: (beam layer) 6,8°; (pixel layer) 155°
Additional optics: available optional optics for beam LEDs 12°, 24°
Other: Pixel pitch (BEAMs) 72 mm | (PIXELs) 24 mm
COLOUR SYSTEM
Colour mixing: (beam layer) Warm White (2700K), (pixel layer) RGB + Warm White
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer, colours
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Static mode: selection of static dimmer, colors and color temperature
BODY
Bracket system: spigot for tripod use and bracket for truss rigging
Hardware on-board: on board mechanics for modular assembly of multiple fixtures
Body: weatherproof IP65 construction with magnesium alloy
Curve configurations: -10° to +15° with onboard mechanics - back accessories for ground applications compatible with KAPPAX Ledwall
Body colour: black
CONTROL
Protocols: DMX512, RDM, ArtNet, RDMnet, sACN, CRMX
DMX channels: from 12 channels to 1855channel
Pixel control: pixel2pixel control
Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via Ethernet (Art-Net with DMX-Workshop)
Master/Slave: for synchronised operation of more units linked in a chain
EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: up to 6 independent selectable dimmer curves per source
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 500W
Standby power: 14,8 W
Output (at 230V): 4 units on a single power line
Output (at 120V): 2 units on a single power line
Power factor: > 0,94
PHYSICAL
IP rating: 65 for temporary outdoor application, not for fixed installations
Cooling: passive cooling and fan-free
Suspension and fixing: spigot for tripod use, bracket for truss rigging and hardware for connection of more units
Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
Data connection: Seetronic Ethernet IP in/out connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD): 500x500x133mm / 19.69''x19.69''x5.24''
Weight: 16,3kg / 35.94lbs
CERTIFICATIONS / APPROVALS
BOX CONTENT
