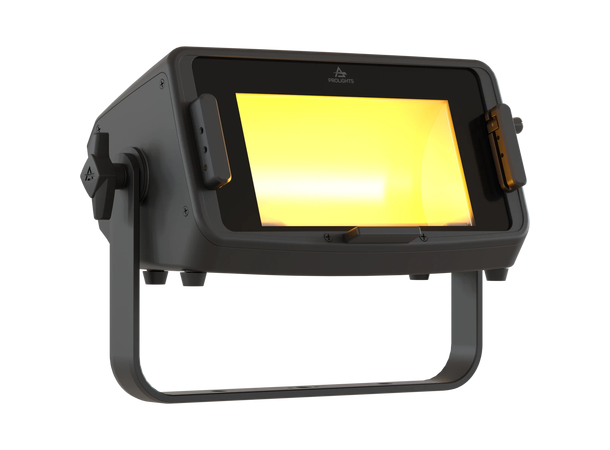

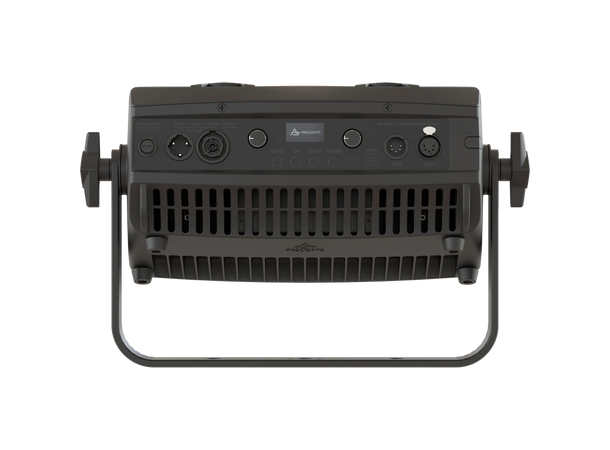

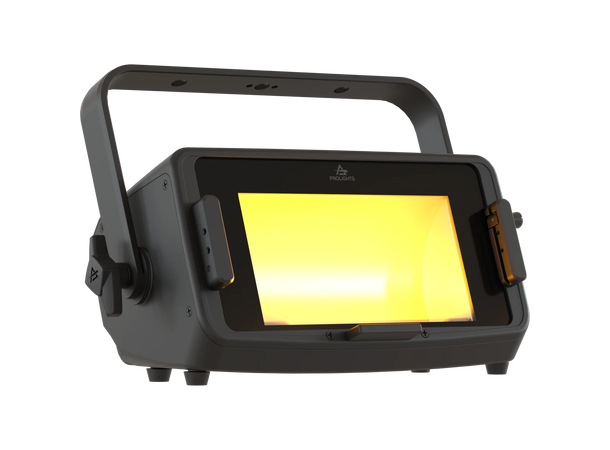

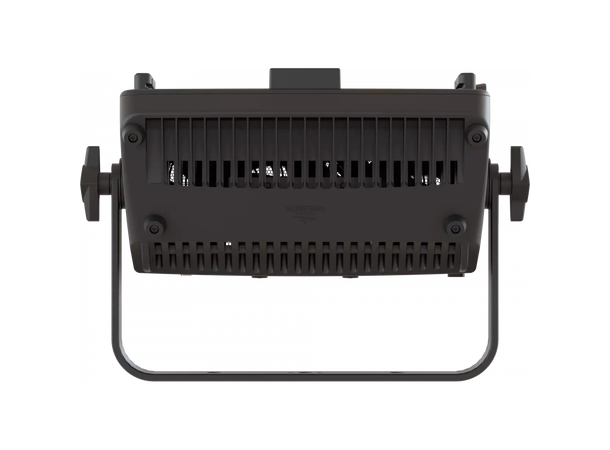

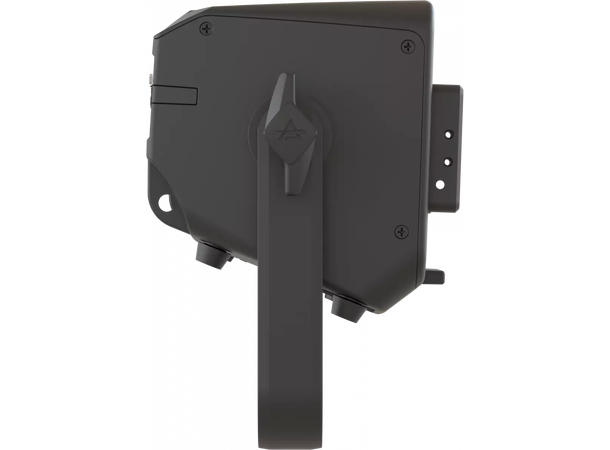

IP65 300W Full Colour RGB+WarmWhite asymmetric LED floodlight
The EclExpo Flood300 IP is an IP65 high power LED Floodlight, designed for indoor and outdoor installations a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.
Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.
The EclExpo Flood300 IP is available in two source variants:
- The EclExpo Flood300 IP FC has a calibrated 300W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours;
- The EclExpo Flood300 IP VW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9.
This unit is incredibly user-friendly, using remote control via DMX and RDM, on-board W-DMX + CRMX or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.
Its unique design and performance set a new standard for outdoor exhibition floodlights.
Technical specifications
LIGHT SOURCE
- Source: 300W RGB + Warm White LED
- Luminous flux: 13'865 @3.200 K
- Luminous flux: 13'607 @5.600 K
- Lux: 202lx @5 m 3.200K
- Lux: 195lx @5 m 5.600 K
- CRI: 93,2@5'600K
- R9: 97,3 @5'600K
- TLCI: 92 @5'600K
- TM30 Rf: 90,6 @5'600K
- TM30 Rg: 104,9 @5'600K
- Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Optics: asymmetrical beam reflector in pure aluminium 99,6%
- Beam angle: (H) 100° x (V) 60°
- Additional optics: 5° smooth filter on-board
COLOUR SYSTEM
- Colour mixing: RGB + Warm White
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.800 K - 10.000K
- Colour wheel: built-in white presets
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Static mode: selection of static dimmer, colors and color temperature
- Manual mode: manual adjustment of intensity, CT, colour correction from knob
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast magnesium body
- Body colour: RAL 9004
- Other: see available accessories
CONTROL
- Protocols: DMX512, RDM, CRMX
- Stand Alone: 2 rotatory knobs
- DMX channels: 1/2/5/9/10/12/18channel
- Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX
- (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 310W
- Standby power: 3,2 W
- Output (at 230V): 7 units on a single power line
- Power factor: > 0,97
PHYSICAL
- IP rating: IP65 for temporary outdoor application, not for fixed installations
- Cooling: active, silent operation
- Suspension and fixing: bracket for hanging and positioning
- Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 401x256x225mm / 15.79''x10.08''x8.86''
- Weight: 5,9kg / 13.01lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
- 1 x ECLEXPOFL300IPFC
- 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
- User Manual
