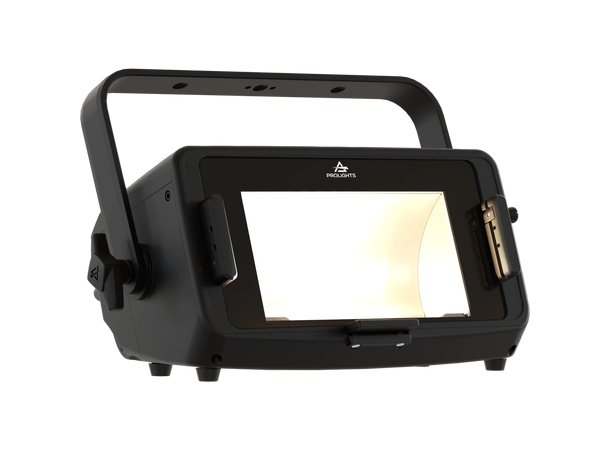

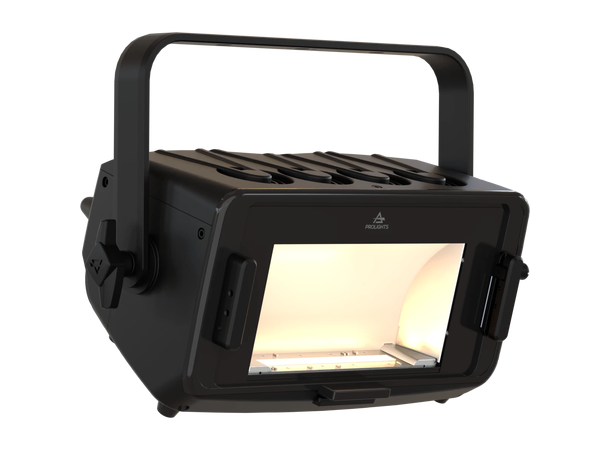

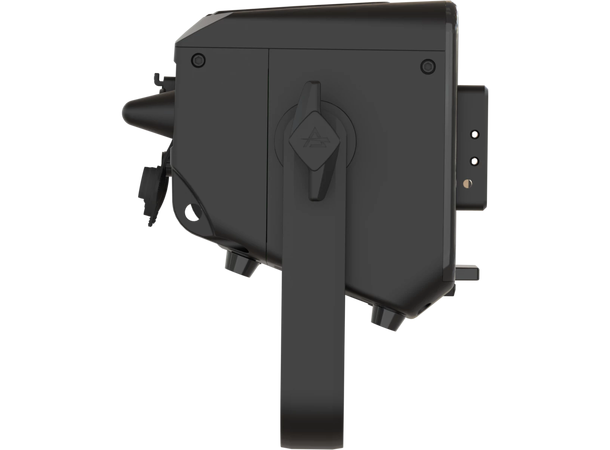

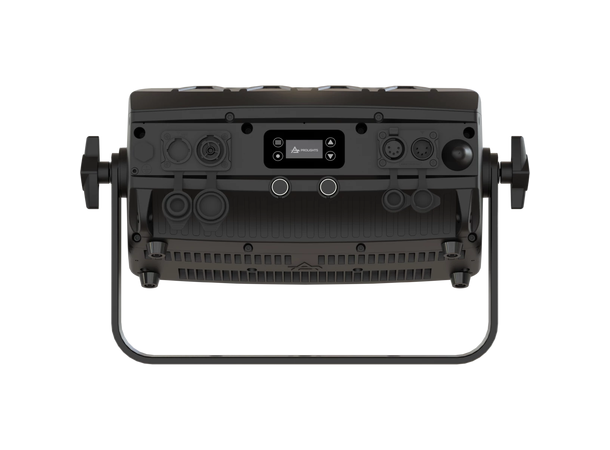

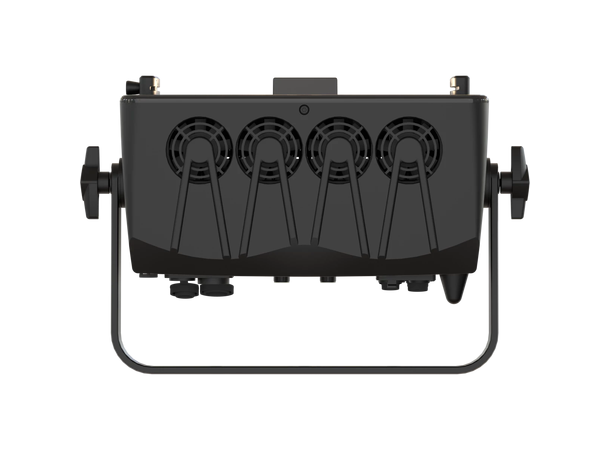

PROLIGHTS ECLEXPOFL300IPVWB Floodlight

IP65 300W asymmetric LED floodlight, with Variable White CCT 2,700K - 6,500K

The EclExpo Flood300 IP is an IP65 high power LED Floodlight, designed for indoor and outdoor installations, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

The EclExpo Flood300 IP is available in two source variants:

- The EclExpo Flood300 IP FC has a calibrated 300W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours;

- The EclExpo Flood300 IP VW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9.

This unit is incredibly user-friendly, using remote control via DMX and RDM, on-board W-DMX + CRMX or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for outdoor exhibition floodlights.

Technical specifications

LIGHT SOURCE

• Source: 300W Variable White LED
• CCT: 2.700 K - 6.500
• Luminous flux: @2.700K 12'235 lm; @6.500K 15'961 lm; @full 20'291
• Lux: @2.700K 124 lx; @6.500K 163 lx; @full 207lx @5 m
• CRI: 96,1 @2.700 K; 93,2 @6.500 K; 92,6 @full
• R9: 97 @2.700 K; 80,2 @6.500 K; 73,2 @full
• TLCI: 97 @2.700 K; 94 @6.500 K; 98 @full
• TM30 Rf: > 93,9 @2.700 K; > 88,9 @6.500 K; > 91,1 @full
• TM30 Rg: < 101,2 @2.700 K; < 99,5 @6.500 K; < 101,9 @full
• Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)

• Optics: asymmetrical beam reflector in pure aluminium 99,6%
• Beam angle: (H) 100° x (V) 60°

• Colour mixing: tunable white
• CCT: CCT control through dedicated DMX channel
• White presets: 2.700 K - 6.500K
• Colour wheel: built-in white presets

• Control Resolution: 16-bit dimmer
• Static mode: selection of static dimmer and color temperature
• Manual mode: manual adjustment of intensity and CT from knob
• Auto mode: built-in programs with execution speed adjustment

• Body: sturdy die-cast magnesium body
• Body colour: RAL 9004
• Other: see available accessories

• Protocols: DMX512, RDM, CRMX
• Stand Alone: 2 rotatory knobs
• DMX channels: 1 / 2 / 3 / 5 / 11channel
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX
• (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• Selectable PWM: 600 ~ 25.000 Hz

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 310W
• Standby power: 3,2 W
• Output (at 230V): 8 units on a single power line
• Power factor: > 0,97

• IP rating: IP65 for temporary outdoor application, not for fixed installations
• Cooling: active, silent operation
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 401x256x225mm / 15.79''x10.08''x8.86''
• Weight: 5,9kg / 13.01lbs

• Certifications / Approvals: CE, RCM

• 1 x ECLEXPOFL300IPVW
• 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
• User Manual
