NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

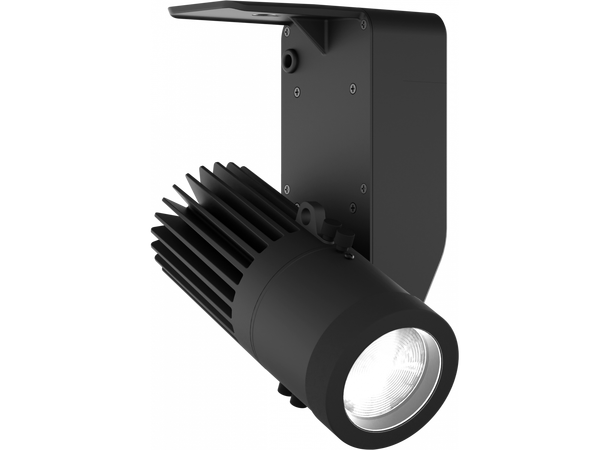

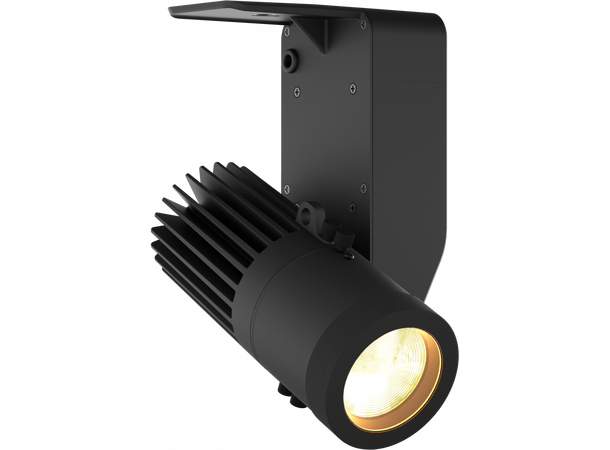

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application.
The EclDisplay DAT can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control. The EclDisplay DAT includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.
Features:Data control through RDM, DMX, DALI Type 6 and local knob dimming
25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
Multiple lens options: zoomable profile or wash optics
LIGHT SOURCESource:
25
W
White COB LED
Luminous flux:
(2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676
lm
@full
Luminous flux:
(4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
Lux:
(2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241
lx
@5 m full
Lux:
(4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256
lx
@3 m full
CRI:
90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
TLCI:
87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
TM30 Rf:
> 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
TM30 Rg:
< 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
Source life expectancy:
> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICSZoom:
(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 20° ~ 40
°
Other:
360° lens rotation - optional 360° rotating barndoors and gel frame holder
Other:

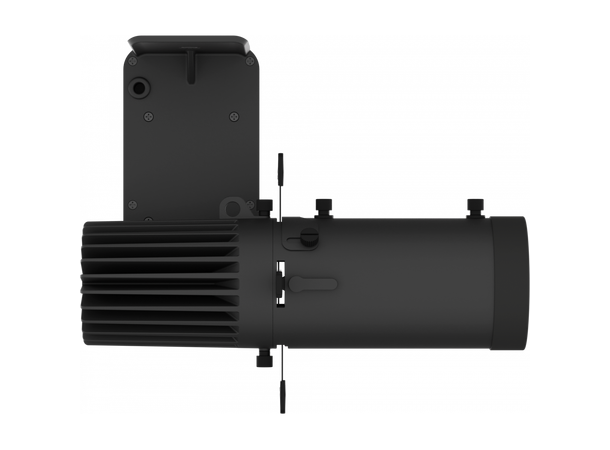

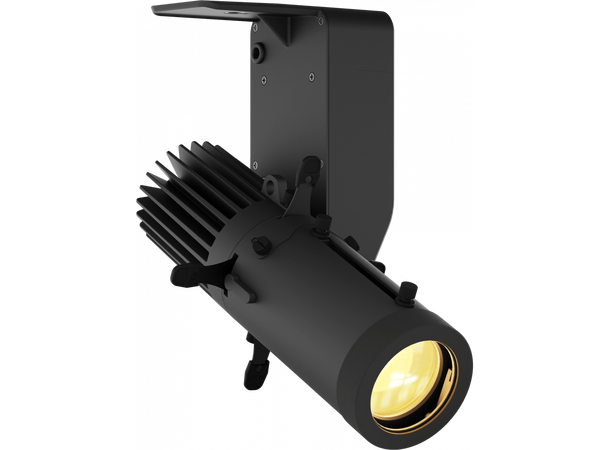

(profile lens) shutter blades lockable
Other:
(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
DYNAMIC EFFECTSControl Resolution:
16bit dimmer
Static mode:
selection of static dimmer
Manual mode:
manual adjustment of dimmer and strobe
Auto mode:
built-in programs with execution speed adjustment
CONTROLProtocols:
Local Knob, DMX, DALI Type6, RDM
DMX channels:
1 / 2 / 3 / 4
channel
RDM:
RDM for remote monitoring and settings
Firmware upgrade:
yes, via USB - DMX interface (UPBOX1) not included
ELECTRICALMains power supply:
100-240V - 50/60Hz
Max power consumption:
33
W
Power factor:
> 0,95
