NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

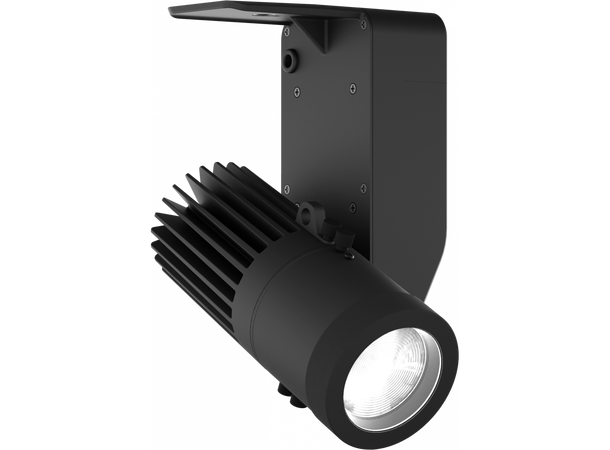

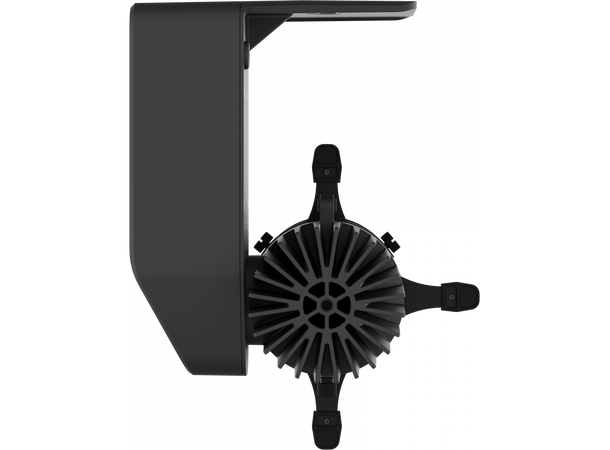

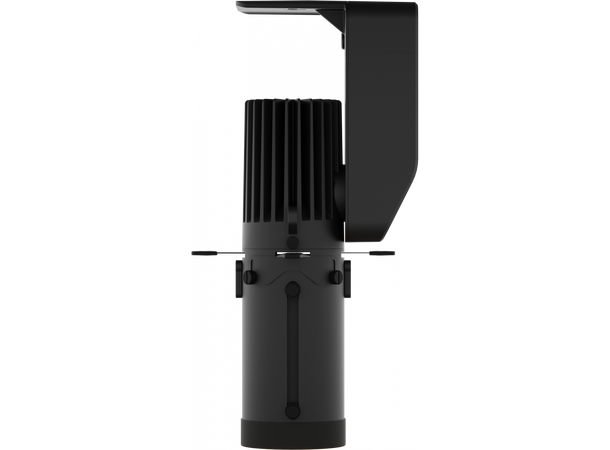

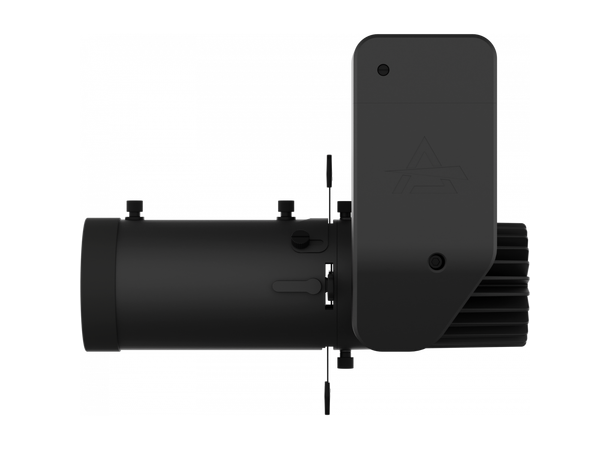

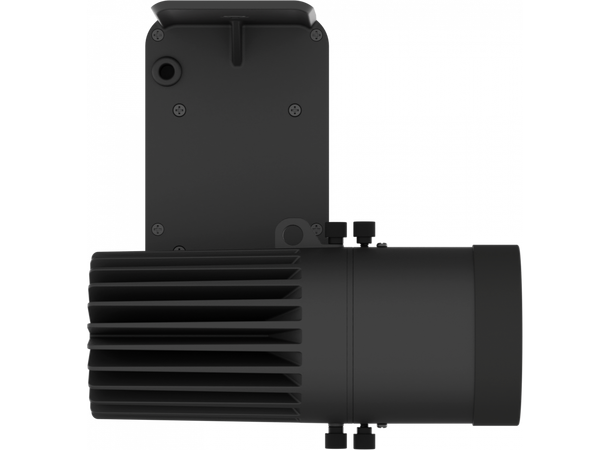

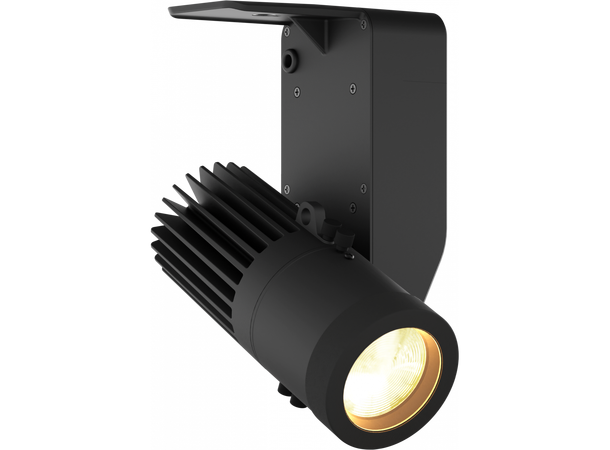

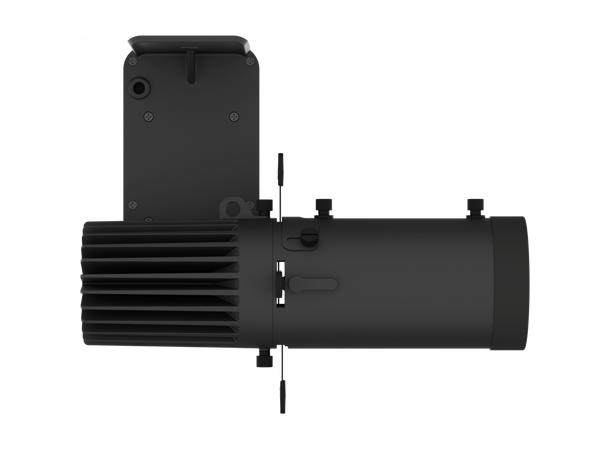

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.
The EclDisplay DATFC can be set and addressed through RDM, featuring a broad set of on-board input control options: DMX, DALI Type 8, local knob dimming control. The EclDisplay DATFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.
Features:Universal control through RDM, DMX, DALI Type 8 and local knob dimming
40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
Multiple lens options: zoomable profile or wash optics
LIGHT SOURCESource:
40
W
RGB + Warm White LED
Luminous flux:
(profile - 20°) 366 lm - (profile - 40°) 325 lm; (wash 2550 - min) 308 lm - (wash 2550 - max) 407 lm; (wash 1530 - min) 309 lm - (wash 1530 - max) 343
lm
@full
Lux:
(profile - 20°) 194 lx - (profile - 40°) 42 lx; (wash 2550 - min) 49 lx - (wash 2550 - max) 20 lx; (wash 1530 - min) 119 lx - (wash 1530 - max) 58
lx
@5 m full
Source life expectancy:
> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICSZoom:
(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 20° ~ 40
°
Other:
360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
Other:
(profile lens) shutter blades lockable
Other:
(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
DYNAMIC EFFECTSControl Resolution:
16bit dimmer, colours
Static mode:
selection of static colour
Manual mode:
manual adjustment of colour
Auto mode:
built-in programs with execution speed adjustment
CONTROLProtocols:
Local Knob, DMX, DALI Type8, RDM
DMX channels:
5 / 6 / 15
channel
RDM:
RDM for remote monitoring and settings
Firmware upgrade:
yes, via USB - DMX interface (UPBOX1) not included
ELECTRICALMains power supply:
100-240V - 50/60Hz
Max power consumption:
48
W
Power factor:
> 0,95
