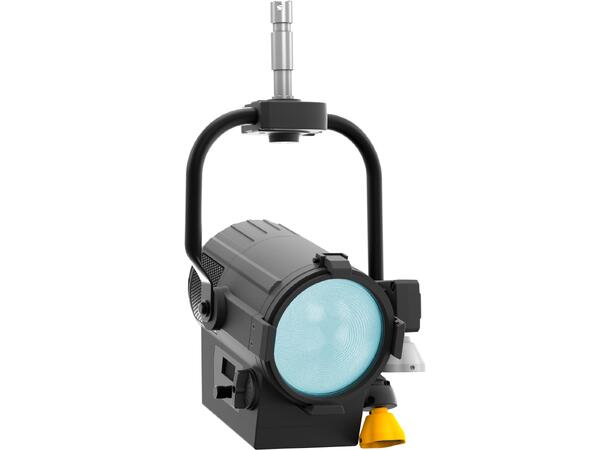

EclFresnel JrP is the LED replacement for a standard tungsten 650 W Fresnel. Featuring the output characteristics of the traditional Fresnel, with beam control from functional barn doors and a powerful source that focuses on outstanding colour rendering. The EclFresnel JrP adds all the advantages of LED to the Fresnel.
Features:
TU (3.000 K) and DY (5.600 K) versions available both with HD dimming
Fresnel lens options with 16° to 57° zoom range
Silent operation for studio and stage use
Battery ready, compatible with industry standard external batteries (optional)
LIGHT SOURCE
Source: 70W high-power white LED
CCT: (TU) 3.000 K - (DY) 5.600K
Luminous flux: (TU) (16°) 2'859 lm; (57°) 4'631lm @full
Luminous flux: (DY) (16°) 3'656 lm ; (57°) 5'911 lm @ full
Lux: TU (16°) 1'293 lx - TU (57°) 205lx @5 m full
Lux: DY (16°) 1'624 lx - (57°) 254lx @5 m full
CRI: (TU) >97; (DY) >90
R9: (TU) >95; (DY) >53
TLCI: (TU) >97; (DY) >92
TM30 Rf: (TU) >94; (DY) >88
TM30 Rg: (TU) <103; (DY) >97
Source life expectancy: > 50.000 h
OPTICS
Zoom: 16° - 57° half peak angle
Lens diameter: 6'' - 150mm
Lens type: fresnel zoom lens
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjust of dimmer throught menu and knob
Auto mode: built-in programs with execution speed adjustment
BODY
Hardware on-board: filter frame, 8 doors barndoor, spigot
Pan angle: 360° with manual regulation
Tilt angle: 340° with manual regulation
Body: sturdy die-cast aluminium body
Body colour: black
Other: Spigot 28 mm
CONTROL
Protocols: DMX512, RDM, rotatory knob
DMX channels: 1 / 2 - 1 / 2 - 2 / 3 / 5channel
RDM: RDM ready for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Other: 16bit control of dimmer and colour
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 Selectable dimming modes available
Strobe / shutter: 0 ~ 30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240 V – 50/60 Hz
Max power consumption: 90W
Output (at 230 V): 23 units on a single power line
Power factor: >0,95
BATTERY
Battery: 29,6V 4400 mAh external battery (optional ECLFRSJBP4)
Re-charge connection: connection for external battery throught XLR 4p
Other: Voltage range: 22,4V-33,6V
PHYSICAL
Cooling: active, silent operation
Sospension and fixing: bracket for hanging and positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 298x496x260mm
Weight: 7,5kg
