NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

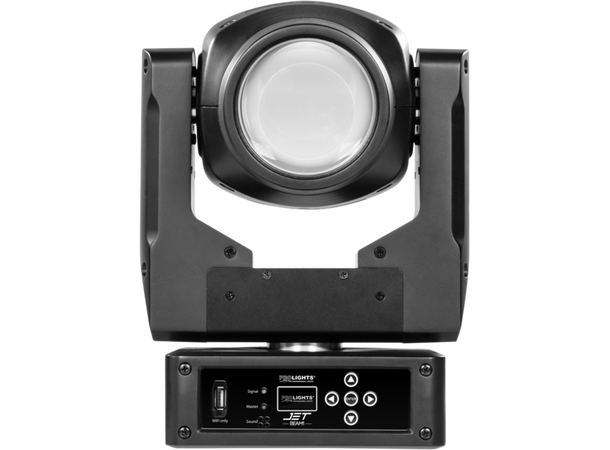

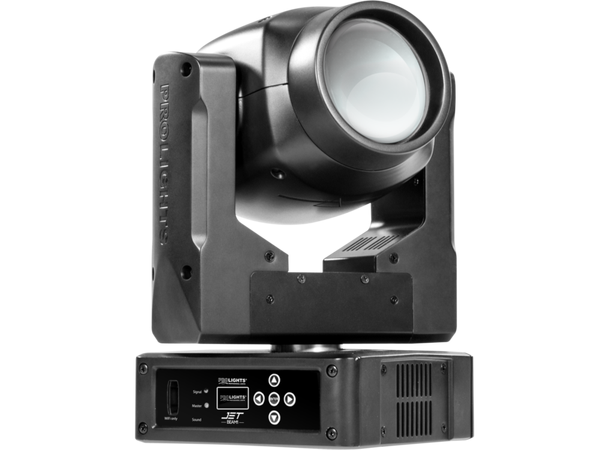

JETBEAM1 is an extremely compact LED beam luminaire designed to deliver the brightest beam from the smallest footprint possible. Ideal where space is an issue, the JETBEAM1 offers simply the best buy in its segment with a light output far exceeding expectations from its compact size and affordable pricepoint.
Features:Ultra efficient 14W white LED, with glass optics, to deliver an outstanding light level and crisp beam.
Compact size for use where space is an issue, including clubs, bars, and events.
14 colours and 8 facet prism for vast range of effect options.
LIGHT SOURCE
- Source: 14W High Power White LED
- CT: 6200K
- CRI: 73Ra
- Luminous Flux: 577lm
- Lux: 50000lux @3m
- Lux: 4600lux @10m
- Source Life Expectancy: >30.000 h
OPTICS
- Beam Angle: 2.5°
- Field Angle: °
- Lens Diameter: 85mm
- Lens Type: HQ glass lens optics
COLOR SYSTEM
- Color Wheel: 14 dichroic filters+Open
DYNAMIC EFFECTS
- Circular Prism: 8f with bi-directional rotation, Indexing
- Auto Mode: Built-in programs with execution speed adjustment
- Sound Mode: Music activation through internal microphone, sensitivity contr.
BODY
- Pan Angle: 540°
- Tilt Angle: 270°
- Pan/Tilt Resolution: bit 8/16 bit
- Feedback: Automatic repositioning after accidental movement
- Body: Aluminium structure with hi-resistance polycarbonate cover
- Body Color: Black, White finishing available
CONTROL
- Protocols: DMX512, RDM
- DMX Channels: 8/10ch
- RDM: RDM ready for fixture remote monitor and settings
- Display: Black OLED high resolution display
- Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
- Dimmer: Linear 0~100% electronic dimmer
- Strobe/Shutter: 0~30 Hz, electronic
- Operating Temperature: -10° ~ +45°
- Flicker: Flicker free operation
ELECTRICAL
- Power Supply: 100-240V \u2013 50/60Hz
- Power Consumption (at 230V): 31.9W
- Power Consumption (at 120V): 32.3W
- Output (at 230V): 52 units on a single power line
- Output (at 120V): 27 units on a single power line
PHYSICAL
- Signal Connection: 5p in/out
- Power Connection: PowerCON in/out
- USB: USB port for USB Wi-Fi receiver (optional)
- IP: 20
- Cooling: Forced air with low noise fan
- Suspension And Fixing: Any position with "quick-lock" omega brackets
- Dimensions (WxHxD): 220x343x170mm
- Weight: 5kg
