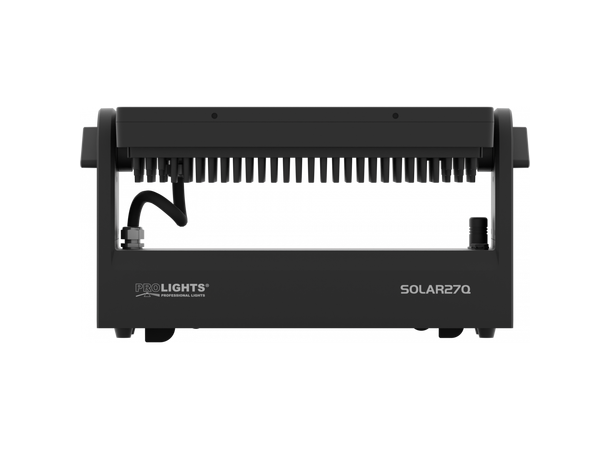

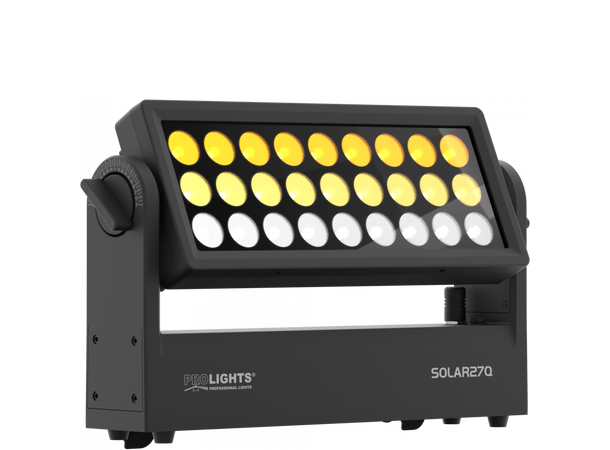

Solar 27Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 10'832 lumens. Equipped with 27x10 W RGBW / FC LEDs, delivering superior colour mixing. Featuring a slim size as well as the multiple interchangeable optics through magnets, including asymmetrical filters which, all together, make the Solar 27Q an incredibly flexible device for indoor use and outdoor. Whilst highly-powerful, the Solar 27Q also benefits from being silent.
Features:
27x10 W RGBW / FC LEDs, delivering 10'832 lumens
Compact form factor and fan-free
Wireless DMX on-board
LIGHT SOURCE
Source: 27x10W RGBW / FC LEDs
CRI: 71,8
Luminous flux: @FULL 10'832 lm - with included filter 6'987lm
Lux: @FULL (25°) 6'133 lx - with included filter 1'027lx @3 m full
Lux: @FULL (25°) 2.208 lx - with included filter 370lx @5 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 25° - with included filter 45°
Field angle: 39° - with included filter 69°
Additional optics: 10° / 15° / 45° / 40° filter / 10x60° filter / 30x60° filter
Other: magnetic filter included to achieve 45° (60° filter), barn door not included
COLOUR SYSTEM
Colour mixing: RGBW / FC
CTC: CTC control through dedicated DMX channel
Colour wheel: virtual colour wheel with presets
DYNAMIC EFFECTS
FX generator: section effect with 3 horizontal individually select and control sections
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Hardware on-board: magnetic filter frame with 45° filter

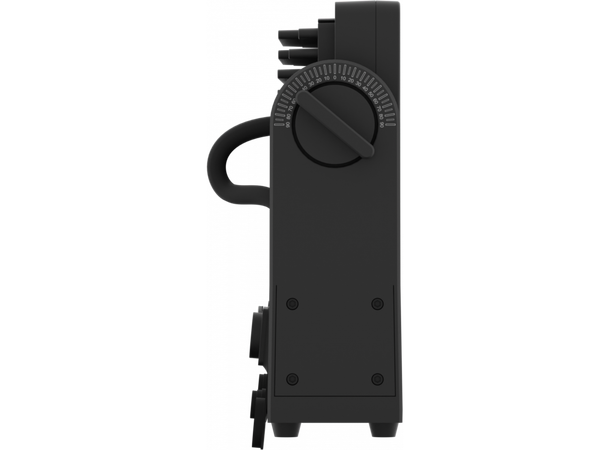

Tilt angle: 0 - 150° with manual regulation
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512, RDM, W-DMX
DMX channels: 5 / 7 / 10 / 13 / 17channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED high resolution display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: different dimming curves available
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -20° ~ +50°
Flicker: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 268W
Power consumption (at 120 V): 275W
Output (at 230 V): 9 units on a single power line
Output (at 120 V): 5 units on a single power line
Power factor: 0,994
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: hanging bracket for floor positioning with "Quick-Lock" system

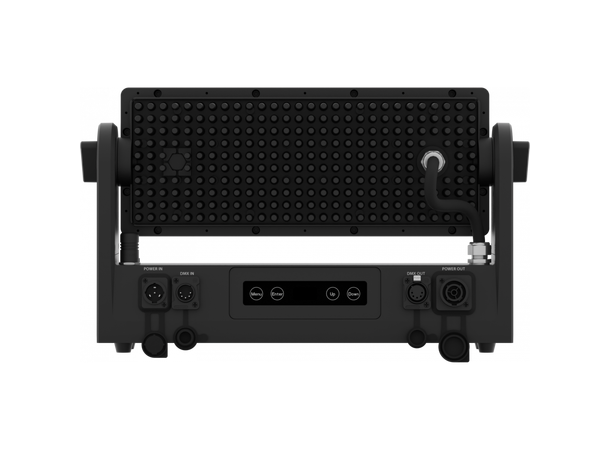

Signal connection: Seetronic XLR 5p IN/OUT connectors
Data connection: W-DMX receiver
Power connection: Seetronic powerCON waterproof IN/OUT connectors
IP rating: 65 for temporary outdoor application, not for fixed installation
Dimensions (WxHxD): 454x269x83mm
Weight: 9kg
