NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

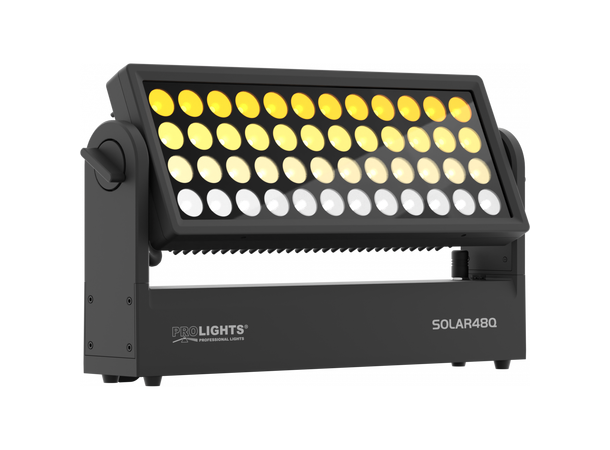

SOLAR48Q is a compact fan-free outdoor wash light featuring an
outstanding brightness of 22.760 lumens. Equipped with 48 x 10W
RGBW full-colour LEDs all delivering superior colour mixing. Featuring
a slimline styling, multiple interchangeable optics through
magnets, asymmetrical filters which combined, make the SOLAR48Q
an incredibly flexible device for indoor and outdoor use.
Whilst highly-powerful, the SOLAR48Q is also completely silent.

FEATURES

• 48x10W RGBW full colour LED delivering 22.760 lumens
• Compact form factor and fan-free
• Wireless DMX onboard

TECHNICAL SPECIFICATIONS

LIGHT SOURCE
• Source: 48x10W RGBW/FC LEDs
• Luminous flux: 22760lm
• Lux: (25°) 14900lux @3m full

OPTICS
• Beam angle: 25° - With included filter 45°
• Additional optics: 10° / 15° / 45° / 40° filter / 10X60° filter /
30X60° filter

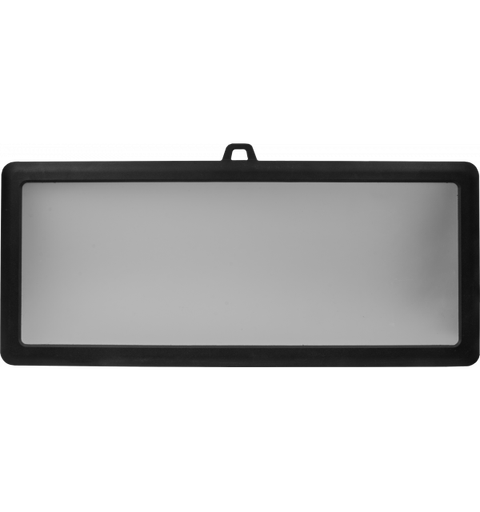

• Other: Magnetic filter included to achieve 45° (60° filter), barn
door not included

COLOUR SYSTEM
• Colour mixing: RGBW/FC
• CTC: CTC control through independent DMX channel
• Colour wheel: virtual colour wheel with presets

DYNAMIC EFFECTS
• FX generator: section effect with 4 horizontal individually select
and control sections
BODY
• Tilt angle: 0-150° manual
CONTROL
• Protocols: DMX512, RDM, W-DMX
• DMX channels: 5 / 7 / 10 / 17 / 22channel
• W-DMX: included, wireless solution receiver

ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1 - 30 Hz, electronic
• Selectable PWM: 600~25K Hz

ELECTRICAL
• Power consumption (at 230V): 521W
• Output (at 230V): 6 units on a single power line

PHYSICAL
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Data connection: W-DMX receiver
• Power connection: Seetronic powerCON waterproof IN/OUT
connectors
• IP rating: 65 for temporary outdoor application, not for fixed
installation
• Dimensions (WxHxD): 563x93x314mm
• Weight: 15.5kg
