NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

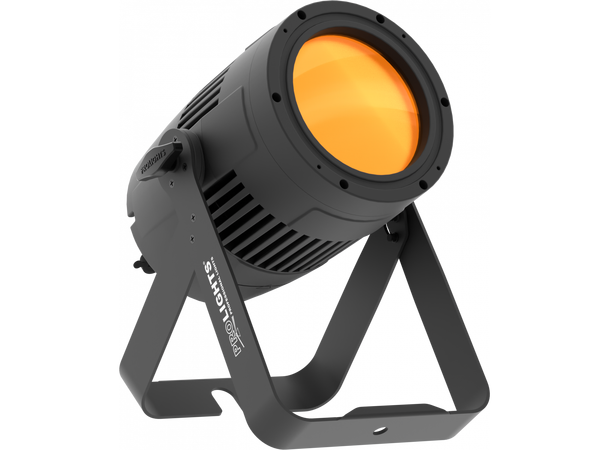

StudioCob PlusTW is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.
Features:
IP65 rated connectors for easy use both indoor and outdoor
165 W Tunable White COB LED source with HD dimming and high CRI

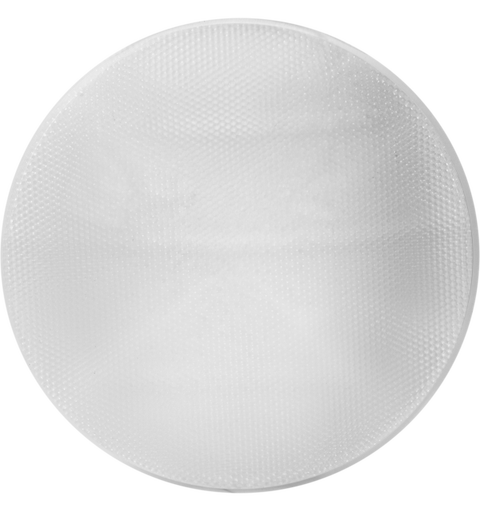

Flexible lens options of 18° - 38° - 60°
LIGHT SOURCE
Source: 165W Tunable White LED
CCT: WW 3.000 K - CW 6.000 K - ALL 4300K
CRI: WW / CW > 95
Luminous flux: (18°) 5'741 - (38°) 5'383lm

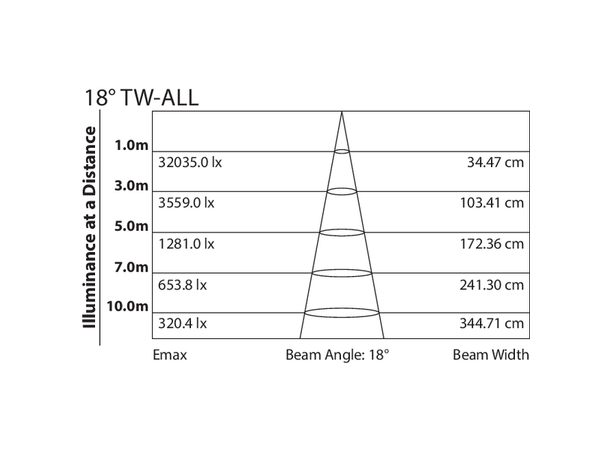

Lux: (18°) WW 1'537 lx - CW 2'208 lx - ALL 3'559lx @3 m
Lux: (38°) WW 473,2lx - CW 576,1lx - ALL 1'001lx @3 m
Source life expectancy: > 30.000 h
OPTICS
Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
Field angle: (on-board) 36° - (inc) 63°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: flood (without lens) - 38° (inc)
COLOUR SYSTEM
Colour mixing: tunable white
CTC: CTC control through dedicated DMX channel
White presets: 3.000 K ~ 6.000K
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black, white finishing available
CONTROL
Protocols: DMX512, RDM
DMX channels: 2 / 4 / 7channel
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 28 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -20° ~ +45°
Flicker: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 140W
Power consumption (at 120 V): 142,8W
Output (at 230 V): 12 units on a single power line
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

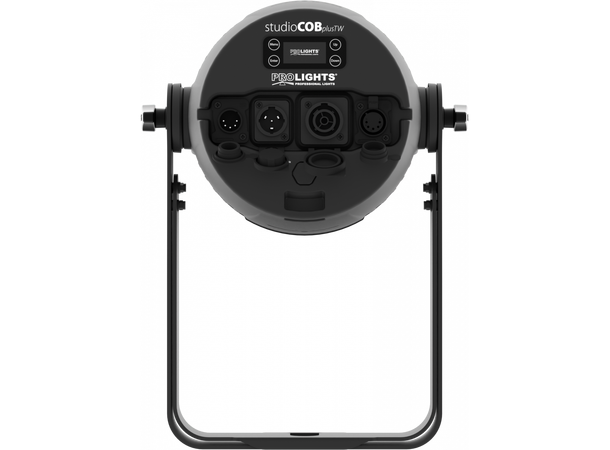

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
IP rating: 65 for temporary outdoor application, not for fixed installation

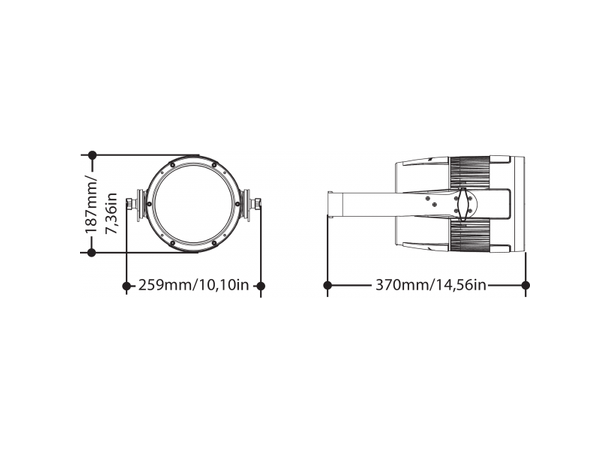

Dimensions (WxHxD): 259x187x370mm
Weight: 4,9kg
