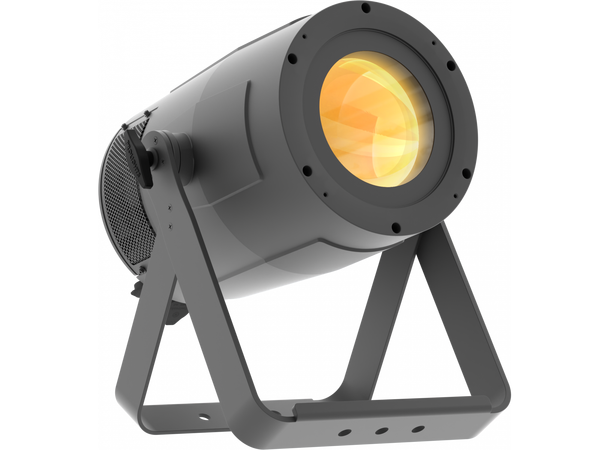

PIXIEZOOMXB is a super bright single-source IP rated LED PAR featuring a 6°- 45° linear zoom and a fully homogenised output. PIXIEZOOMXB is equipped with a proprietary 280W RGB + Warm White LED module which delivers a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. PIXIEZOOMXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being IP rated and offering a wide zoom range, the PIXIEZOOMXB offers unprecedented flexibility and is a truly indispensable fixture for every rental house.
FEATURES:
280W proprietary RGB + warm white LED delivering high CRI, TLCI, TM30 values
6° to 45° linear zoom with superior evenness
IP65 (events) and WDMX onboard
LIGHT SOURCE
Source: 280W RGB + warm white
CT: 6500K
CRI: > 92
R9: > 94
Luminous flux: (6°) 3670 lm - (45°) 3795lm
Lux: (6°) 29900 lux - (45°) 1590lux @3m full
Lux: (6°) 10764 lux - (45°) 572lux @5m full
Source life expectancy: 70000
Other: TM-30-15RF/RG: 90/99 - TLCI: >85
OPTICS
Zoom: 6° - 45° motorised linear zoom
Field angle: 11° - 58°
Lens diameter: 125mm
Lens type: high-quality glass lens optics
COLOUR SYSTEM
Colour mixing: RGB+Warm White
CTC: CTC control through independent DMX channel
White presets: 2800 - 10000K
Colour wheel: virtual colour wheel with presets
Macros: several pre-build macros with adjustable speed
DYNAMIC EFFECTS
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Hardware on-board: on board mechanics for rigging to the ceiling
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512, RDM, W-DMX
DMX channels: 5 / 7 / 11channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED high resolution display
Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0~100% electronic dimmer
Dimmer curves: different dimming curves available
Strobe / shutter: 1 - 30 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -20° ~ +45°
Flicker: flicker free frequency with adjustable PWM
Selectable PWM: 600~25K Hz
ELECTRICAL
Power supply: 100-240V – 50/60Hz
Power consumption (at 230V): 271W
Power consumption (at 120V): 276W
Output (at 230V): 8 units on a single power line
Output (at 120V): 4 units on a single power line
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Sospension and fixing: hanging bracket suitable for safe hanging and positioning

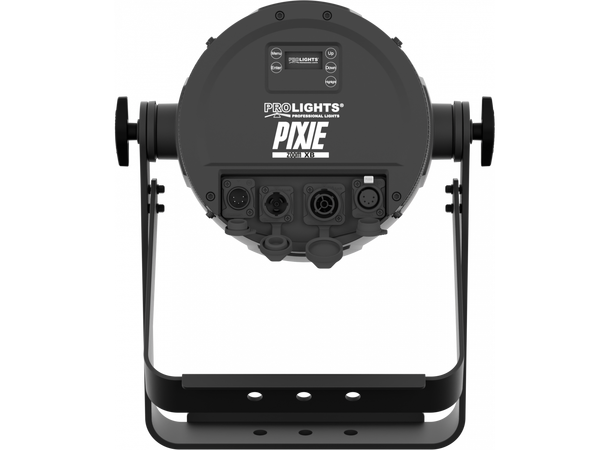

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
IP rating: 65 for temporary outdoor application, not for fixed installation
Dimensions (WxHxD): 467x335x418mm
Weight: 12kg
