NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

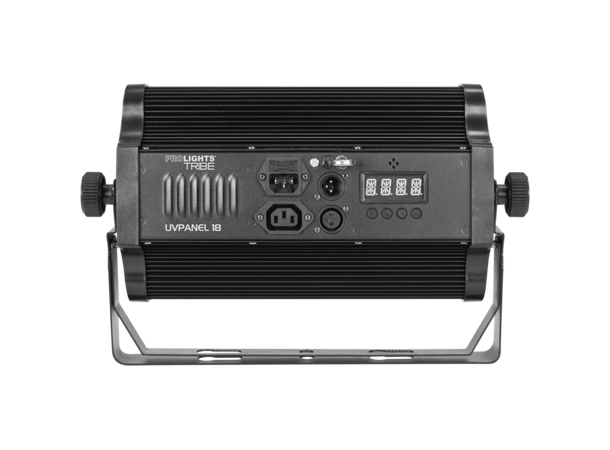

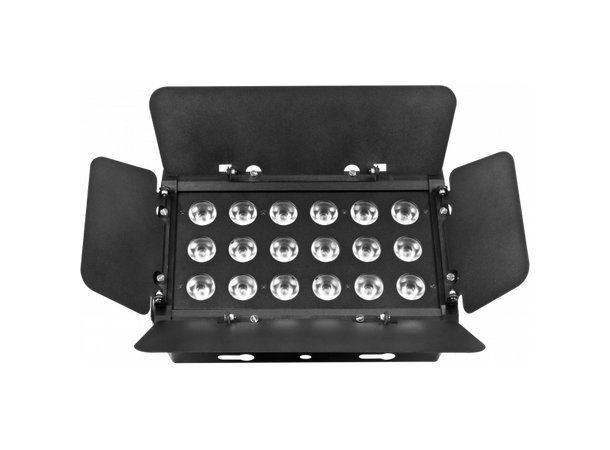

UVPANEL18 is a high-power UV LED batten equipped with 18 LED of 3 W each, conceived to replace the traditional fixtures based on UV lamps. UVPANEL18 is a flexible and user-friendly projector, controllable in DMX or through the auto and master/slave modes.
Features:
18x3 W UV LED
Wavelength: 405 nm
Flicker-free operations
Average power consumption: 45 W
LIGHT SOURCE
Source: 18x3W UV LEDs
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 15°
Field angle: 16°
DYNAMIC EFFECTS
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
Sound mode: music activation through internal microphone and sensitivity control
BODY
Body: sturdy aluminum profile
Body colour: black
CONTROL
Protocols: DMX512
DMX channels: 2 / 5channel
Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: 0° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 48,6W
Power consumption (at 120 V): 49,4W
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: XLR 3p IN/OUT connectors
Power connection: IEC IN/OUT connectors
IP rating: 30
Dimensions (WxHxD): 389x197x187mm
Weight: 4,1kg
