PROLYTE S36PR Løftebrakett S36PR truss

Prolyte Produktnummer: ACC-36PR-LIFT-V1T

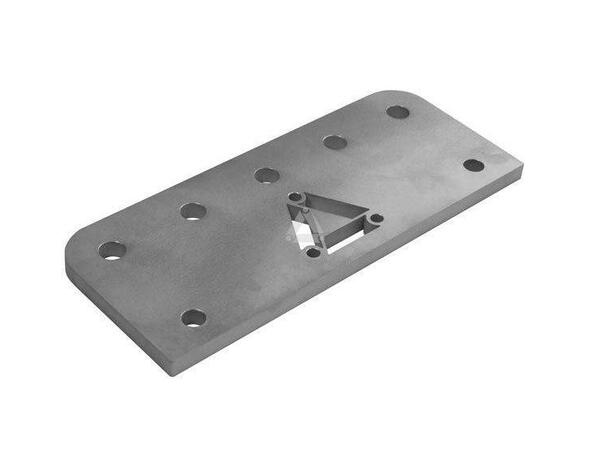

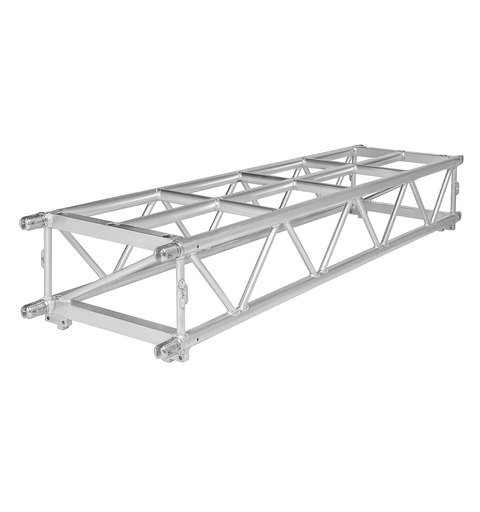

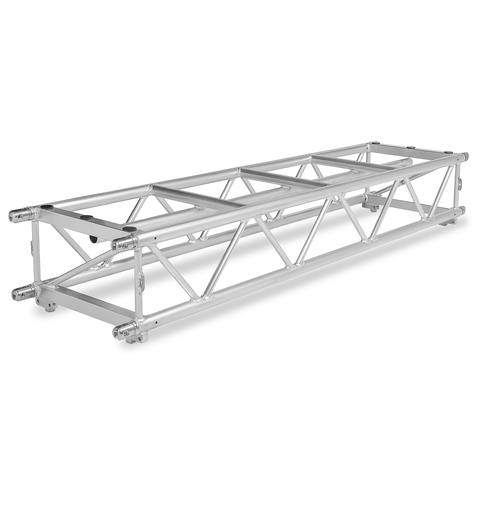

The S36PR PreRigTruss is constructed of main tubes (50 x 4 mm) and diagonals (25 x 3 mm). Equipped with a pivoting pin-fork connection system, the S36PRT truss is fast and easy to assemble. Designed as a pre-rig truss for moving heads, the truss has both fixed or flexible cross and linear braces on the topside to accommodate any type of luminaire. The trusses and dollies can be easily stacked for storage or transport. Check out S36PRF PreRigTruss and S36PRA PreRigTruss Due to high market demand, Prolyte has developed a lifting bracket for suspending the truss in a vertical orientation. This bracket makes suspension in a vertical orientation quite easy. The bracket has two drilled holes (17mm) at the bottom side, which meet the position of the fork connectors of the PreRigTruss. The bracket can be attached to the fork connectors with the standard 16mm locking pins. On the top side of the bracket are five drilled holes (20.5mm), which can take the bolt of a 3.25T shackle. Depending on the type and size of the loading you can choose the right positions to suspend the truss in a balanced 90 degrees vertical position. Each bracket has a WLL of 1 ton, which can be applied when the truss is in an exact 90dgr position as shown on the drawing. The bracket comes in plain aluminium, a black version (RAL9005) will be available on request.
