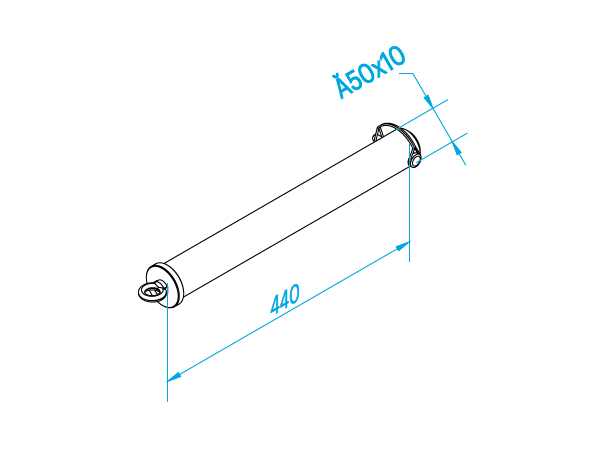

PROLYTE HT-Tårn Sikringsbjelke HT-DH-PIN

Prolyte Produktnummer: HT-DH-PIN
The HT tower is an upgrade on the MPT Tower, based on H30V truss sections and employs a new type of sleeve block that fits the 40 square series truss on all four sides by means of bolted CCS6 couplers (either male or female). In combination with an adapter plate, it is also possible to use the sleeve block with either H40R or H30V truss, to maintain full capacity of the truss. The HT sleeve module is a fully bolted structural element, making it much stronger and more precise than conventional welded versions. Compared to the current MPT sleeve block, the HT sleeve block is reduced in size and has the same measurements as the standard H40V box corner. The transfer of forces is optimised, which makes the element as strong as the truss is — creating a significant increase of for example cantilever loads. Also, a dedicated guywire attachment is integrated into the sleeve block. The sleeve block has on all 4 sides wire thread holes which are suitable to attach eye bolts which can take guywires to stabilize your system. Advantages HT-010 • Fully bolted sleeve block, making it stronger than welded versions. • Same size as the standard 40 series box corners. • Suitable for H40V truss. • Sleeve block with attachment points on four sides for eyebolts • Improved strength compared to the MPT sleeve module • Easy to use dead hang system. • Adapter plate available for other truss series (H30V and H40R).
