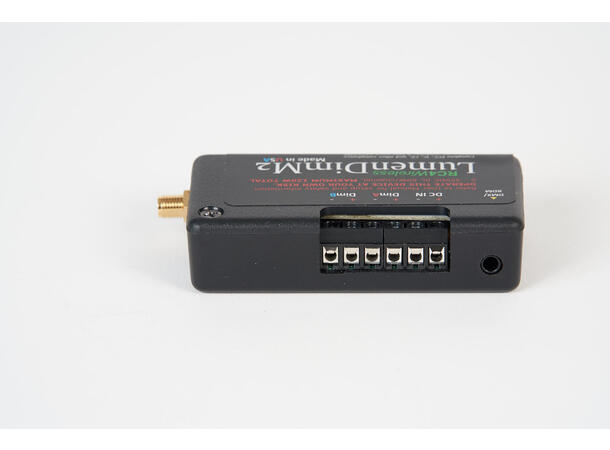

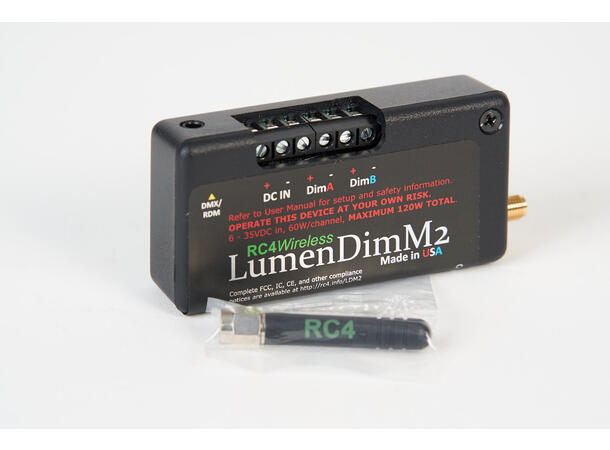

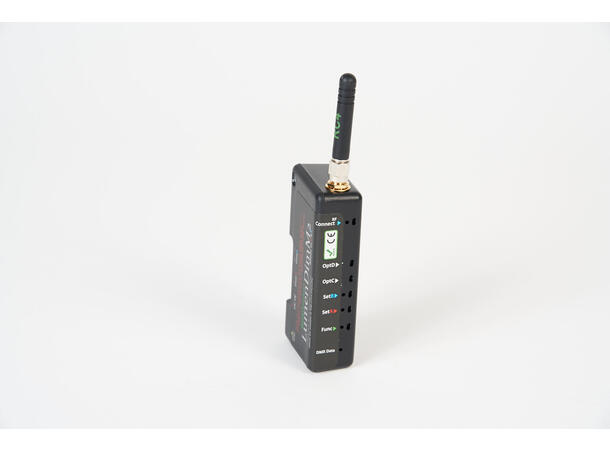

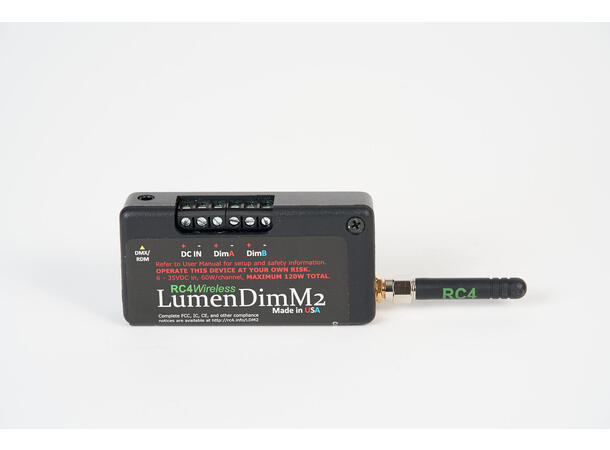

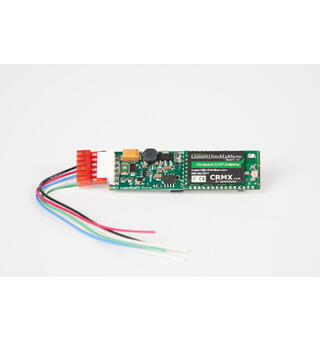

RC4 WIRELESS LUMENDIM M2 Dimmer

The RC4 Wireless LumenDimM2 is miniature 2-channel wireless DMX dimmer for LEDs, lamps, and motors for use in small props, costumes, and more on the CRMX platform.

• RC4 Flkr Effects Engine
• DMX data in and out
• RC4 HotPatch
• 16-bit dimming with multiple PWM frequencies
• High-efficiency 6V-35VDC voltage input range

Spesifications

• Dimensions:  3.14" x 1.57"  x  .787" (80mm x 40mm x 20mm)
• Weight: 2.10oz
• Power Input: 6VDC – 35VDC, 0.5W, screw terminals
• Dimmer Outputs: 2 low-voltage DC dimmers, screw terminals, 19-bit resolution PWM (524,00 steps)
• Output Power, per Dimmer: 10A non-continuous, 5A continuous
• Maximum Total Power Handling: 16A (limited by safety rating of input screw terminals)
• Multiple PWM frequencies: 77Hz (high power), 615Hz (flicker free), 5kHz (artifact free for video), 20kHz (noise free for audio), 40kHz (super-slow-motion video)
• Multiple Dimmer Curves: Non-Dim, Non-Dim Inverted, Linear, Linear Inverted, Inverse-Square-Law (ISL), ISL inverted, servo motor pulse clockwise (CW), servo motor pulse counter-clockwise (CCW), AC wave (ring telephone bells)
• DMX Input/Output: RC4 3.5mm mini, USITT DMX512/1990 data, non-standard port, connector adaptors available. RDM E1.20 and E1.37 (dimmer configuration) support
• Wireless DMX Protocol: LumenRadio CRMX
• RF Antenna: RP-SMA external, omnidirectional. Alternate antennas can be used for increased sensitivity and directionality
